SKU:8320658

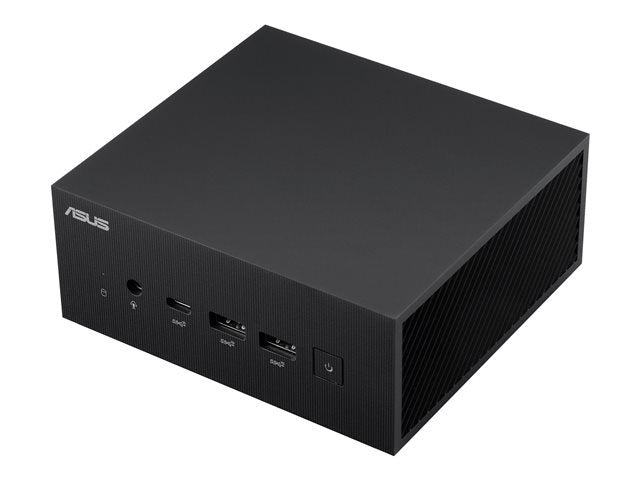

ASUS ExpertCenter PN64 B-S3120MD
ASUS ExpertCenter PN64 B-S3120MD
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
ASUS ExpertCenter PN64 is powered by the 12th Gen Intel Core CPU featuring a hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This advanced core design enables PN64 to process multiple tasks simultaneously in a efficient way.
Product Features
uperior computing performance: ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 model, PN64 offers more overall system performance, making it perfect for multitasking.
Superfast 2: 5 Gbps Ethernet. ASUS ExpertCenter PN64 features next-generation 2. 5GBASE-T technology for superfast 2. 5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.
Modern, space-saving design: Compact and stylish, ASUS ExpertCenter PN64 has a contemporary look that suits any home or office.
Ultra-realistic 8K visuals: ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that's 4x greater than 4K, or 16x that of traditional FHD output.
USB Power Delivery input: ASUS ExpertCenter PN64 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
4K resolution and quad display support: ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI ports, two DisplayPort over USB-C or other user-configurable ports, without any limitation on the combination used.
Configurable port: ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2. 5Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.
Padlock ring for security: The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.
VESA mount-lockable design: ASUS ExpertCenter PN64 can even be locked onto a VESA mount for additional security.
Main Specifications
General
| Type | PC barebone |
|---|---|
| Product Form Factor | Mini PC |
| Colour | Eco black |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x internal 2.5" |
|---|---|
| Slots | 1 M.2 Card |
| Interfaces | 2 x HDMI 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1.4 1 x headphones/microphone 3 x USB 3.2 Gen 2 2 x USB-C 3.2 Gen 2 |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year - pick-up and return |
|---|
RAM
| Installed Size | 0 GB |
|---|---|
| Effective Memory Speed | 4800 MHz |
| Rated Memory Speed | 4800 MHz |
| Slots | 2 (Total) / 2 (empty) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
Networking
| Wireless LAN Supported | Yes |
|---|---|
| Features | Dual stream (2x2) |
| Ethernet Ports | 2.5 Gigabit Ethernet |
| Ethernet Controller | Intel I225-V |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
Miscellaneous
| VESA Mounting Interface | Yes |
|---|---|
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
Power
| Installed Qty | 1 |
|---|---|
| Device Type | Power adapter |
| Power Provided | 90 Watt |
Storage Controller
| Type | 1 x SATA |
|---|---|
| Controller Interface Type | SATA 6Gb/s |
Cache Memory
| Installed Size | 12 MB |
|---|---|
| Cache Per Processor | 12 MB |
Optical Storage
| Type | No optical drive |
|---|
Operating System / Software
| OS Provided | No operating system |
|---|
Monitor
| Monitor Type | None. |
|---|
Graphics Controller
| Video Interfaces | HDMI, DisplayPort |
|---|---|
| Graphics Processor | Intel UHD Graphics |
Hard Drive
| Type | No HDD |
|---|
Dimensions & Weight
| Width | 12 cm |
|---|---|
| Height | 5.8 cm |
| Depth | 13 cm |
| Weight | 750 g |
Processor / Chipset
| CPU Qty | 1 |
|---|---|
| Max CPU Qty | 1 |
| Clock Speed | 1.5 GHz |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 10-core |
| Processor Main Features | Intel Smart Cache |
| CPU | Intel Core i3 (12th Gen) 1220P |
Sustainability Information
| EPEAT Compliant | EPEAT Silver |
|---|
