SKU:8173240

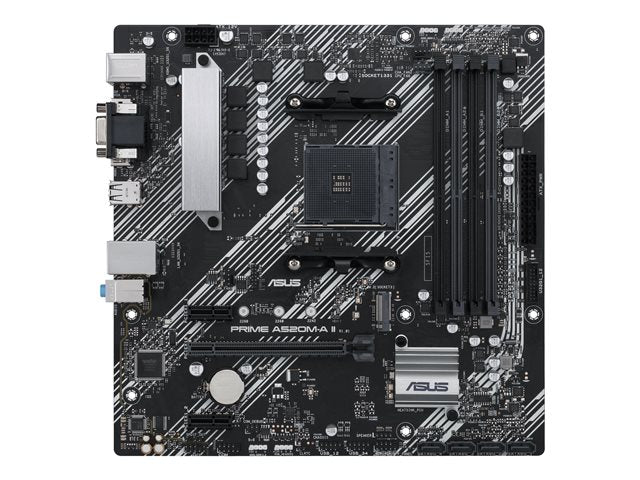

ASUS PRIME A520M-A II/CSM
ASUS PRIME A520M-A II/CSM
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
Product Features
ASUS Corporate Stable Model: ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express: ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Tune it your way: Comprehensive controls form the foundation of the ASUS Prime series. The Prime A520 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work - maximizing your productivity.
Cool to the core: PRIME A520M-A II is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
Build on a solid foundation: Prime A520 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
Achieve speed with onboard M: 2. M. 2 slot supports up to 2280 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3. 0 bandwidth. It's the perfect choice for an operating system or application drive, providing fast access to data.
Little things make a big difference: Prime A520 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customize your system to create a uniquely personal look.
Outstanding audio: Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
What's in the box:
- ASUS PRIME A520M-A II/CSM
- 2 x Serial ATA cable
- IO shield, M.2 screw package
- Software
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - micro ATX |
| Processor Socket | Socket AM4 |
| Chipset Type | AMD A520 |
| Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Expansion / Connectivity
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
|---|---|
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x SPDIF out - header 1 x audio - header 1 x serial - header 1 x speaker - header |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Interfaces | 1 x VGA 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack |
Miscellaneous
| Width | 24.4 cm |
|---|---|
| Depth | 24.4 cm |
| Cables Included | 2 x Serial ATA cable |
| Included Accessories | IO shield, M.2 screw package |
| Software Included | ASUS TurboV EVO Utility, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator, ASUS Fan Xpert 2+ |
Audio
| Compliant Standards | High Definition Audio |
|---|---|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887/ALC897 |
Features
| BIOS Type | AMI |
|---|---|
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Hardware Features | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, Lighting Control, overvoltage protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS Aura Sync, ASUS Control Center Express (ACC Express), VRM heatsink design |
LAN
| Network Interfaces | Gigabit Ethernet |
|---|
Supported RAM
| Supported RAM Integrity Check | ECC |
|---|---|
| Registered or Buffered | Unbuffered |
| Max Size | 128 GB |
| Features | Dual channel memory architecture |
| Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.) |
