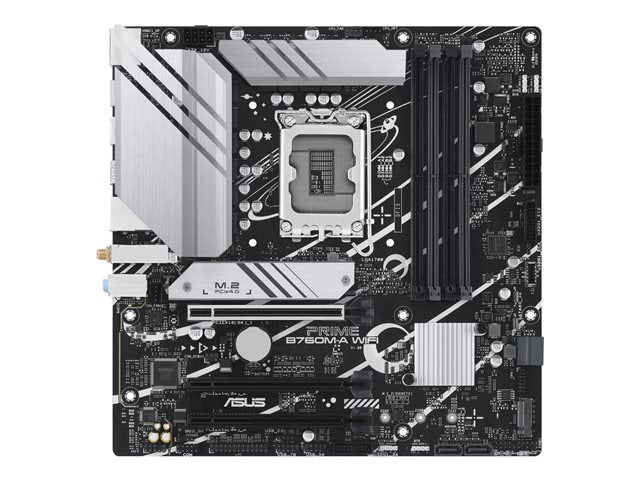

ASUS PRIME B760M-A WIFI
ASUS PRIME B760M-A WIFI
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Product Features
Improved flexibility: Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent control: ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
Advanced tuning for serious tweakers: An intuitive Advanced mode offered via UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
Quick and simple setup: EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time.
Excellent cooling: PRIME B760 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M: 2 heatsink. M. 2 heatsink wards off throttling that can occur with M. 2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal.
VRM heatsinks and thermal pads: VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chocks for better cooling performance.
Excellent performance: The PRIME B760 series is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
Effortless customization: PRIME B760 series adds nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.
Combined onboard features deliver elevated audio: Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
- ASUS PRIME B760M-A WIFI
- 2 x Serial ATA cable
- IO shield, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 screw package
- Software
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - micro ATX |
| Processor Socket | LGA1700 Socket |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Chipset Type | Intel B760 |
Expansion / Connectivity
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
|---|---|
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x PCIe 4.0 x16 (x1 mode) |
| Internal Interfaces | 5 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 1 - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header 1 x audio - header |
| Interfaces | 2 x HDMI 1 x DisplayPort 2 x USB 3.2 Gen 2 4 x USB 2.0 1 x PS/2 keyboard / mouse 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 2 x aerial |
Miscellaneous
| Width | 24.4 cm |
|---|---|
| Depth | 24.4 cm |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | DisplayPort 1.4 |
| Included Accessories | IO shield, 1 x M.2 rubber package, M.2 screw package, ASUS Wi-Fi moving aerial |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, MyAsus, Norton 360 Deluxe (60 days trial), WinRAR |
Audio
| Compliant Standards | High Definition Audio |
|---|---|
| Type | HD Audio (8-channel) |
Features
| BIOS Type | AMI |
|---|---|
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| BIOS Features | ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, UEFI BIOS |
| Hardware Features | ASUS OptiMem II, Preboot eXecution Environment (PXE), jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS ProCool, ASUS Aura Sync, ASUS EZ DIY, CrashFree BIOS 3, Windows 11 compatible |
LAN
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
|---|
Supported RAM
| Registered or Buffered | Unbuffered |
|---|---|
| Max Size | 128 GB |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR5 |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Bus Clock | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.) |
