SKU:9818610

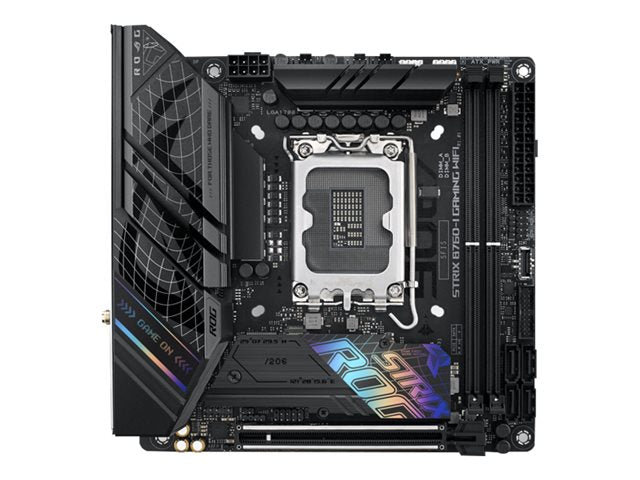

ASUS ROG STRIX B760-I GAMING WIFI
ASUS ROG STRIX B760-I GAMING WIFI
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency Wi-Fi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 13th Gen support thanks to its powerful VRM and thermal solution.
Product Features
All-round performance: Bulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5. 0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.
Leading connectivity: Massive throughput flows through the ROG Strix B760-I via advanced networking adapters and high-bandwidth USB connectors, allowing you to rip through games with no interference, and crystal-clear on-board audio keeps you immersed in the experience.
Play in style: The shrouds and PCB of the Strix B760-I pair well with most products from the diverse ROG ecosystem, all while making your build distinct with a dash of polychromatic contrast.
Software utilities: Customize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - mini ITX |
| Processor Socket | LGA1700 Socket |
| Compatible Processors | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Chipset Type | Intel B760 |
Expansion / Connectivity
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
|---|---|
| RAID Features | Intel Rapid Storage Technology |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
| Expansion Slots | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 3 x USB 2.0 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-in - mini-jack 2 x aerial 1 x audio line-out - mini-jack 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 2 x USB 2.0 - header 1 x audio - header 1 x SPDIF out - header |
Miscellaneous
| Width | 17 cm |
|---|---|
| Depth | 17 cm |
| Cables Included | 2 x Serial ATA cable 1 x USB 2.0 splitter cable 1 x panel cable |
| Included Accessories | ASUS Wi-Fi moving aerial, cable ties, 1 x M.2 rubber package, thermal pad for M.2 SSD, 2 x M.2 screw package, M.2 bracket, ROG key chain, STRIX stickers, ROG thank you card, panel cable |
| Software Included | ROG CPU-Z, Sonic Studio III, Sonic Radar III, Sonic Studio Virtual Mixer, Sonic Suite Companion, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, Armoury Crate, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR, ROG GameFirst VI |
Audio
| Type | HD Audio (8-channel) |
|---|---|
| Audio Codec | SupremeFX (S1220A) |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
Features
| BIOS Type | AMI |
|---|---|
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Hardware Features | Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, Savitech SV3H712 amplifier, audio jack detect technology, jack retasking, Preboot eXecution Environment (PXE), SupremeFX Shielding technology, Windows 11 compatible, CrashFree BIOS 3, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, ASUS EZ DIY, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, 8+1 Phase Power Design, 8 Layer PCB, Water Pump Header, DIY Friendly Design |
LAN
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
|---|
Supported RAM
| Registered or Buffered | Unbuffered |
|---|---|
| Max Size | 96 GB |
| Supported RAM Integrity Check | Non-ECC |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Technology | DDR5 |
| Bus Clock | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7466 MHz (O.C.), 7600 MHz (O.C.) |
