90MB1BG0-M0EAY0

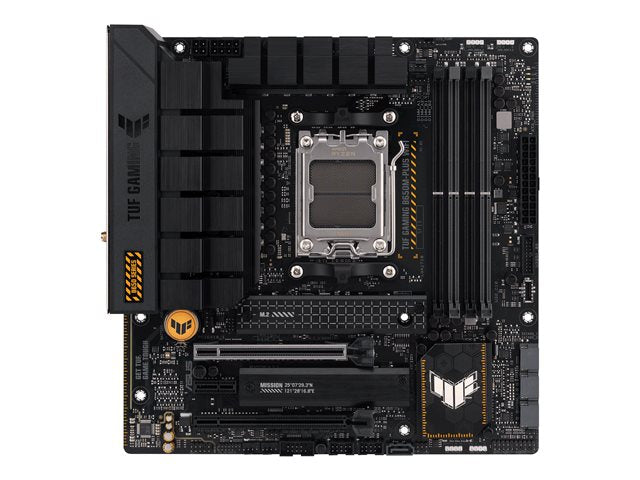

ASUS TUF Gaming B650M-Plus
ASUS TUF Gaming B650M-Plus
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The ASUS TUF Gaming B650M-Plus motherboard is designed to cater to the needs of gamers and PC enthusiasts seeking a reliable, high-performance foundation for their next build. This motherboard is compatible with Ryzen 7000 Series processors, ensuring that users can leverage high CPU technology for excellent gaming and multitasking performance. With support for DDR5 memory at speeds up to 6400 MHz (O.C.), it offers a significant bandwidth boost for data-intensive applications and gaming.
The motherboard also features dual M.2 slots, accommodating both PCIe 4.0 and 5.0, which allows for fast storage configurations that can significantly reduce load times. Connectivity is a strong suit of this motherboard, with a comprehensive array of ports including HDMI, DisplayPort, and USB-C 3.2 Gen 2x2, ensuring compatibility with a wide range of peripherals and displays.
For gamers looking to customize their setup, ASUS Aura Sync provides a vast spectrum of colors and effects to synchronize lighting across an ecosystem of compatible devices. The ASUS TUF Gaming B650M-Plus is built to offer a robust platform that's reliable in long gaming sessions as well as in performance.
Product Features
Enhanced connectivity: With a wide array of interfaces including HDMI, DisplayPort, USB-C 3. 2 Gen 2x2, and USB 3. 2 Gen 2, this motherboard offers a broad range of connectivity options for a seamless and flexible user experience.
Robust audio performance: Equipped with high definition audio and an 8-channel sound card, the motherboard delivers crystal-clear sound quality, enhancing your gaming and multimedia experiences.
Advanced cooling: Featuring a comprehensive cooling solution with a VRM heatsink design, M. 2 heatsink, and water pump header, it ensures optimal thermal performance for sustained gaming sessions.
Superior memory support: Supports DDR5 SDRAM technology with speeds up to 6400 MHz (O. C. ), enabling faster data transfer rates and improved system performance.
Durable build quality: Incorporates ASUS TUF Protection, SafeSlot Core+, and stainless steel back I/O, providing enhanced durability and longevity for long-term usage.
- ASUS TUF Gaming B650M-Plus WIFI
- 2 x Serial ATA cable
- ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card
- Software
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - micro ATX |
| Processor Socket | Socket AM5 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Chipset Type | AMD B650 |
Expansion / Connectivity
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
|---|---|
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 1 x USB 3.2 Gen 1 4 x USB 2.0 2 x aerial 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
|---|
Miscellaneous
| Width | 24.4 cm |
|---|---|
| Depth | 24.4 cm |
| Cables Included | 2 x Serial ATA cable |
| Included Accessories | 2 x M.2 rubber package, M.2 screw package, TUF certification card |
| Compliant Standards | DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS TUF GAMING CPU-Z, MyAsus, Norton AntiVirus (Trial), WinRAR |
Audio
| Compliant Standards | High Definition Audio |
|---|---|
| Type | HD Audio (8-channel) |
Features
| BIOS Type | AMI |
|---|---|
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features | ASUS OptiMem II, jack retasking, audio jack detect technology, BIOS FlashBack button, Water Pump Header, TUF LANGuard, ASUS TUF Protection, ESD Guards, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS DIGI+ VRM, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED, VRM heatsink design, Q-Slot, M.2 heatsink, ASUS EZ DIY, pre-mounted I/O shield, BIOS FlashBack LED, ASUS ProCool, ASUS SafeDIMM, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, 12+2 Phase Power Design, 60A Power Stage, TUF Components |
LAN
| Network Interfaces | 2.5 Gigabit Ethernet |
|---|
Supported RAM
| Registered or Buffered | Unbuffered |
|---|---|
| Max Size | 128 GB |
| Technology | DDR5 |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Bus Clock | 4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.) |
