90MB1J30-M0EAY0

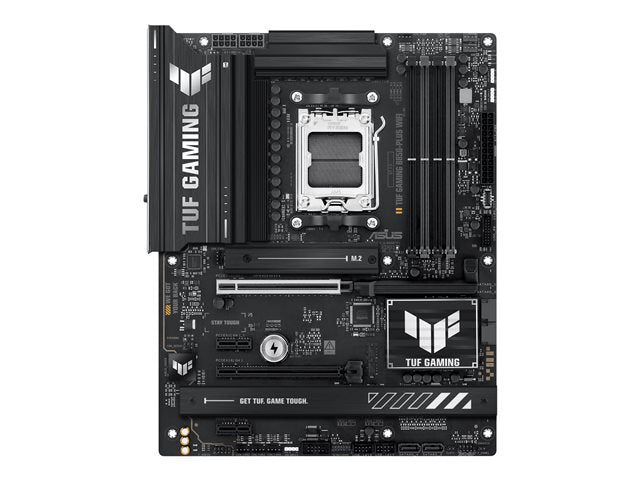

ASUS TUF GAMING B850-PLUS WIFI
ASUS TUF GAMING B850-PLUS WIFI
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The ASUS TUF GAMING B850-PLUS WIFI motherboard is designed for gamers and PC enthusiasts seeking reliable performance and advanced features. With support for Ryzen 7000/8000/9000 Series processors, it provides a robust platform for building high-performance systems. The motherboard features a UEFI BIOS with ASUS EZ Flash 3, enabling easy updates and management of system settings. This motherboard supports DDR5 SDRAM with speeds up to 4000 MHz overclocked, allowing for a fast and responsive user experience. Its multiple expansion slots, including PCIe 5.0 and M.2, offer extensive upgrade potential. The integrated 2.5 Gigabit Ethernet and Wi-Fi 7 compatibility ensure smooth and speedy connectivity, making it suitable for online gaming or multimedia experiences.
Product Features
Reliable Audio Performance: The motherboard includes a high definition audio codec, Realtek ALC1220P, providing 8-channel audio output ensuring clear and immersive sound quality during gaming sessions.
Versatile Connectivity Options: Equipped with multiple USB ports, including USB 3. 2 Gen 2 and USB-C 3. 2 Gen 2x2, this motherboard allows for extensive connectivity with peripherals and external devices.
Efficient Power Design: The motherboard features a 14+2+1 phase power design and high-quality 80A power stages, ensuring stable power delivery to the CPU and RAM for maximum performance.
Enhanced Thermal Management: It includes VRM heatsink design and ASUS ProCool technology, effectively managing the thermal output during peak loads to maintain system stability.
User-Friendly Features: The presence of ASUS Q-Design and M. 2 Q-Latch makes it easier to install and manage hardware components, enhancing the DIY experience for builders.
What's in the box:
- ASUS TUF GAMING B850-PLUS WIFI
- 2 x Serial ATA cable
- 2 x M.2 rubber package, TUF GAMING sticker, ASUS Wi-Fi Q-antenna
- Software
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - ATX |
| Processor Socket | Socket AM5 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Chipset Type | AMD B850 |
Expansion / Connectivity
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 |
|---|---|
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x audio - header 1 x Thunderbolt - header 1 x serial - header |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector, 2 x 8-pin ATX12V connectors |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x8/x4 mode) 2 x PCIe 4.0 x1 1 x PCIe 4.0 x16 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2280/22110 M.2 Key M slot) |
| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 2 x aerial |
Miscellaneous
| Depth | 24.4 cm |
|---|---|
| Width | 30.5 cm |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, UKCA, DisplayPort 1.4 |
| Included Accessories | ASUS Wi-Fi Q-antenna, 2 x M.2 rubber package, TUF GAMING sticker |
| Software Included | Sonic Radar III, Sonic Studio III, Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR |
Audio
| Type | HD Audio (8-channel) |
|---|---|
| Audio Codec | Realtek ALC1220P |
| Compliant Standards | High Definition Audio, DTS Sound Unbound |
Features
| BIOS Type | AMI |
|---|---|
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features | ASUS OptiMem II, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Water Pump Header, jack retasking, audio jack detect technology, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, 14+2+1 Phase Power Design, 80A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP), ESD Guards |
LAN
| Network Controller | Intel I225-V |
|---|---|
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
Supported RAM
| Registered or Buffered | Unbuffered |
|---|---|
| Max Size | 192 GB |
| Bus Clock | 4000 MHz (O.C.) |
| Technology | DDR5 |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Features | AMD EXPO technology, dual channel memory architecture |
