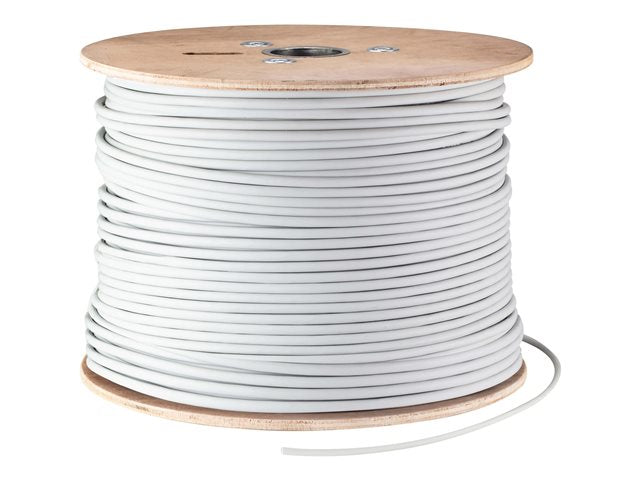

2L-29330
ATEN 2L-29330
ATEN 2L-29330
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The ATEN 2L-29330 bulk cable is designed for networking applications. With an impedance of 100 ohm and a tested frequency of up to 500 MHz, this CAT 6a cable supports efficient data transmission, making it suitable for various environments. Constructed with copper conductors and featuring aluminum mylar foil with braid shielding, it ensures protection against EMI and RFI interference. The low smoke zero halogen (LSZH) jacket material enhances safety in case of fire, while the design contributes to durability and reliability. This cable features halogen-free properties and is compliant with standards such as IEC 60332-1 and ANSI/TIA-568.2-D, ensuring it meets safety and performance criteria.
Product Features
Reliable construction: Constructed with solid copper conductors, the ATEN 2L-29330 cable ensures optimal performance and long-lasting durability for networking needs.
Effective shielding: Featuring aluminum mylar foil with braid shielding, this cable provides superior EMI and RFI protection, ensuring clear signal transmission and minimizing interference.
Safety compliance: With a low smoke zero halogen jacket, this cable meets strict safety regulations, making it suitable for critical installations in sensitive environments.
Environmental adaptability: With a temperature range of -20 °C to 60 °C, this cable is engineered to perform reliably in various environmental conditions.
High-frequency support: Supporting frequencies up to 500 MHz, this cable is suitable for applications requiring fast and efficient data transfer.
Main Specifications
General
| Length |
300 m
|
|---|---|
| Colour |
Grey
|
| American Wire Gauge (AWG) |
23
|
| Impedance |
100 Ohm
|
| Jacket Material |
Low Smoke Zero Halogen (LSZH)
|
| Shielding Material |
Aluminum mylar foil with braid
|
| Network Cable Type |
Bulk cable - CAT 6a
|
| Wires per Cable |
8 wires
|
| Pairs per Cable |
4 pairs
|
| Technology |
U/FTP
|
| Features |
HDBaseT 3.0, solid, halogen-free, drain wire, copper conductors, EMI/RFI protection
|
Miscellaneous
| Compliant Standards |
ISO 11801, ANSI/TIA-568.2-D, IEC 60332-1 - up to 500 MHz
|
|---|
Environmental Parameters
| Max Operating Temperature |
60 °C
|
|---|---|
| Min Operating Temperature |
-20 °C
|
