SKU:10499547
Emulex LPe32002-M2
Emulex LPe32002-M2
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description

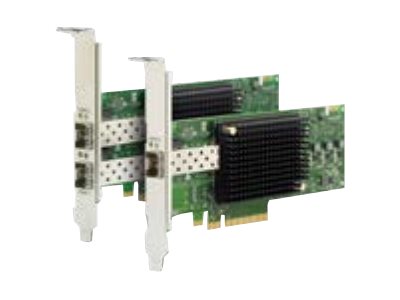

The Emulex Gen 6 (32Gb) Fiber Channel (FC) Host Bus Adapters (HBAs) by Broadcom are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives for caching and persistent storage as well as hard disk drive arrays.
Fiber Channel is the gold standard for network storage connectivity in enterprise and cloud deployments. The latest Emulex Gen 6 FC HBAs offer higher performance, lower latency, enhanced diagnostics and manageability for Cisco UCS C-Series rack servers. The LPe32000-series HBAs are available with single or dual 32GFC optics.
Unique to Fibere Channel technology is its deep ecosystem support making it ideal for large scale, easyto-manage storage deployments. Users can count on a complete suite of management software, inbox drivers for mainstream server operating systems, software-defined storage APIs and tools, and the strength to support high servicelevel agreement (SLA) applications.
| Product Description | Emulex LPe32002-M2 - host bus adapter - PCIe 3.0 x8 - 32Gb Fibre Channel x 2 |
| Device Type | Host bus adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 3.0 x8 |
| PCI Specification Revision | PCIe 3.0 |
| Ports | 32Gb Fibre Channel x 2 |
| Dimensions (WxDxH) | 16.764 cm 6.891 cm |
| Data Link Protocol | 32Gb Fibre Channel Gen 6 (Short Wave) |
| Data Transfer Rate | 28.05 Gbps |
| Processor | 1 x XE501 |
| System Requirements | SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, VMware vShpere |
| Pricing Type | Remanufactured |
| Manufacturer Warranty | 3-year warranty |
| Designed For | UCS C220 M5SX, C240 M5, C460 M4, Smart Play 8 C240, Smart Play C220 M4, SmartPlay Select C220 M4SX, SmartPlay Select C220 M5, SmartPlay Select C220 M5S, SmartPlay Select C220 M5SX, SmartPlay Select C240 M4L, SmartPlay Select C240 M4SX, SmartPlay Select C240 M5, SmartPlay Select C240 M5SX |
Robust connectivity
Equipped with dual 32Gb Fiber Channel ports, this host bus adapter ensures high-speed connectivity and redundancy for critical network applications.
Wide compatibility
Designed for PC compatibility and supporting a broad range of Fiber Channel protocols, the LPe32002-M2 seamlessly integrates into diverse network environments.
High performance
With a data transfer rate of 28. 05 Gbps and built on PCI Express 3. 0 x8 interface, this adapter delivers high performance for data-intensive tasks.
Durable design
Operating within a wide temperature range and compliant with multiple standards, the LPe32002-M2 is built for reliability in various operational conditions.
Advanced features
Supports a comprehensive list of Fiber Channel standards, ensuring compatibility with storage and networking technologies.
| Form Factor |
Plug-in card
|
| Device Type |
Host bus adapter
|
| Interface (Bus) Type |
PCI Express 3.0 x8
|
| PCI Specification Revision |
PCIe 3.0
|
| Interfaces |
2 x 32Gb Fibre Channel - LC multi-mode
|
| Service & Support |
Limited warranty - advance hardware replacement - 3 years
|
| Connectivity Technology |
Wired
|
| Ports |
32Gb Fibre Channel x 2
|
| Data Transfer Rate |
28.05 Gbps
|
| Data Link Protocol |
32Gb Fibre Channel Gen 6 (Short Wave)
|
| Fibre Channel |
FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3
|
| Pricing Type |
Remanufactured
|
| Included Accessories |
Low-profile bracket
|
| Compliant Standards |
CSA, UL, FCC, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM, EU RoHS
|
| OS Required |
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux, VMware vShpere
|
| Min Operating Temperature |
0 °C
|
| Max Operating Temperature |
55 °C
|
| Humidity Range Operating |
5 - 95% (non-condensing)
|
| Processor |
1 x XE501
|
| Width |
16.764 cm
|
| Height |
6.891 cm
|
| Designed For |
Cisco UCS C220 M5SX SFF, C240 M5 LFF Rack Server, C240 M5 SFF Rack Server, C460 M4 Rack Server for SAP HANA Scale-Up (Tracer), Smart Play 8 C240 M4 SFF Entry Plus (Tracer), Smart Play C220 M4 SFF Performance, SmartPlay Select C220 M4 Storage Bundle 5, SmartPlay Select C220 M4S, SmartPlay Select C220 M4S Advanced 1 (Tracer), SmartPlay Select C220 M4S Advanced 3, SmartPlay Select C220 M4S Basic 2, SmartPlay Select C220 M4S High Core 1, SmartPlay Select C220 M4S High Core 2, SmartPlay Select C220 M4S Standard 1 (Tracer), SmartPlay Select C220 M4S Standard 2, SmartPlay Select C220 M4SX Performance 1, SmartPlay Select C220 M4SX Performance 2, SmartPlay Select C220 M4SX Performance 3, SmartPlay Select C220 M5 Standard 2, SmartPlay Select C220 M5S Standard 1, SmartPlay Select C220 M5SX Advanced 1, SmartPlay Select C220 M5SX Standard 2, SmartPlay Select C240 M4L, SmartPlay Select C240 M4L High Frequency 1 (Not Sold Standalone), SmartPlay Select C240 M4L High Frequency 1 (Tracer), SmartPlay Select C240 M4L High Frequency 2 (Not Sold Standalone), SmartPlay Select C240 M4L High Frequency 2 (Tracer), SmartPlay Select C240 M4S Advanced 1, SmartPlay Select C240 M4S Advanced 2, SmartPlay Select C240 M4S Basic 1, SmartPlay Select C240 M4S High Core 1, SmartPlay Select C240 M4S High Core 2, SmartPlay Select C240 M4S Standard 1, SmartPlay Select C240 M4S Standard 2, SmartPlay Select C240 M4S Standard 3, SmartPlay Select C240 M4SX, SmartPlay Select C240 M4SX Advanced 1 (Tracer), SmartPlay Select C240 M4SX Basic 1, SmartPlay Select C240 M4SX High Core 1, SmartPlay Select C240 M4SX High Frequency 1 (Tracer), SmartPlay Select C240 M4SX High Frequency 2 (Tracer), SmartPlay Select C240 M4SX Medium, SmartPlay Select C240 M4SX Performance 2, SmartPlay Select C240 M4SX Standard 1, SmartPlay Select C240 M4SX Standard 1 (Tracer), SmartPlay Select C240 M5 Advanced 2, SmartPlay Select C240 M5SX, SmartPlay Select C240 M5sx Advanced 2
|
