AW567B

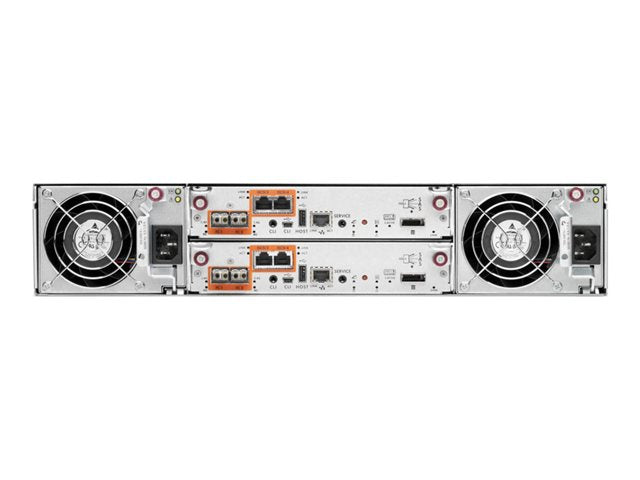

HPE Modular Smart Array P2000 G3 FC/iSCSI Dual Combo Controller LFF Array System

HPE Modular Smart Array P2000 G3 FC/iSCSI Dual Combo Controller LFF Array System

Regular price £7,075.92
Sale price £7,075.92 Regular price £8,141.32
Sale Sold out
Taxes included

In Stock - Delivery from tomorrow

FREE Delivery to most of the UK

View full details

Product Description

The FC/iSCSI Combo controller gives the flexibility to share the array resources over two protocols, supporting the needs of dissimilar departments and budgets.

All P2000 G3 MSA Arrays ship standard with 64 snapshots and volume copy enabled for increased data protection. The Combo FC/iSCSI controller allows departments and small to medium businesses to grow capacity as needed up to 149 drives. Configure with a single controller for low initial cost, or dual controllers for high availability for the most demanding entry-level situations.

Product Features

Easily managed, highly affordable, highly efficient and flexible storage consolidation: The HPE P2000 G3 MSA Array System delivers low cost, consolidated storage array solutions to meet departmental and small to medium businesses requirements. The P2000 G3 MSA offers single controller models for low initial investment, or dual controllers for higher data protection. The FC/iSCSI Combo controller allows sharing of resources between different departments with the most cost-effective protocol. A wide choice of drive types means a high ROI.

Start small and grow in number of supported servers and total capacity: iSCSI technology means that the users will have fast, reliable, and affordable access to their data. The P2000 G3 MSA arrays have more than sufficient LUN flexibility for a wide variety of configuration choices.

Comprehensive data protection in an easily administered SAN environment: Reduce risk of IT failure with dual active/active controllers, dual-ported drives, and redundant hardware components. Reduced time to operation with easy and secure deployment. Reduced risk from operator errors, resulting in less downtime and data loss, while increasing customer satisfaction.

Main Specifications

General

Device Type Hard drive array
Enclosure Type Rack-mountable - 2U

Expansion / Connectivity

Expansion Bays 12 (total) / 12 (free) - 3.5" LFF
Interfaces
2 x management - mini-USB Type B
2 x management - RJ-45
2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
4 x Ethernet 1000Base-T - RJ-45
4 x 8Gb Fibre Channel - SFP+

Storage

Maximum LUNs 512
HDD Array External Interface iSCSI, 8Gb Fibre Channel

Miscellaneous

Compliant Standards VCCI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, EN 61000-3-3, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, RoHS, FCC Part 15 A, AS/NZS, CAN/CSA C22.2 No. 60950-1-03, EN 55022 Class A, EN 55024 Class A

Power

Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Power Device 2 x internal power supply - hot-plug
Voltage Required AC 120/230 V - 50/60 Hz

Environmental Parameters

Max Operating Temperature 40 °C
Min Operating Temperature 5 °C
Sound Emission 55 dB
Humidity Range Operating 10 - 90% (non-condensing)

Storage Controller

Installed Qty 2
Cache / Buffer Size (Max) 2 GB
RAID Level RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50
Data Transfer Rate 600 MBps
Interface Type SATA 3Gb/s / SAS 6Gb/s
Type RAID (8Gb Fibre Channel / iSCSI)

System Requirements

OS Required HP-UX, SuSe Linux, Apple MacOS X, SUSE Linux Enterprise Server, SunSoft Solaris x86 10, Microsoft Windows Server 2003 SP1, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2008 R2 (32/64-bits)

Storage Controller (2nd)

Installed Qty 2

Dimensions & Weight

Width 44.7 cm
Height 8.9 cm
Depth 55.1 cm

Chassis

Installed Devices / Modules Qty 0
Supported Devices / Modules Qty 12
Supported Drives SATA-300 / SAS-2
