AW568B

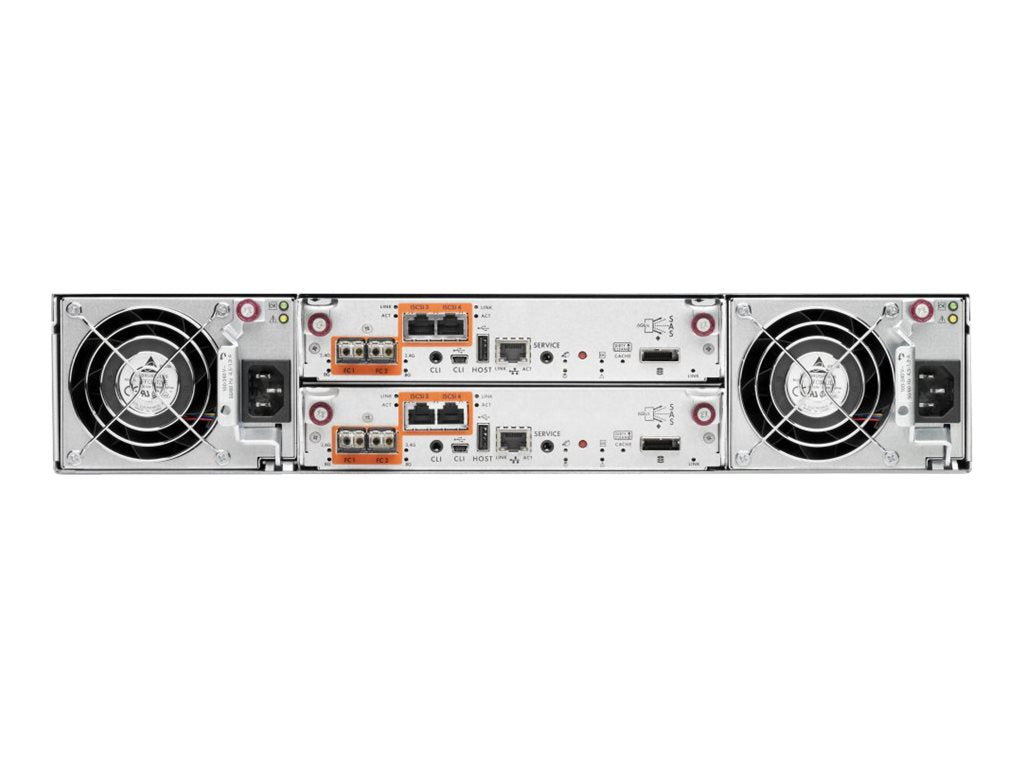

HPE Modular Smart Array P2000 G3 FC/iSCSI Dual Combo Controller SFF Modular Smart Array System
HPE Modular Smart Array P2000 G3 FC/iSCSI Dual Combo Controller SFF Modular Smart Array System
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share

Product Description
Large companies that have multiple smaller departments and/or remote locations, and smaller companies whose storage needs demand shared resources. How can the flexibility of the HPE P2000 G3 MSA Array System helps remedy large storage needs and small budgets? By offering high-performance iSCSI connected array designed for efficient storage consolidation at affordable prices. P2000 G3 MSA array ships standard with 64 snapshots and volume copy enabled for increased data protection. The array allows departments and small to medium businesses to grow capacity as needed up to 149 drives.
Product Features
Easily managed, highly affordable, highly efficient and flexible storage consolidation: The HPE P2000 G3 MSA Array System delivers low cost, consolidated storage array solutions to meet departmental and small to medium businesses requirements with iSCSI system accommodating SFF drives. The P2000 G3 MSA comes standard with 64 snapshot and volume copy cloning capability enabled.
Start Small and Grow in Number of Supported Servers and Total Capacity: iSCSI technology means that the users will have fast, reliable, and affordable access to their data.
Comprehensive Data Protection in an Easily Administered SAN Environment: Reduce risk of IT failure with dual active/active controllers, dual-ported drives, and redundant hardware components. Reduced time to operation with easy and secure deployment. Reduced risk from operator errors, resulting in less downtime and data loss, while increasing customer satisfaction.
Main Specifications
General
Device Type | Hard drive array |
---|---|
Enclosure Type | Rack-mountable - 2U |
Expansion / Connectivity
Expansion Bays | 24 (total) / 24 (free) x hot-swap - 2.5" SFF |
---|---|
Interfaces | 2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088) 2 x management 2 x management - RJ-45 4 x Ethernet 1000Base-T 4 x 8Gb Fibre Channel |
Storage
Maximum LUNs | 512 |
---|---|
HDD Array External Interface | iSCSI, 8Gb Fibre Channel |
Miscellaneous
Compliant Standards | FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, GS, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, FCC Part 15, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, WEEE, RoHS, EN55024 Class A |
---|
Power
Max Supported Qty | 2 |
---|---|
Power Redundancy | Yes |
Power Redundancy Scheme | 1+1 |
Power Device | 2 x internal power supply - hot-plug |
Voltage Required | AC 120/230 V - 50/60 Hz |
Environmental Parameters
Max Operating Temperature | 40 °C |
---|---|
Min Operating Temperature | 5 °C |
Sound Emission | 55 dB |
Humidity Range Operating | 10 - 90% (non-condensing) |
Storage Controller
Installed Qty | 2 |
---|---|
Cache / Buffer Size (Max) | 2 GB |
RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50 |
Data Transfer Rate | 600 MBps |
Interface Type | SATA 3Gb/s / SAS 6Gb/s |
Type | RAID (8Gb Fibre Channel / iSCSI) |
System Requirements
OS Required | Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003 SP1, Microsoft Windows Server 2003 SP2, Microsoft Windows Server 2008 x64 Edition, Microsoft Windows Server 2003 R2 (32/64-bits), Microsoft Windows Server 2008 R2 x64 Edition, VMware ESX |
---|
Storage Controller (2nd)
Installed Qty | 2 |
---|
Hard Drive
Capacity | 0 |
---|---|
Type | HDD - hot-swap |
Dimensions & Weight
Width | 44.7 cm |
---|---|
Height | 8.9 cm |
Depth | 51.51 cm |
Chassis
Installed Devices / Modules Qty | 0 |
---|---|
Supported Devices / Modules Qty | 24 |
Supported Drives | SATA-300 / SAS-2 |
