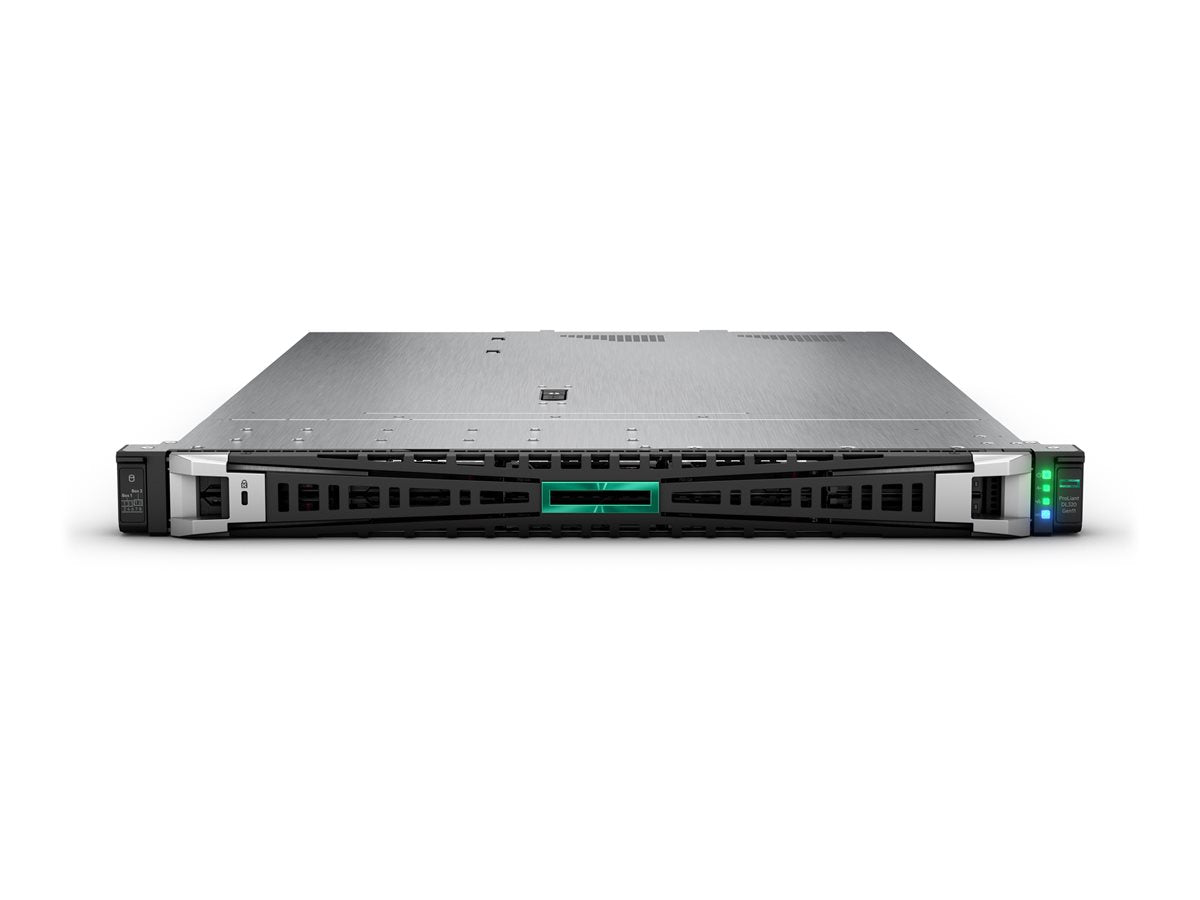

HPE ProLiant DL320 Gen11
HPE ProLiant DL320 Gen11
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable to diverse workloads and environments, the compact 1U 1P HPE ProLiant DL320 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency, the HPE ProLiant DL320 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL320 Gen11 supports the Intel Xeon, plus 4800 MT/s HPE DDR5 Smart Memory. Introducing PCIe Gen5 and Intel Software Guard Extensions (SGX) support on the single socket segment, the HPE ProLiant DL320 Gen11 delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at 1P economics. DL320 Gen11 is an excellent choice for daily business and workloads in Data Management, Virtualization, Content Delivery Network (CDN), Intelligent Video Analytics (IVA), General Compute, Data Collection, Software Defined Storage, Software Defined Compute, Cold Storage, Compute Storage, Edge AI, and Virtual Desktop Infrastructure (VDI).
| Product Description | HPE ProLiant DL320 Gen11 - rack-mountable Xeon Bronze 3408U 1.8 GHz - 16 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Region: European Union |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon Bronze 3408U / 1.8 GHz (up to 1.9 GHz, (8-core) |
| Cache Memory | 22.5 MB L3 Cache |
| Cache Per Processor | 22.5 MB |
| RAM | 16 GB (installed) / 2.04 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | RAID |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 43.46 cm x 66.46 cm x 4.28 cm |
| Weight | 13.2 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Type |
Server
|
| Hot-Swap Bays Qty |
4
|
| Server Scalability |
1-way
|
| Product Form Factor |
Rack-mountable - 1U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: European Union
|
| Bays |
4 (total) / 4 (free) x hot-swap 3.5" LFF
|
| Slots |
2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode)
1 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
|
| Interfaces |
1 x HPE iLO (1 in front) (service port)
3 x USB 3.2 Gen 1 (1 front, 2 rear)
1 x USB 2.0
1 x VGA
2 x LAN (Gigabit Ethernet)
|
| Service & Support |
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
|
| Configuration Features |
1 x 16 GB
|
| Effective Memory Speed |
4000 MHz
|
| Form Factor |
DIMM 288-pin
|
| Rated Memory Speed |
4800 MHz
|
| Slots |
16 (Total) / 15 (empty)
|
| Technology |
DDR5 SDRAM - Advanced ECC
|
| Installed Size |
16 GB (installed) / 2.04 TB (max)
|
| Features |
Registered, HPE SmartMemory, 8-channel memory architecture
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Ethernet Ports |
2 x Gigabit Ethernet
|
| Remote Management Protocol |
IPMI 2.0, SNMP 3
|
| Features |
Wake on LAN (WoL), PXE support, ACPI support
|
| Compliant Standards |
AES, FIPS 140-2, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.3
|
| Included Accessories |
5 x standard fans, HPE Easy Install Rails
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
1000 Watt
|
| Voltage Required |
AC 200/240 V
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Titanium
|
| Min Operating Temperature |
10 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
8 - 90% RH (non-condensing)
|
| Channel Qty |
8
|
| Type |
1 x RAID
|
| Cache Per Processor |
22.5 MB
|
| Installed Size |
L3 Cache - 22.5 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| OS Certified |
Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Canonical Ubuntu, Oracle Linux, Oracle VM, Citrix, CentOS
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Type |
No HDD
|
| Weight |
13.2 kg
|
| Width |
43.46 cm
|
| Height |
4.28 cm
|
| Depth |
66.46 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| CPU Upgradability |
Upgradable
|
| Max Turbo Speed |
1.9 GHz
|
| Clock Speed |
1.8 GHz
|
| Number of Cores |
8-core
|
| CPU |
Intel Xeon Bronze 3408U
|
| Chipset Type |
Intel C741
|
| ENERGY STAR Certified |
Yes
|
