HPE Smart Choice DL380 G11 4514Y 64G 8SFF EU Svr
HPE Smart Choice DL380 G11 4514Y 64G 8SFF EU Svr
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description

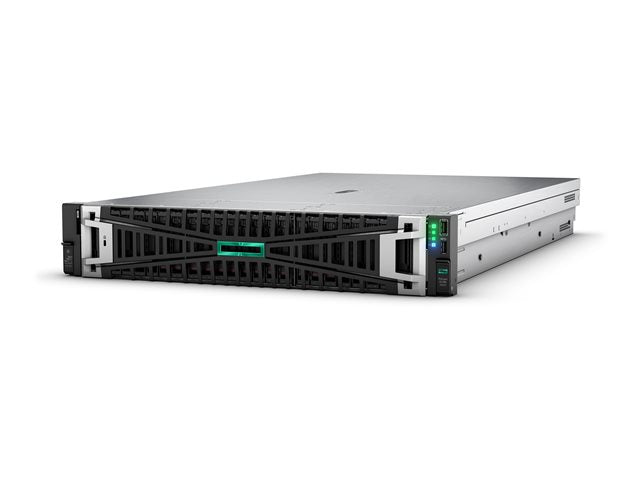

The HPE ProLiant DL380 Gen11 is designed to excel in demanding data center environments, offering flexibility and performance to meet diverse workload requirements. With a Xeon Silver processor and support for DDR5 SDRAM, this server allows for improvements in memory speed and capacity. Its rack-mountable chassis is optimized for space efficiency while providing easy access to components, ensuring effective cooling management within server racks. The HPE ProLiant DL380 Gen11 features hot-swap server storage bays compatible with SATA, SAS, and NVMe interfaces. The server is designed for scalability with two-way configuration support and plenty of expansion options, including available bays and slots. Additionally, its integrated management tools streamline remote administration and enhance security with the Trusted Platform Module (TPM 2.0), ensuring system integrity.
Main Specifications
| Product Description | HPE ProLiant DL380 Gen11 - rack-mountable Xeon Silver 4514Y 2 GHz - 64 GB - HDD 2 x 2.4 TB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 2U |
| Localisation | Region: Europe |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4514Y / 2 GHz (up to 3.4 GHz, (16-core) |
| Cache Memory | 30 MB L3 Cache |
| Cache Per Processor | 30 MB |
| RAM | 64 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR416i-o Gen11 SPDM) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x HDD 2.4 TB - SAS |
| Optical Storage | No optical drive |
| Graphics Controller | - up to |
| Video Memory | 16 MB |
| Networking | 10GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE Server UEFI |
| Dimensions (WxDxH) | 44.8 cm x 72.7 cm x 8.75 cm |
| Weight | 16 kg |
| Manufacturer Selling Program | HPE Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site |
Product Features
Efficient storage capabilities
The server features eight hot-swap storage bays, allowing for easy installation and maintenance of drives. It supports various interface options including SATA, SAS, and NVMe, providing the flexibility needed for different storage setups.
Robust expansion options
With a total of 32 RAM slots and the capability to support expansion cards in available half-length, full-height slots, the HPE ProLiant DL380 Gen11 offers the scalability needed for growing business demands.
Effective cooling and operation
Designed for a wide range of operating environments, the DL380 Gen11 operates efficiently between 10°C and 35°C and can handle humidity levels of 8% to 90% RH, ensuring reliability in various conditions.
Integrated management tools
Equipped with Integrated Lights-Out 6, this server streamlines remote management, allowing administrators to monitor and maintain server health and performance without being onsite.
Enhanced security features
The embedded Trusted Platform Module (TPM 2. 0) ensures a strong foundation for secure boot processes and encryption, protecting the integrity of sensitive data.
What's in the box
HPE ProLiant DL380 Gen11
4 standard fans
| Type |
Server
|
| Hot-Swap Bays Qty |
8
|
| Server Scalability |
2-way
|
| Product Form Factor |
Rack-mountable - 1U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: EMEA
|
| Built-in Devices |
6 x performance fans
|
| Bays |
8 (total) / 8 (free) x hot-swap 2.5"
|
| Interfaces |
5 x USB 3.2 Gen 1 (1 front, 3 rear, 1 internal)
1 x USB 2.0 (1 in front)
1 x VGA (1 rear)
1 x management - RJ-45
|
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day
|
| Configuration Features |
1 x 32 GB
|
| Rated Memory Speed |
2200 MHz
|
| Form Factor |
DIMM 288-pin
|
| Slots |
32 (Total) / 31 (empty)
|
| Features |
Registered, Memory Mirroring, slots 17 - 32 are available in two-processor configuration only
|
| Effective Memory Speed |
4400 MHz
|
| Technology |
DDR5 SDRAM - ECC
|
| Installed Size |
32 GB (installed) / 8 TB (max)
|
| Remote Management Protocol |
SNMP 3, IPMI 2.0
|
| Remote Management Controller |
XClarity Controller 2 (XCC2) Platinum
|
| Theft/Intrusion Protection |
Chassis intrusion switch
|
| Compliant Standards |
FCC Class A certified, EN 61000-3-2, GS, EN55024, GB 17625.1, VCCI Class A, GB 4943.1, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, CISPR 32 Class A, CISPR 35, TP TC 004/2011, TP TC 020/2011, HJ 2507-2011, CNS 15663, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, EN61000-3-3, EN55032 Class A, CNS14336-1, EN55035, EN50581-1 (RoHS), UL2819, BIS 13252 (Part 1)
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
1000 Watt
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Titanium
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Channel Qty |
8
|
| Buffer Size |
2 GB
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
|
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s
|
| Type |
1 x RAID - PCIe 3.0 x8
|
| Storage Controller Name |
ThinkSystem RAID 9350-8i
|
| Cache Per Processor |
22.5 MB
|
| Installed Size |
L3 Cache - 22.5 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Graphics Processor |
ASPEED AST2600
|
| Type |
No HDD
|
| Width |
44 cm
|
| Height |
4.3 cm
|
| Weight |
20.8 kg
|
| Depth |
77.3 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
2
|
| Clock Speed |
2.6 GHz
|
| Number of Cores |
8-core
|
| Max Turbo Speed |
4.1 GHz
|
| Chipset Type |
Intel C741
|
| CPU |
Intel Xeon Silver 4509Y
|
| EPEAT Compliant |
EPEAT Bronze
|
