HNS2600BPSR

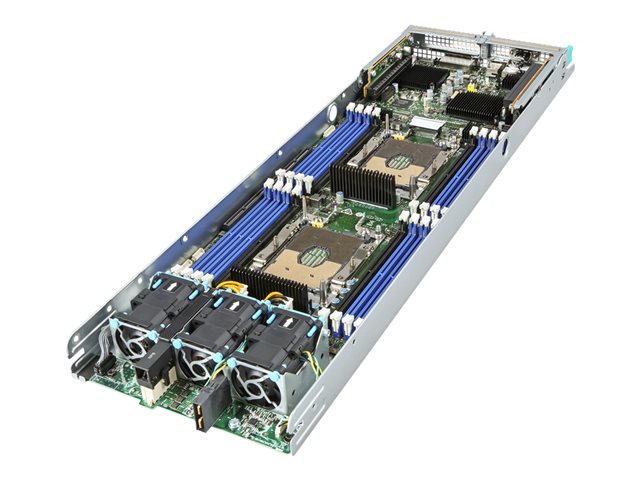

Intel Compute Module HNS2600BPSR
Intel Compute Module HNS2600BPSR
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Product Features
Robust scalability: Designed for growth and scalability, the Intel Compute Module HNS2600BPSR supports 2-way server scalability and upgradability, ensuring your infrastructure can adapt to your evolving business needs.
High-speed connectivity: With dual SFP+ Ethernet ports offering 10 Gigabit Ethernet, this server module ensures high-speed connectivity, making it ideal for high-demand network environments.
Advanced memory support: Equipped with 16 DIMM slots supporting Load-Reduced DIMM (LRDIMM) and registered DDR4 SDRAM, it provides reliable and high-capacity memory solutions for demanding applications.
Comprehensive storage options: Featuring an 8-channel Serial ATA controller with support for RAID 0, 1, 10, 5, and 50, it offers flexible and secure storage configurations to meet diverse data storage requirements.
Integrated management features: The integrated BMC with IPMI 2. 0 support offers comprehensive remote management capabilities, enabling efficient monitoring and management of server health and resources.
Main Specifications
General
| Type | Server |
|---|---|
| Server Scalability | 2-way |
| Product Form Factor | Blade |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
Expansion / Connectivity
| Slots |
1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile)
1 (total) / 1 (free) x M.2 Card - 2242
|
|---|---|
| Interfaces |
1 x VGA
2 x USB 3.0
2 x LAN (10Gigabit Ethernet) - SFP+
1 x serial
|
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
|---|
RAM
| Features | Registered, Load-Reduced DIMM (LRDIMM) |
|---|---|
| Form Factor | DIMM 288-pin |
| Technology | DDR4 SDRAM - ECC |
| Slots | 16 (Total) / 16 (empty) |
| Installed Size | 0 GB / 2.8 TB (max) |
Networking
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
|---|---|
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | Intel Baseboard Management Controller (BMC) |
| Ethernet Ports | 2 x SFP+ |
| Features | Integrated BMC with IPMI |
Miscellaneous
| Included Accessories | 2 x CPU Heatsink, air duct, 2 x riser cards, node power board, 1U node tray, 3 x system fans, external VGA port bracket, Intel Server Board S2600BPSR |
|---|
Storage Controller
| Channel Qty | 8 |
|---|---|
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10, RAID 50 |
| Type | SATA |
| Controller Interface Type | SATA 6Gb/s |
Optical Storage
| Type | No optical drive |
|---|
Monitor
| Monitor Type | None. |
|---|
Graphics Controller
| Video Interfaces | VGA |
|---|
Hard Drive
| Type | No HDD |
|---|
Processor / Chipset
| Max CPU Qty | 2 |
|---|---|
| CPU Upgradability | Upgradable |
| CPU | No CPU |
| CPU Socket | Socket P |
| Chipset Type | Intel C622 |
