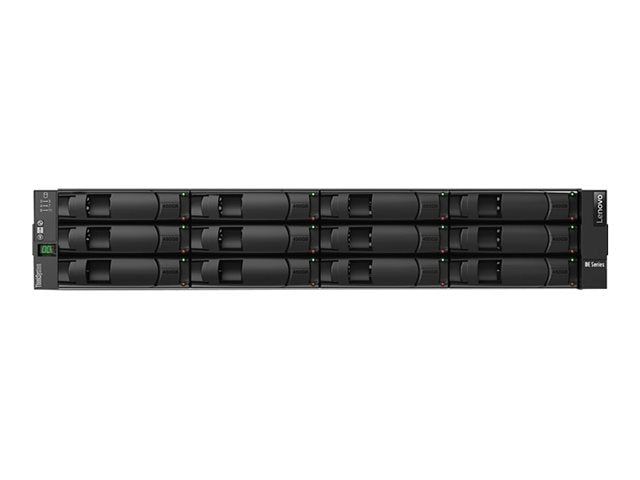

Lenovo ThinkSystem DE2000H Hybrid 2U12 LFF controller enclosure
Lenovo ThinkSystem DE2000H Hybrid 2U12 LFF controller enclosure
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Lenovo ThinkSystem DE2000H is a low-cost, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
Product Features
Efficient power management: Equipped with an 80 PLUS Platinum certified internal power supply, this device ensures efficient power usage and management, providing 913 W of power with redundancy capabilities. The hot-plug feature allows for uninterrupted power supply replacement, ensuring your system remains operational and reliable.
Advanced RAID support: The Lenovo ThinkSystem DE2000H Hybrid offers comprehensive RAID support, including RAID 0, 1, 10, 3, 5, and 6. This versatility allows for a wide range of data protection and performance options, catering to various business needs and ensuring data integrity.
Robust environmental adaptability: Designed to operate within a broad range of temperatures from 10°C to 40°C and humidity levels from 8% to 90% (non-condensing), this storage solution is built to withstand diverse environmental conditions, ensuring reliability and durability in various operational scenarios.
High-capacity storage expansion: With 12 hot-swap 3. 5" LFF expansion bays, the system provides ample space for storage expansion, allowing for seamless scalability. This feature supports Serial Attached SCSI 3 interface, offering high-speed data access and transfer rates, ideal for growing business needs.
Comprehensive compliance standards: Meeting a wide array of international compliance standards, including AS/NZS CISPR22 Class A, FCC Part 15 A, and EN 55032 Class A, among others, this device assures global market compatibility and adherence to rigorous safety and operational benchmarks.
Main Specifications
General
| Device Type |
Hard drive array
|
|---|---|
| Enclosure Type |
Rack-mountable - 2U
|
Expansion / Connectivity
| Expansion Bays |
12 (total) / 12 (free) x hot-swap - 3.5" LFF
|
|---|---|
| Expansion Slots |
2 (total) / 2 (free) x expansion slot
|
| Interfaces |
2 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644)
2 x 16Gb Fibre Channel - SFP+
1 x Ethernet 1000 (management) - RJ-45
1 x serial (management) - 5 pin Micro-USB Type A
1 x serial (management) - RJ-45
|
Manufacturer Warranty
| Service & Support |
Limited warranty - 3 years - on-site
|
|---|
Storage
| Host Channels |
2
|
|---|---|
| HDD Array External Interface |
16Gb Fibre Channel
|
Miscellaneous
| Features |
Application snapshots, Dynamic Disk Pool (DDP) Technology
|
|---|---|
| Cables Included |
1 x micro-USB to USB cable - 2 m
2 x power cable (C13-C14) - 1.5 m
|
| Compliant Standards |
BSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
|
Power
| Max Supported Qty |
2
|
|---|---|
| Power Redundancy |
Yes
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Power Device |
2 x internal power supply - hot-plug
|
| Voltage Required |
AC 120/230 V - 50/60 Hz
|
| Power Provided |
913 Watt
|
Environmental Parameters
| Max Operating Temperature |
40 °C
|
|---|---|
| Min Operating Temperature |
10 °C
|
| Humidity Range Operating |
8 - 90% (non-condensing)
|
Storage Controller
| Cache / Buffer Size (Max) |
16 GB
|
|---|---|
| Type |
RAID
|
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10
|
| Data Transfer Rate |
1.2 GBps
|
| Interface Type |
SAS 12Gb/s
|
Hard Drive
| Type |
No HDD
|
|---|
Dimensions & Weight
| Height |
8.5 cm
|
|---|---|
| Depth |
48.3 cm
|
| Width |
44.7 cm
|
| Weight |
27.6 kg
|
Chassis
| Supported Devices / Modules Qty |
12
|
|---|---|
| Supported Drives |
SAS-3
|
