SKU:5819688

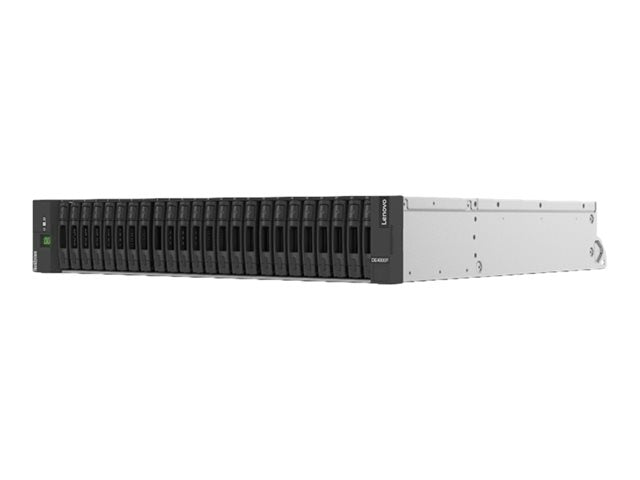

Lenovo ThinkSystem DE4000F 2U24 SFF controller enclosure
Lenovo ThinkSystem DE4000F 2U24 SFF controller enclosure
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Lenovo ThinkSystem DE4000F is a scalable, all flash entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000F is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, and other storage I/O-intensive applications.
| Product Description | Lenovo ThinkSystem DE4000F 2U24 SFF controller enclosure - hard drive array |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Interface | 16Gb Fibre Channel |
| Host Channels | 2 |
| Installed Devices / Modules Qty | 24 (max) |
| Supported Drives | SAS-3 |
| Storage Controller | RAID (SAS 12Gb/s) - RAID RAID 0, 1, 3, 5, 6, 10 |
| Hard Drive | No HDD |
| Power | AC 120/230 V - 50/60 Hz |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 44.9 cm x 55.3 cm x 8.5 cm |
| Weight | 27.6 kg |
| Manufacturer Warranty | 3-year warranty |
SAS connectivity
The following table lists currently available SAS adapters for Lenovo servers that are compatible with the ThinkSystem DE4000F SAS storage (direct attach). Other SAS HBAs also might be supported (see the Interoperability Matrix for details).
iSCSI connectivity
The ThinkSystem DE4000F supports iSCSI attachments. Any compatible Ethernet switch, including Lenovo ThinkSystem and RackSwitch Ethernet switches and embedded Flex System Ethernet I/O modules, can be used to provide iSCSI connectivity for the ThinkSystem DE4000F storage.
Fiber Channel connectivity
The ThinkSystem DE4000F supports direct FC attachments and FC switch-based attachments. Lenovo B Series and DB Series FC SAN switches and directors can be used to provide FC connectivity. Currently available FC adapters for Lenovo servers that are compatible with the ThinkSystem DE4000F FC storage are listed in the following table. Other FC HBAs also might be supported.
| Device Type |
Hard drive array
|
| Enclosure Type |
Rack-mountable - 2U
|
| Expansion Bays |
24 (total) / 24 (free) x hot-swap - 2.5" SFF
|
| Expansion Slots |
2 (total) / 0 (free) x expansion slot
|
| Interfaces |
6 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)
4 x 16Gb Fibre Channel - SFP+
1 x Ethernet 1000 (management) - RJ-45
1 x serial (management) - 5 pin Micro-USB Type A
1 x serial (management) - RJ-45
|
| Service & Support |
Limited warranty - 3 years - on-site
|
| Host Channels |
2
|
| HDD Array External Interface |
16Gb Fibre Channel
|
| Included Accessories |
Rack mounting kit
|
| Features |
Application snapshots, Dynamic Disk Pool (DDP) Technology
|
| Cables Included |
1 x micro-USB to USB cable - 2 m
2 x power cable (C13-C14) - 1.5 m
|
| Compliant Standards |
BSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
|
| Max Supported Qty |
2
|
| Power Redundancy |
Yes
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Power Device |
2 x internal power supply - hot-plug
|
| Voltage Required |
AC 120/230 V - 50/60 Hz
|
| Power Provided |
913 Watt
|
| Min Operating Temperature |
5 °C
|
| Max Operating Temperature |
45 °C
|
| Humidity Range Operating |
8 - 90% (non-condensing)
|
| Cache / Buffer Size (Max) |
64 GB
|
| Type |
RAID
|
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10
|
| Data Transfer Rate |
1.2 GBps
|
| Interface Type |
SAS 12Gb/s
|
| Type |
No HDD
|
| Height |
8.5 cm
|
| Width |
44.9 cm
|
| Depth |
55.3 cm
|
| Weight |
27.6 kg
|
| Supported Devices / Modules Qty |
24
|
| Supported Drives |
SAS-3
|
