7Y74A00CEA

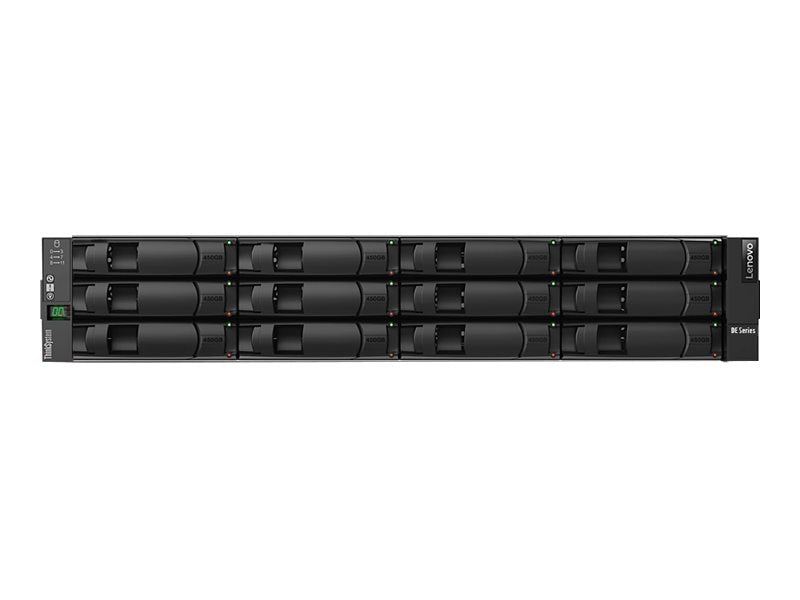

Lenovo ThinkSystem DE4000H Hybrid 2U12 LFF controller enclosure
Lenovo ThinkSystem DE4000H Hybrid 2U12 LFF controller enclosure
Regular price
£11,336.89
Sale price
£11,336.89
Regular price
Unit price
/
per
Taxes included
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Lenovo ThinkSystem DE4000H is a scalable, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
Main Specification
General
| Device Type | Hard drive array |
|---|---|
| Localisation | EMEA |
| Enclosure Type | Rack-mountable - 2U |
Expansion / Connectivity
| Expansion Bays | 12 (total) / 12 (free) x hot-swap - 3.5" LFF |
|---|---|
| Expansion Slots | 2 (total) / 0 (free) x expansion slot |
| Interfaces | 4 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644) 4 x Ethernet 10Gb (iSCSI) - SFP+ 2 x Ethernet 1000 (management) - RJ-45 2 x management - 5 pin Micro-USB Type A 8 x Ethernet 25Gb (iSCSI) / 10Gb (iSCSI) (input) - SFP28 2 x management - RJ-45 |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years - on-site |
|---|
Storage
| HDD Array External Interface | iSCSI (10 GbE), iSCSI (25 GbE) |
|---|
Miscellaneous
| Included Accessories | Rack mounting kit |
|---|---|
| Features | Application snapshots, Dynamic Disk Pool (DDP) Technology |
| Cables Included | 1 x micro-USB to USB cable - 2 m 2 x power cable (C13-C14) - 1.5 m |
| Compliant Standards | BSMI CNS 13438 Class A, NOM, EN55024, CCC, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, BIS, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, AS/NZS CISPR22 Class A, CELP |
Power
| Max Supported Qty | 2 |
|---|---|
| Power Redundancy | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 913 Watt |
| Voltage Required | AC 100-127/200-240 V 50/60 Hz |
Environmental Parameters
| Max Operating Temperature | 40 °C |
|---|---|
| Min Operating Temperature | 10 °C |
| Humidity Range Operating | 8 - 90% (non-condensing) |
Storage Controller
| Cache / Buffer Size (Max) | 16 GB |
|---|---|
| Type | RAID |
| RAID Level | RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10 |
| Data Transfer Rate | 1.2 GBps |
| Interface Type | SAS 12Gb/s |
Hard Drive
| Type | No HDD |
|---|
Dimensions & Weight
| Height | 8.5 cm |
|---|---|
| Depth | 48.3 cm |
| Width | 44.7 cm |
| Weight | 28.78 kg |
Chassis
| Supported Devices / Modules Qty | 12 |
|---|---|
| Supported Drives | SAS-3 |
