Product Description

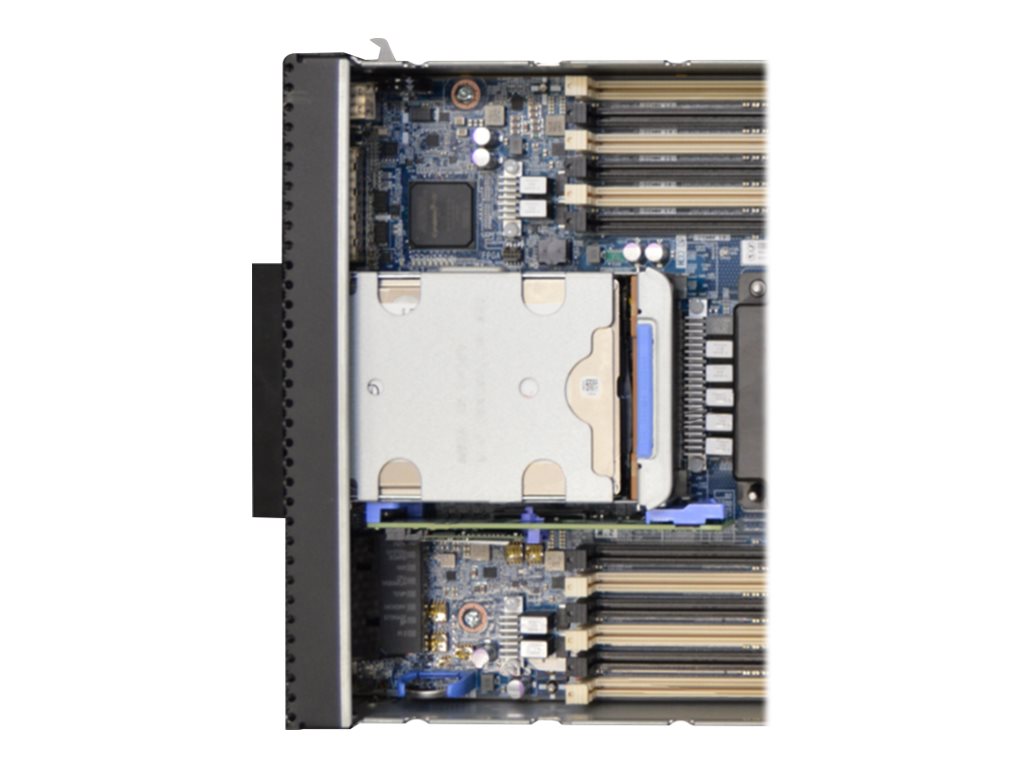

The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates up to two Intel Xeon Processor Scalable Family of processors. The processors feature up to 28 cores each and use Lenovo TruDDR4 memory, which runs at speeds up to 2666 MHz.
Product Features
Enhanced security: Equipped with Trusted Platform Module (TPM 1. 2 and TPM 2. 0), the Lenovo ThinkSystem SN550 offers robust security features to protect against unauthorized access and ensure data integrity.
High scalability: With support for up to 2 Intel Xeon Gold processors and server scalability of 2-way, this server is designed to grow as your business needs expand.
Advanced memory capabilities: Features such as Memory Mirroring, Memory Sparing, and TruDDR4 technology, along with support for up to 24 DIMM slots in a two-processor configuration, provide reliability and performance for critical applications.
Main Specifications
| Type |
Server |
| Server Scalability |
2-way |
| Product Form Factor |
Blade |
| Embedded Security |
Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Localisation |
Region: EMEA |
| Interfaces |
1 x USB 3.0 (1 in front)
1 x management (1 in front) |
| Slots |
1 (total) / 1 (free) x M.2 Card
2 (total) / 2 (free) x expansion slot |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Configuration Features |
1 x 32 GB |
| Form Factor |
DIMM 288-pin |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
2933 MHz |
| RAM Supported |
768 GB registered - ECC
1.5 TB Load-Reduced - ECC |
| Slots |
24 (Total) / 23 (empty) |
| Features |
Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, TruDDR4, supports Intel Optane DC Persistent Memory (DCPMM) |
| Installed Size |
32 GB (installed) / 768 GB (max) |
| Rated Memory Speed |
1467 MHz |
| Data Link Protocol |
10 Gigabit Ethernet |
| Ethernet Controller |
Intel X722 |
| Remote Management Controller |
XClarity Controller (XCC) |
| Compliant Standards |
TUV GS, BSMI, CISPR 22 Class A, EN55024, EN55022 Class A, CB, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN24, KN22 Class A, CNS 14336, EK1-ITB2000, CNS 13438 Class A, ASHRAE Class A3, EN61000-3-2, EN61000-3-3 |
| Max Operating Temperature |
40 °C |
| Min Operating Temperature |
5 °C |
| Channel Qty |
2 |
| RAID Level |
RAID 0, RAID 1, JBOD |
| Type |
1 x SATA |
| Controller Interface Type |
SATA 6Gb/s |
| Installed Size |
27.5 MB |
| Cache Per Processor |
27.5 MB |
| OS Provided |
No operating system |
| Video Memory |
16 MB |
| Graphics Processor |
Matrox G200 |
| Weight |
7.1 kg |
| Height |
5.55 cm |
| Width |
21.55 cm |
| Depth |
49.27 cm |
| CPU Qty |
1 |
| Max CPU Qty |
2 |
| Clock Speed |
2.5 GHz |
| Max Turbo Speed |
3.9 GHz |
| Number of Cores |
20-core |
| Chipset Type |
Intel C624 |
| CPU |
Intel Xeon Gold 6248 |
