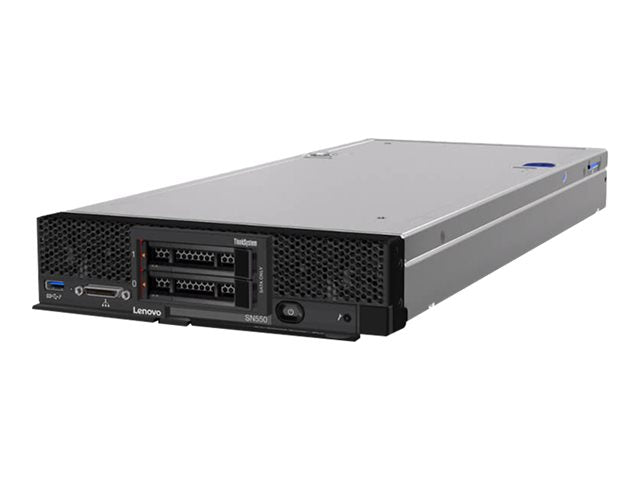

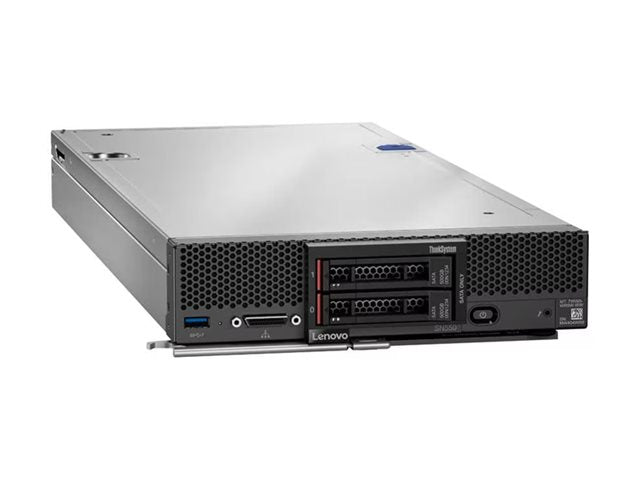

Lenovo ThinkSystem SN550 7X16
Lenovo ThinkSystem SN550 7X16
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description

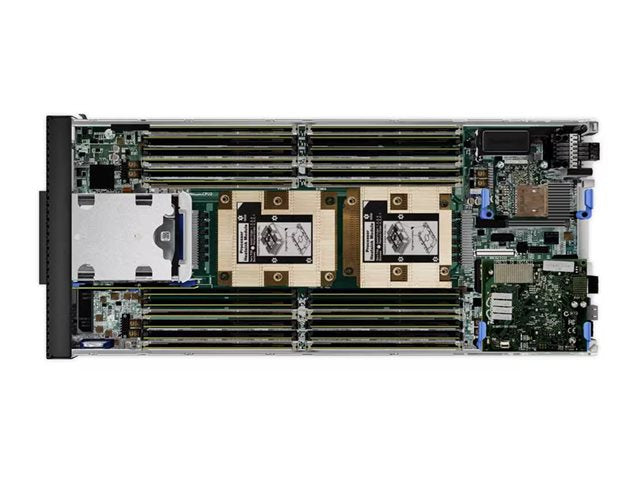

The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates up to two Intel Xeon Processor Scalable Family of processors. The processors feature up to 28 cores each and use Lenovo TruDDR4 memory, which runs at speeds up to 2666 MHz.
Product Features
Enhanced security: Equipped with Trusted Platform Module (TPM 1.2 and TPM 2.0), the Lenovo ThinkSystem SN550 offers robust security features to protect against unauthorized access and ensure data integrity.
Scalable performance: With support for up to 2 Intel Xeon Silver processors, the server offers scalability, making it an ideal choice for growing businesses that require increased processing power.
Advanced memory capabilities: Features such as Memory Mirroring, Memory Sparing, and TruDDR4 technology, combined with the capacity to hold up to 24 DIMM 288-pin DDR4 SDRAM modules, ensure high-speed, reliable memory performance.
Comprehensive compliance: Meets a wide range of compliance standards including ASHRAE Class A3, BSMI, CB, and many more, ensuring it meets global regulatory requirements and industry standards.

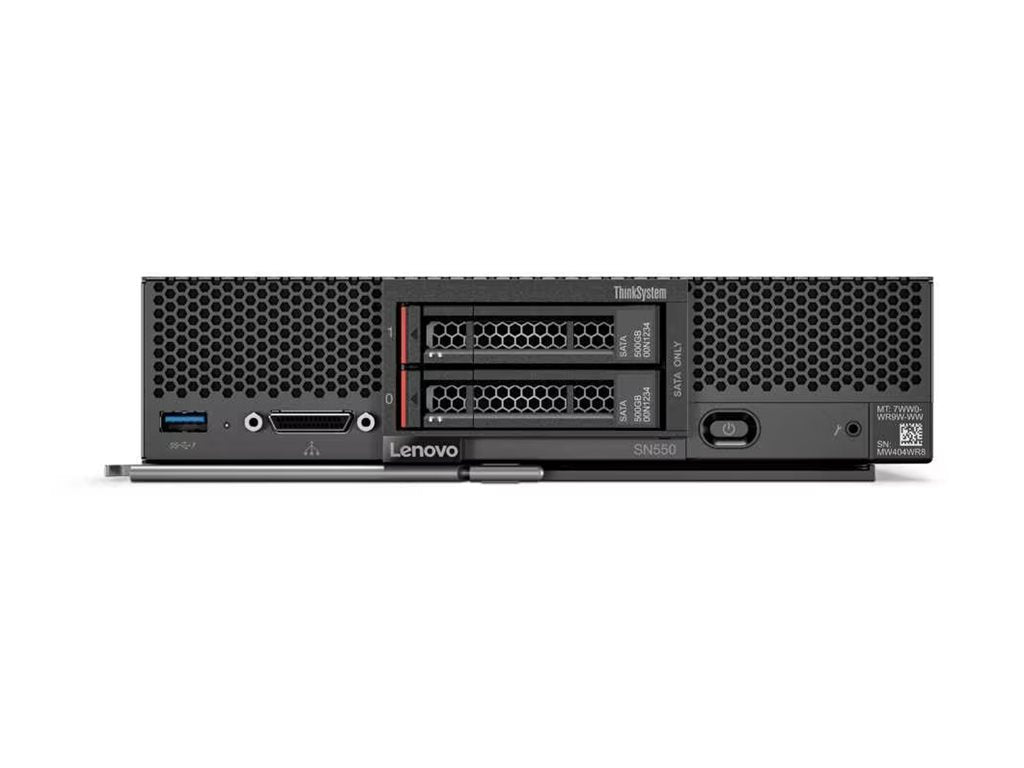

Versatile connectivity: Offers multiple interface options including USB 3.0 and management ports located in front for easy access, enhancing connectivity and management capabilities.
Main Specifications
General
| Type | Server |
|---|---|
| Server Scalability | 2-way |
| Product Form Factor | Blade |
| Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Localisation | Region: EMEA |
Expansion / Connectivity
| Slots | 2 (total) / 2 (free) x expansion slot |
|---|---|
| Interfaces |
1 x USB 3.0 (1 in front)
1 x management (1 in front)
|
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
|---|
RAM
| Installed Size | 32 GB |
|---|---|
| Configuration Features | 1 x 32 GB |
| Form Factor | DIMM 288-pin |
| Technology | DDR4 SDRAM - ECC Chipkill |
| Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, TruDDR4 |
| Effective Memory Speed | 2933 MHz |
| Slots | 24 (Total) / 23 (empty) |
| RAM Supported |
3 TB 3DS registered
6 TB - Memory Mode - Optane DC Persistent
7.5 TB - App Direct mode - Optane DC Persistent
|
| Rated Memory Speed | 1467 MHz |
Miscellaneous
| Included Accessories | M.2 Single Adapter |
|---|---|
| Compliant Standards | TUV GS, BSMI, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CB, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN24, KN22 Class A, CNS 14336, EK1-ITB2000, EN 55022 Class A, CNS 13438 Class A, ASHRAE Class A3, IEC/UL 60950-1 |
Storage Controller
| Channel Qty | 2 |
|---|---|
| RAID Level | RAID 0, RAID 1, JBOD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
Cache Memory
| Installed Size | 13.75 MB |
|---|---|
| Cache Per Processor | 13.75 MB |
Optical Storage
| Type | No optical drive |
|---|
Operating System / Software
| OS Provided | No operating system |
|---|
Monitor
| Monitor Type | None. |
|---|
Graphics Controller
| Video Memory | 16 MB |
|---|---|
| Graphics Processor | Matrox G200 |
Hard Drive
| Type | No HDD |
|---|
Dimensions & Weight
| Weight | 7.1 kg |
|---|---|
| Height | 5.1 cm |
| Width | 21.5 cm |
| Depth | 49.3 cm |
Processor / Chipset
| CPU Qty | 1 |
|---|---|
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Clock Speed | 2.4 GHz |
| Max Turbo Speed | 3.2 GHz |
| Number of Cores | 10-core |
| Processor Main Features | Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C624 |
| CPU | Intel Xeon Silver 4210R |
