MP500 KIT

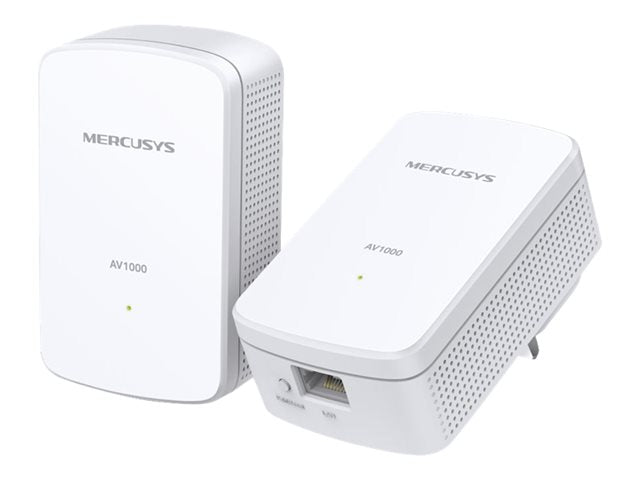

Mercusys MP500 KIT
Mercusys MP500 KIT
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share

Product Description
Product Features
Where there's an outlet, there's a network: The MP500 Kit transmits network data via existing electrical circuits, avoiding any negative influence obstacles have on the network. Enjoy a stable extended network with a transmission distance of up to 300 meters (on the same electrical circuit). Perfect for 4K streaming, online gaming, and graphics-intensive applications.
Fast, unlimited, enjoyable: Equipped with advanced HomePlug AV2 technology, the maximum powerline transmission rate reaches a stunning 1000 Mbps - with a gigabit port that delivers a high-quality network through any one of your outlets.
Plug and Play: Immediately extend your network as soon as you connect one, without complex wiring and configuration. Simply connect an MP500 adapter to your router and plug another one into any outlet where you need wired internet service.
Easy expansion: If a typical two-pack kit doesn't meet all your networking needs, simply add more Powerline adapters to expand your network to any room.
Main Specifications
General
Max Range Indoors | 300 m |
---|---|
Data Transfer Rate | 1 Gbps |
Status Indicators | Status |
Connectivity Technology | Wired |
Encryption Algorithm | 128-bit AES |
Packaged Quantity | 2 (specifications are for single item) |
Enclosure Type | Wall-pluggable |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, HomePlug AV, HomePlug AV 2.0, IEEE 1901, Plug and Play, RoHS |
Features | Reset button, pair button |
Device Type | Powerline adapter kit |
Expansion / Connectivity
Interfaces | LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 |
---|
Miscellaneous
Cables Included | 2 x network cable - 2 m |
---|
Power
Power Consumption Operational | 2.87 Watt |
---|
Environmental Parameters
Min Operating Temperature | 0 °C |
---|---|
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
Dimensions & Weight
Width | 6 cm |
---|---|
Depth | 3.6 cm |
Height | 10.1 cm |
Line Properties
Line Coding Format | OFDM |
---|
