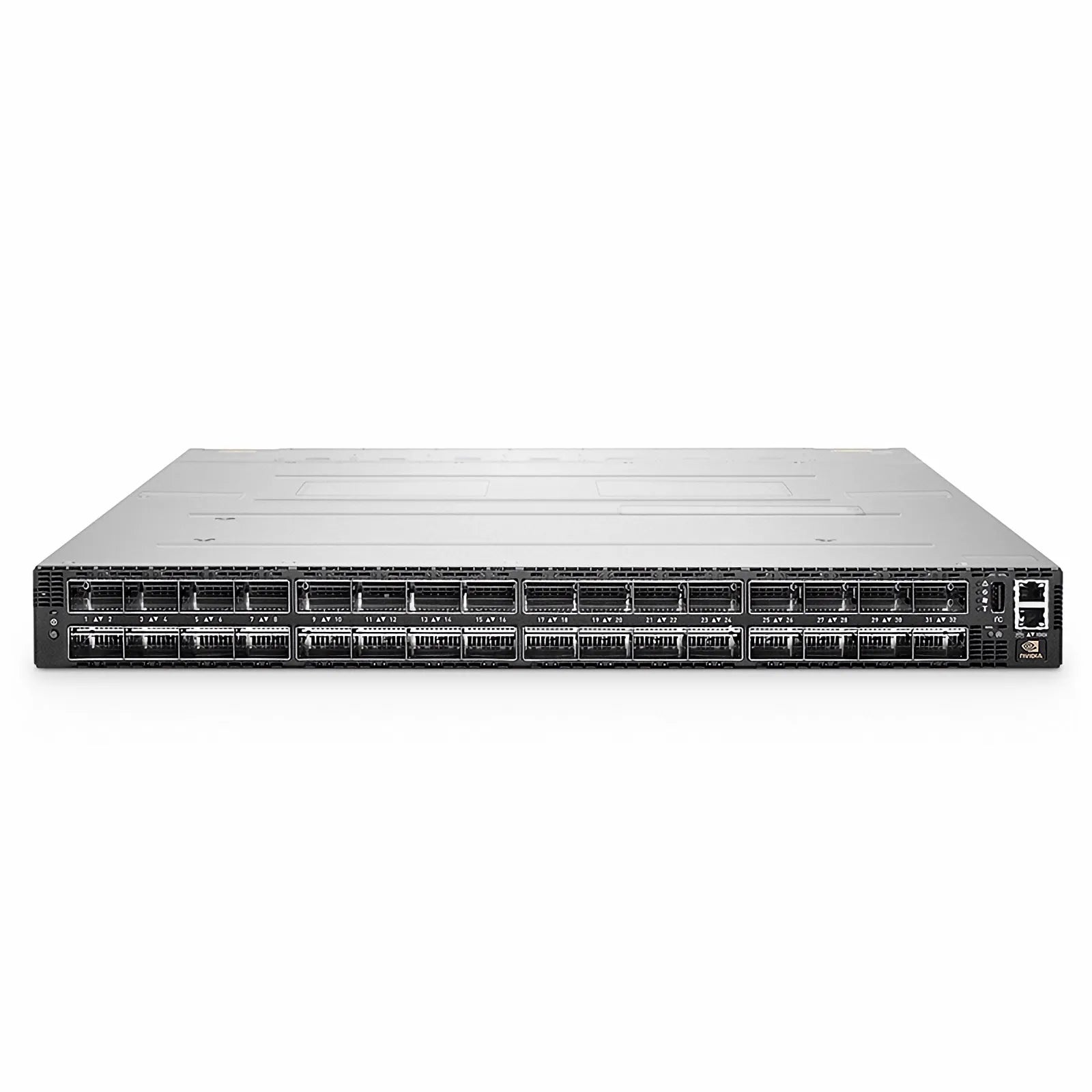

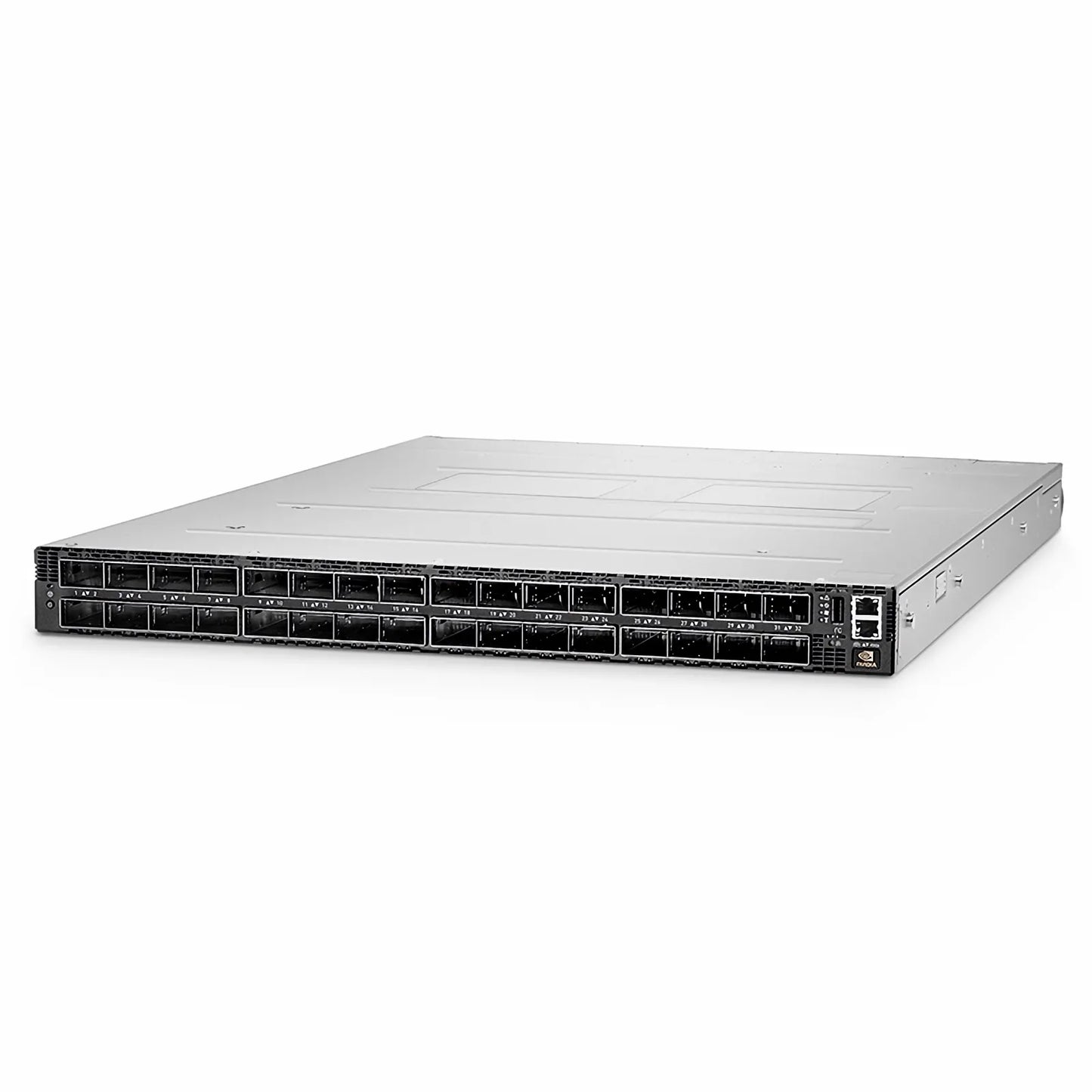

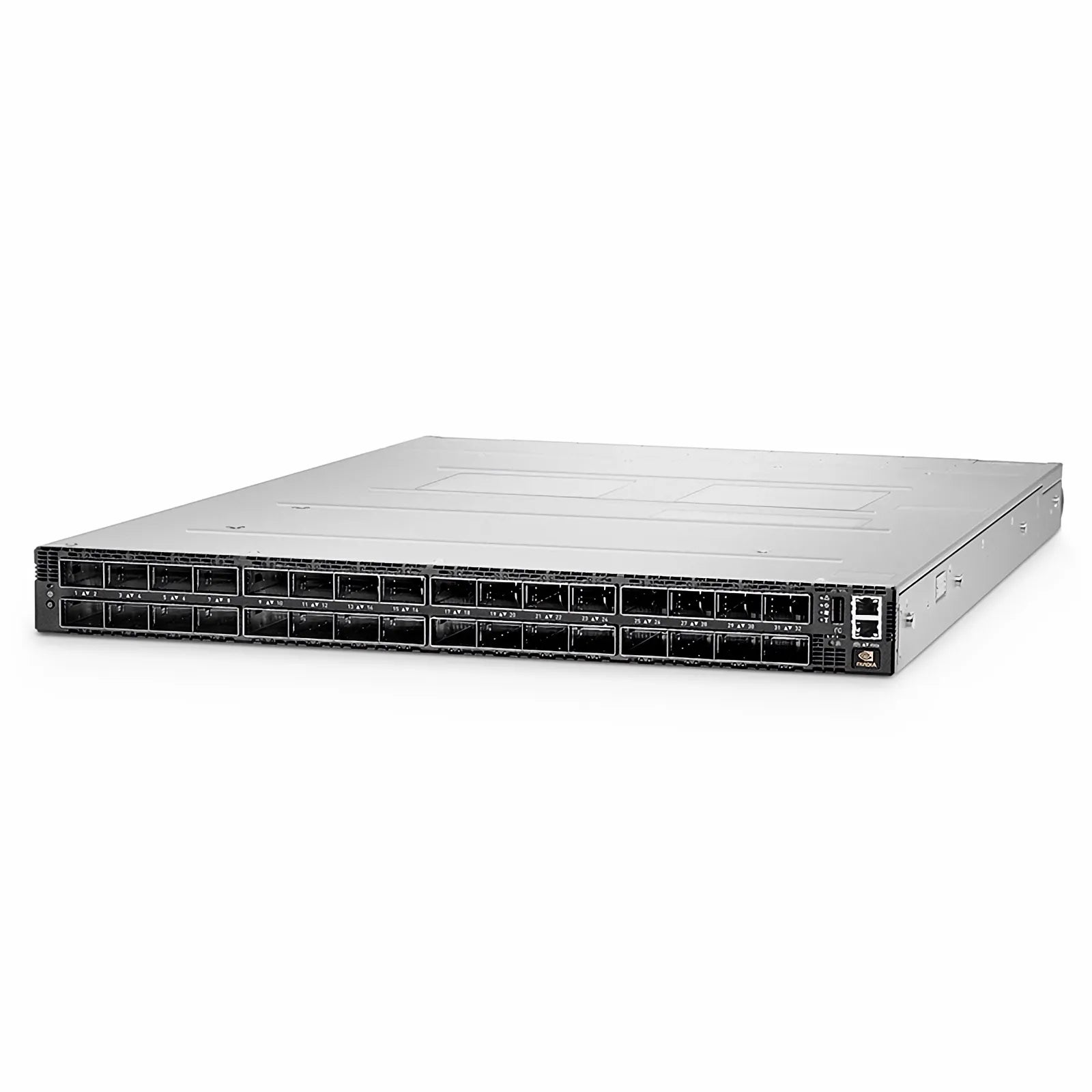

The NVIDIA Quantum-2-based MQM9700-NS2F switch comes with 64 400Gb/s ports on 32 physical octal small form-factor pluggable (OSFP) connectors that can be split to deliver up to 128 200Gb/s ports in a 1U standard chassis design. This switch uses connector cages that house two 400Gb/s ports in a single cage called 2x400G (800G) twin-port OSFP and are used exclusively in these air-cooled switches. A single switch carries an aggregated bidirectional throughput of 51.2 terabits per second (Tb/s), with a landmark of more than 66.5 billion packets per second (BPPS) capacity.

Supporting the latest NVIDIA high-speed interconnect 400Gb/s technology, NVIDIA Quantum-2 brings a high-speed, extremely low-latency and scalable solution that incorporates state-of-the-art technologies such as Remote Direct Memory Access (RDMA), adaptive routing, and NVIDIA Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™.

Specifications

• Ports: 64 x NDR 400G, 32 OSFP Connectors
• CPU: x86 Coffee Lake i3
• Switch Chip: NVIDIA QUANTUM-2
• Software: MLNX-OS
• Switching Capacity: 25.6 Tbps
• Typical Power Consumption: 747w
• Max. Power Consumption: 1703w
• System Memory: Single 8GB
• Storage: M.2 SSD SATA 16GB 2242 FF

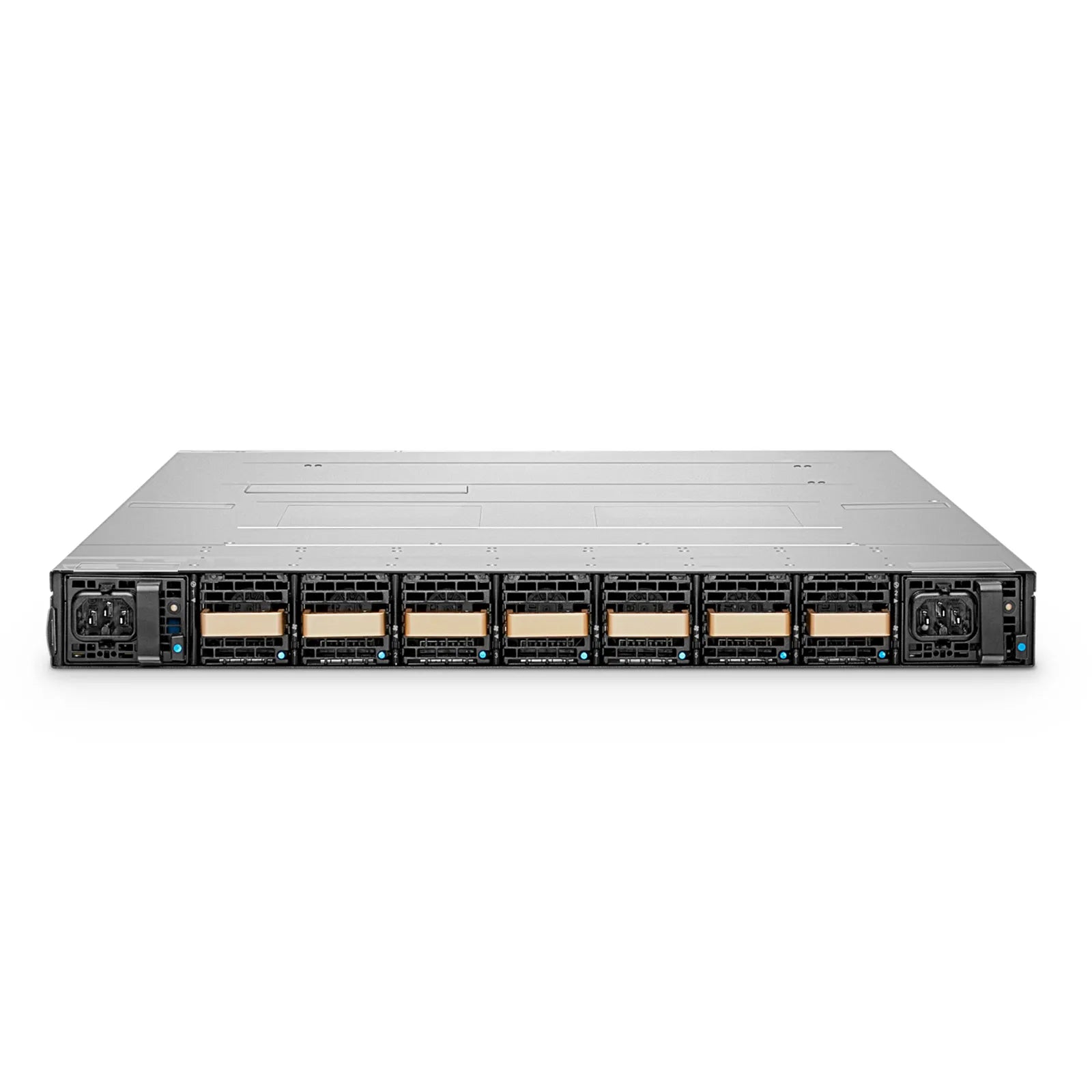

• AC Power Supplies: 1+1 Hot-swappable
• Fan Number: 6+1 Hot-swappable
• Airflow: Back-to-Front (P2C)
• Rack Units: 1 RU
