Product Description

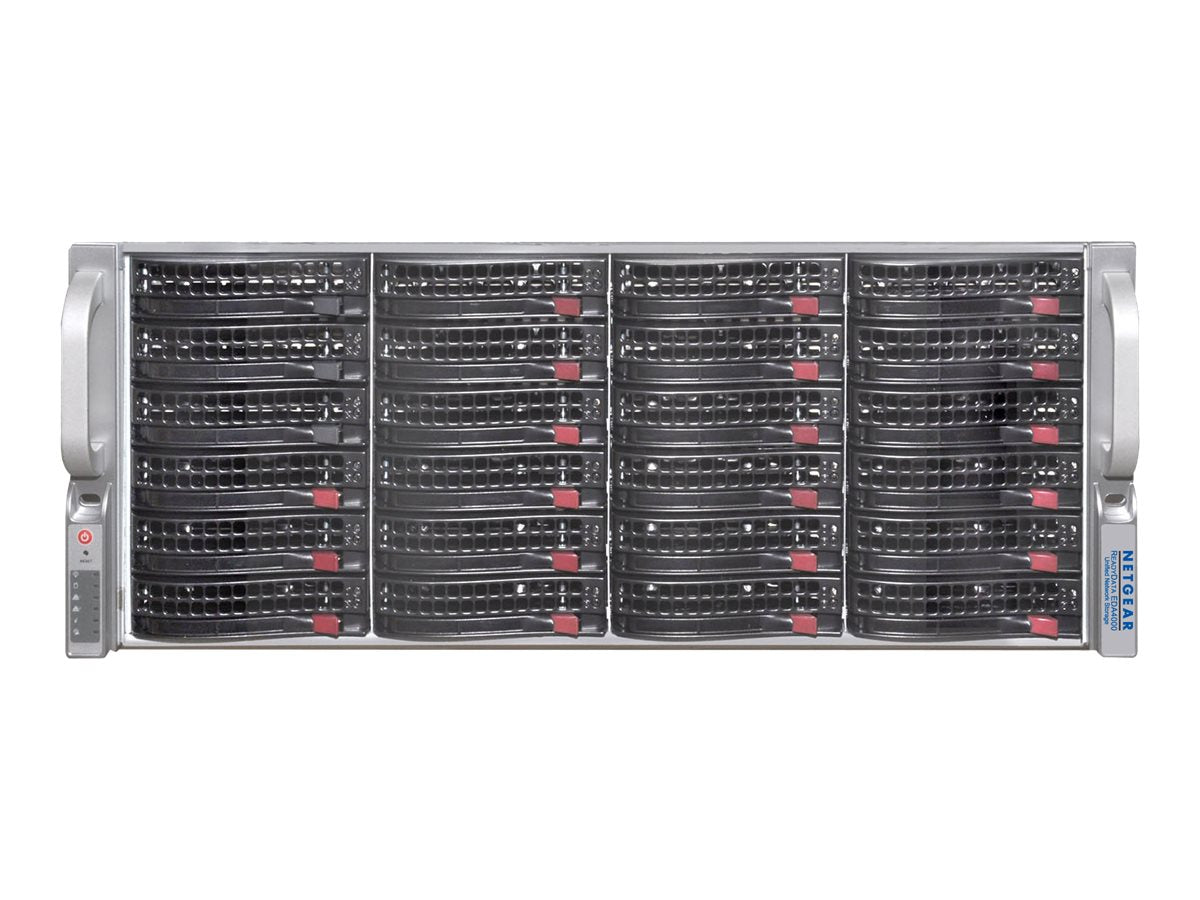

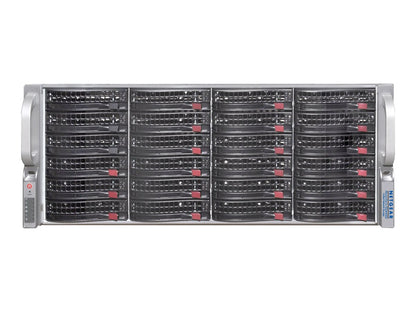

ReadyDATA redefines the concept of storage for small and medium businesses, remote offices/branch offices (ROBO), and departments within enterprise organizations. The ReadyDATA EDA4000 adds expansion capability to the ReadyDATA 5200 product family with 24-bays of storage in 4U form factor. The ReadyDATA family of unified storage was built with the needs of a growing business in mind. Each ReadyDATA 5200 can support up to two ReadyDATA EDA4000 using the 6G SAS expansion ports. For meeting the differing needs of specific applications, ReadyDATA users can mix and match SATA, near-line SAS, SAS, and SSD drives within volumes to provide optimal performance. Also, new drives can be easily added while the system is running for seamless expansion on-the-fly.
Main Specifications
| Device Type |
Hard drive array |
| Enclosure Type |
Rack-mountable - 4U |
| Expansion Bays |
24 (total) / 24 (free) x hot-swap |
| Service & Support |
Limited warranty - 5 years
Limited warranty - advance parts replacement - 3 years - on-site |
| Max Supported Capacity |
72 TB |
| HDD Array External Interface |
SAS |
| Compliant Standards |
VCCI, C-Tick, CCC, FCC, RoHS, KCC |
| Max Supported Qty |
2 |
| Power Redundancy |
Yes |
| Power Provided |
700 Watt |
| Power Redundancy Scheme |
1+1 |
| Power Device |
2 x internal power supply - hot-plug |
| Voltage Required |
AC 120/230 V - 50 - 60 Hz |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
20 - 80% (non-condensing) |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type |
RAID - integrated (SATA-300 / SAS) |
| Height |
17.8 cm |
| Width |
43.7 cm |
| Depth |
66 cm |
| Installed Devices / Modules Qty |
0 |
| Supported Devices / Modules Qty |
24 |
| Supported Drives |
SATA-300 / SAS |
