90MB1IE0-M0EAY0
ROG CROSSHAIR X870E HERO
ROG CROSSHAIR X870E HERO
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description

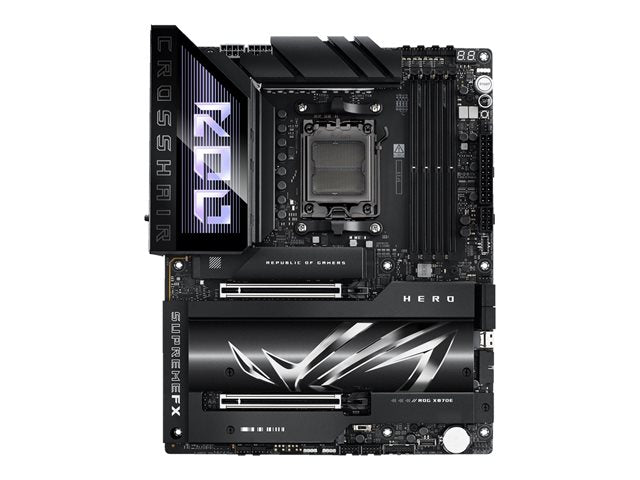

The ASUS ROG CROSSHAIR X870E HERO motherboard is engineered to provide gamers and performance enthusiasts with a robust foundation for high-performance computing. With compatibility for Ryzen 7000/8000/9000 Series processors and support for DDR5 SDRAM, this motherboard ensures efficient operation and speed. It features a UEFI BIOS designed for versatile adjustment and optimization, allowing users to tailor settings for enhanced performance.
Equipped with multiple expansion slots including M.2 and PCIe 5.0, this motherboard offers flexibility for future upgrades. ASUS's innovative features like AURA RGB lighting Control and Q-Code enhance the user experience by providing visual aesthetic options and ease of troubleshooting. With high-definition audio and advanced networking capabilities such as Wi-Fi 7 and Bluetooth 5.4, this model combines performance with connectivity, making it suitable for any setup aimed at gaming or creative workloads.
Product Features
Versatile expansion capabilities: The ASUS ROG CROSSHAIR X870E HERO is fitted with a variety of expansion slots, including PCIe 5. 0 and multiple M. 2 sockets, enabling flexibility for upgrades and performance enhancements tailored to the user's needs.
Efficient memory management: Supporting DDR5 SDRAM with capabilities for ECC modules, this motherboard ensures reliable performance, with features like AMD EXPO technology and NitroPath technology to optimize memory efficiency.
Enhanced audio experience: Equipped with SupremeFX audio codec and compliant with Dolby Atmos technology, the motherboard delivers high definition audio across 8 channels, enriching the overall multimedia experience whether for gaming or media consumption.
Advanced networking features: The motherboard provides connectivity options, including 5 Gigabit Ethernet and 2. 5 Gigabit Ethernet, alongside support for the latest Wi-Fi protocols ensuring seamless network performance and superior online connectivity.
Intuitive user features: With unique hardware features such as ASUS Q-Design and Q-Code, users gain a streamlined experience for installations and troubleshooting, making the ROG CROSSHAIR X870E HERO a formidable choice for both seasoned builders and newcomers alike.
- ASUS ROG CROSSHAIR X870E HERO
- 4 x SATA Express cable
- ROG thank you card, Q-Connector, USB drive, 2 x M.2 Q-Latch, ROG stickers, ASUS Wi-Fi Q-antenna, ARGB RGB extension cable, 3 x M.2 Q-Slide, 5 x M.2 rubber package, ROG bottle opener
- Software
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - ATX |
| Processor Socket | Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Chipset Type | AMD X870E |
Expansion / Connectivity
| RAID Features | AMD RAID Xpert2 Technology |
|---|---|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 2 x PCIe 5.0 x16 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x SlimSAS - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 2 x Thunderbolt 4/DisplayPort/USB4 2 x USB-C 3.2 Gen 2 6 x USB 3.2 Gen 2 1 x HDMI 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x LAN (5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out |
| Internal Interfaces | 2 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header |
Miscellaneous
| Depth | 24.4 cm |
|---|---|
| Width | 30.5 cm |
| Cables Included | 4 x SATA Express cable |
| Compliant Standards | DisplayPort 1.4a |
| Included Accessories | ARGB RGB extension cable, 2 x M.2 Q-Latch, 3 x M.2 Q-Slide, 5 x M.2 rubber package, ASUS Wi-Fi Q-antenna, Q-Connector, ROG bottle opener, ROG stickers, ROG thank you card, USB drive |
| Software Included | Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial), Drivers & Utilities |
Audio
| Type | HD Audio (8-channel) |
|---|---|
| Compliant Standards | High Definition Audio, Dolby Atmos |
| Audio Codec | SupremeFX ALC4082 / ESS ES9219 |
Features
| BIOS Type | AMI |
|---|---|
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), Clear CMOS Button, BIOS FlashBack button, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, FlexKey button, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, metal backplate, MicroFine Alloy Chokes, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, Start button, VRM heatsink design, Polymo Lighting II, 18+2+2 Phase Power Design, AI Cooling II, AI Networking II, AI Overclocking, AMD Precision Boost Overdrive (PBO), Core Flex technology, chipset heatsink |
LAN
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet |
|---|
Supported RAM
| Registered or Buffered | Unbuffered |
|---|---|
| Max Size | 192 GB |
| Technology | DDR5 |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Supported RAM Integrity Check | Non-ECC, ECC, on-die ECC |
| Bus Clock | 4100 Mhz (O.C), 4300 MHz (O.C.), 4000 MHz (O.C.) |
