SB580G-12G

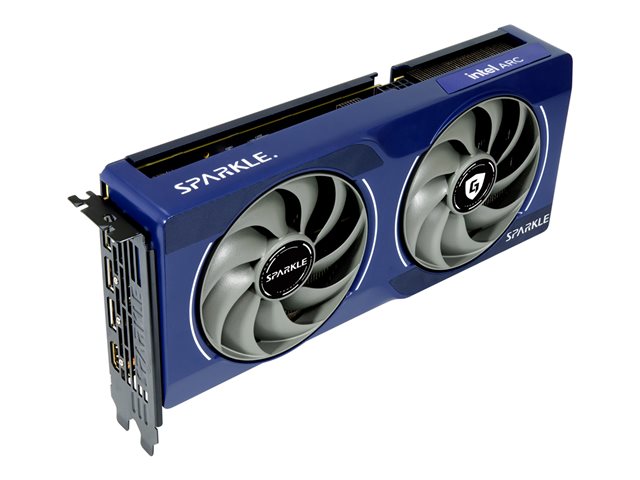

SPARKLE Intel Arc B580 GUARDIAN
SPARKLE Intel Arc B580 GUARDIAN
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The SPARKLE Intel Arc B580 GUARDIAN graphics card brings a powerful gaming experience with performance features. Equipped with 12 GB of GDDR6 SDRAM and a 192-bit bus width, this card delivers memory bandwidth of 456 GBps, ensuring smooth gameplay and efficient multitasking. With a NPU performance of up to 233 TOPS and a boost clock speed of 2670 MHz, it is engineered for computational tasks and high-resolution gaming. The card supports a maximum external resolution of 7680 x 4320, allowing for stunning visual clarity and enhanced gaming immersion across multiple monitors, with support for up to 4 displays simultaneously. The SPARKLE B580 GUARDIAN is compatible with various APIs including DirectX 12 and Vulkan 1.3, making it versatile for a range of applications.
Product Features
Memory performance: This graphics card utilizes GDDR6 SDRAM technology with a total installed size of 12 GB, paired with a 192-bit bus width for high-speed data processing.
Connectivity options: Equipped with three DisplayPort and one HDMI output, the card provides connectivity options supporting various display setups.
Thermal management: Featuring a 2. 2-slot Fan Cooler and a dual AXL fan design, the SPARKLE B580 GUARDIAN ensures cooling performance during intense usage.
Graphics capabilities: The presence of 20 Xe Cores and 20 Ray Tracing Units enables lifelike visuals and dynamic rendering techniques, enhancing the visual quality of games and applications.
API support: Compatible with OpenGL 4. 6, DirectX 12, and Vulkan 1. 3, this graphics card allows users to engage with a broad array of software and gaming options.
Main Specifications
General
| Max Monitors Supported | 4 |
|---|---|
| Device Type | Graphics card |
| Interfaces Details | HDMI 3 x DisplayPort |
| Max Resolution | 7680 x 4320 at 120 Hz |
| Bus Type | PCI Express 4.0 x8 |
| Boost Clock | 2670 MHz |
| API Supported | DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 3.0 |
| Graphics Engine | Intel Arc B580 |
| Max Resolution Details | DisplayPort: 7680 x 4320 at 60 Hz/ HDMI: 7680 x 4320 at 120 Hz |
| Features | Blue breathing light, 20 Xe Cores, 20 Ray Tracing Units, 160 Intel XMX Engines, TORN cooling 2.0, metal backplate, Ray Tracing, variable rate shading (VRS), Adaptive-Sync, AV1 encode support, AV1 decode support, VP9 support, Intel Deep Link Hyper Compute, Intel Deep Link Hyper Encode, Intel Deep Link Stream Assist, 2 x AXL fans, 2.2-slot Fan Cooler |
Memory
| Size | 12 GB |
|---|---|
| Bus Width | 192-bit |
| Technology | GDDR6 SDRAM |
| Bandwidth | 456 GBps |
Miscellaneous
| Width | 4.4 cm |
|---|---|
| Depth | 24.2 cm |
| Height | 10.5 cm |
| Power Consumption Operational | 190 Watt |
| Weight | 796 g |
System Requirements
| Required Power Supply | 600 W |
|---|---|
| Additional Requirements | 8 pin PCI Express power connector |
| OS Required | Windows 11, Windows 10 |
Performance
| NPU Performance Up To (TOPS) | 233 TOPS |
|---|
