HAT5300-16T

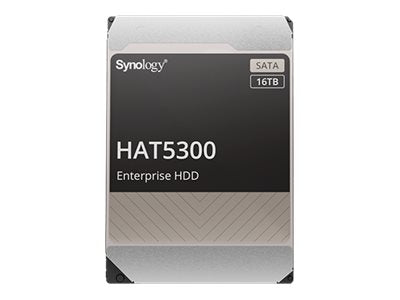

Synology HAT5300
Synology HAT5300
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Synology HAT5300 is designed to tackle demanding, high-volume workloads. Optimized specifically for Synology storage solutions, its design enables high sequential throughput, maximizing the number of concurrent clients the system can sustain. HAT5300 series drives are engineered for maximum dependability.
Product Features
Scale up confidently: Synology HAT5300 drives are engineered to provide fast and dependable performance, even for a large number of clients. Firmware and software collaborate to ensure maximum performance, delivering high sequential read performance. HAT5300 provides outstanding performance for large-scale video surveillance, multimedia post-production and enterprise file server environments.
Maximum endurance and reliability: Combined with data protection solutions running on Synology systems, you can confidently depend on your data 24/7 using HAT5300 series drives.
Simplified maintenance: DSM updates will ensure that compatible Synology drives will be updated together with the operating system. This reduces the number of maintenance sessions IT teams need to schedule while also increasing the entire system's service availability. Simplify IT infrastructure planning requirements by getting support for the entire system from Synology.
Main Specifications
General
| Buffer Size | 512 MB |
|---|---|
| Bytes per Sector | 512 |
| Form Factor | 3.5" |
| Depth | 147 mm |
| Weight | 720 g |
| Capacity | 16 TB |
| Device Type | Hard drive - internal |
| Height | 26.4 mm |
| Width | 101.85 mm |
| Interface | SATA 6Gb/s |
| Features | Workload up to 550 TB per year |
Manufacturer Warranty
| Service & Support | Limited warranty - 5 years |
|---|
Miscellaneous
| Compliant Standards | EAC, BSMI, RCM, KC, ICES, RoHS, TUV, UL |
|---|
Power
| Power Consumption | 4 Watt (idle) 7.63 Watt (random read/write) |
|---|
Environmental Parameters
| Max Operating Temperature | 60 °C |
|---|---|
| Min Operating Temperature | 5 °C |
| Max Storage Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
Performance
| Spindle Speed | 7200 rpm |
|---|---|
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 262 MBps |
Reliability
| 24x7 Operation | Yes |
|---|---|
| MTBF | 2,500,000 hours |
Expansion & Connectivity
| Compatible Bay | 3.5" |
|---|---|
| Interfaces | 1 x SATA 6 Gb/s |
