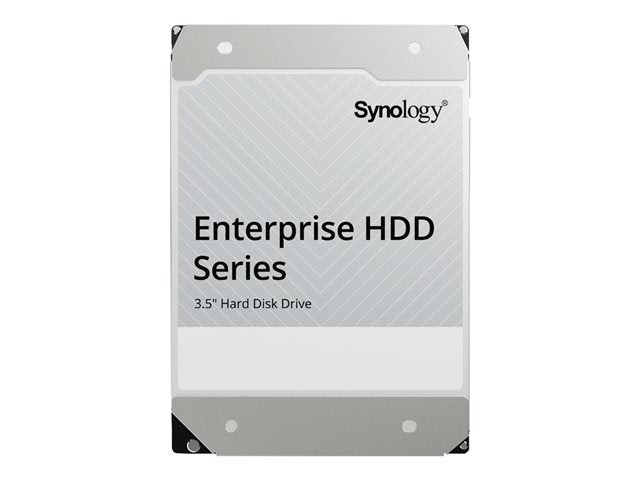

HAT5310-8T
Synology HAT5310
Synology HAT5310
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share

Product Description
The Synology HAT5310 internal hard drive offers reliability and performance for storage solutions. With a 3.5" form factor and a Serial ATA-600 interface, it integrates seamlessly into desktops and servers, supporting fast data transfer rates. Its 7200 rpm spindle speed enables quick access to stored information, suitable for demanding applications. Designed to operate effectively in temperatures from 5°C to 60°C, and capable of withstanding storage temperatures from -40C to 70°C, the HAT5310 is built for durability in various environments. Its compliance with a wide range of standards, including BSMI, EAC, ICES, KC, RCM, RoHS, TUV, UKCA, and UL, attests to its reliability and broad system compatibility.
Product Features
Robust durability: Designed to withstand the rigors of both operation and non-operation, the Synology HAT5310 hard drive features shock and vibration tolerance that ensures reliability in demanding environments. With operating shock tolerance at 2 ms and non-operating shock tolerance also at 2 ms, this hard drive is built to last.
High temperature resilience: The Synology HAT5310 is engineered to perform reliably in a wide range of environmental conditions. It operates optimally at temperatures up to 60°C and can withstand storage temperatures as high as 70°C, making it an ideal choice for systems exposed to high temperatures.
Extensive compatibility: This internal hard drive meets a variety of compliance standards, including BSMI, EAC, ICES, KC, RCM, RoHS, TUV, UKCA, and UL, ensuring its compatibility and reliability in a wide range of systems and regulatory environments.
Main Specifications
General
Buffer Size | 256 MB |
---|---|
Bytes per Sector | 512 |
Form Factor | 3.5" |
Depth | 147 mm |
Weight | 720 g |
Height | 26.1 mm |
Capacity | 8 TB |
Device Type | Hard drive - internal |
Width | 101.85 mm |
Interface | SATA 6Gb/s |
Features | Enterprise, workload up to 550 TB per year, Persistent Write Cache technology, NAS compatible |
Manufacturer Warranty
Service & Support | Limited warranty - 5 years |
---|
Miscellaneous
Compliant Standards | RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS |
---|
Power
Power Consumption | 5.61 Watt (idle) 9.29 Watt (random read/write) |
---|
Environmental Parameters
Max Operating Temperature | 60 °C |
---|---|
Min Operating Temperature | 5 °C |
Max Storage Temperature | 70 °C |
Min Storage Temperature | -40 °C |
Shock Tolerance (operating) | 70 g @ 2 ms |
Shock Tolerance (non-operating) | 250 g @ 2 ms |
Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
Humidity Range Operating | 5 - 90% RH (non-condensing) |
Performance
Spindle Speed | 7200 rpm |
---|---|
Internal Data Rate | 248 MBps |
Reliability
MTBF | 2,000,000 hours |
---|
Compatibility Information
Designed For | Synology RackStation RS1619xs+, RS3621xs+, RS4021xs+ |
---|
Expansion & Connectivity
Compatible Bay | 3.5" |
---|---|
Interfaces | 1 x SATA 6 Gb/s |
