SKU:10455591
TUF GAMING X870-PLUS WIFI
TUF GAMING X870-PLUS WIFI
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description

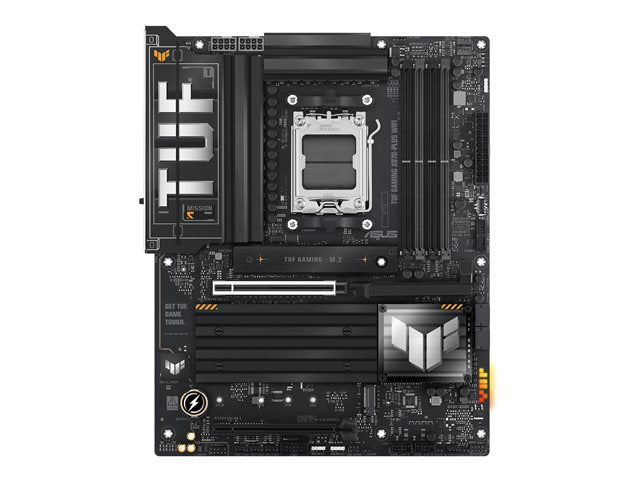

The ASUS TUF GAMING X870-PLUS WIFI motherboard offers a platform for building a gaming rig. Equipped with a socket AM5 processor interface, this motherboard supports Ryzen 7000/8000/9000 Series processors, ensuring compatibility with a range of components. With up to 4 DIMM slots supporting DDR5 SDRAM and clock speeds of up to 4000 MHz (O.C.), this motherboard caters to those seeking enhanced memory performance. Featuring multiple expansion slots including PCIe 5.0 x16 and M.2 Key M slots, the TUF GAMING X870-PLUS provides ample opportunities for upgrades and customization. The board includes connectivity options such as 2.5 Gigabit Ethernet, USB4, and Wi-Fi 7 capabilities, ensuring fast and reliable networking. This motherboard is designed with durability in mind, featuring ESD Guards, a steel backplate, and ASUS TUF Protection for longevity and performance stability.
Product Features
Powerful connectivity options: The motherboard provides extensive connectivity options, including 2. 5 Gigabit Ethernet, Wi-Fi 7, multiple USB4 ports, and USB 3. 2 configuration for various devices.
Robust audio capabilities: Featuring high definition audio compliant with Realtek ALC1220P, this motherboard supports an 8-channel audio output, ensuring immersive sound quality in gaming and multimedia.
Efficient cooling design: Equipped with an M. 2 heatsink and VRM heatsink design, the board ensures optimal thermal performance during high-intensity tasks, preventing overheating and maintaining system stability.
Versatile expansion slots: The motherboard features multiple expansion slots, including PCIe 5. 0 x16 and several M. 2 Key M slots, allowing users to enhance their systems with additional GPUs and SSDs.
User-friendly BIOS features: Designed with AMI BIOS and ASUS EZ Flash 3, the motherboard offers easy updates and configuration, catering to both novice and experienced users.
- ASUS TUF GAMING X870-PLUS WIFI
- 2 x Serial ATA cable
- 2 x M.2 rubber package, M.2 screw package, TUF GAMING sticker, ASUS Wi-Fi Q-antenna
- Software
Main Specifications
General
| Max Processors Qty | 1 |
|---|---|
| Product Type | Motherboard - ATX |
| Processor Socket | Socket AM5 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Chipset Type | AMD X870 |
Expansion / Connectivity
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
|---|---|
| RAID Features | AMD RAID Xpert2 Technology |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x serial - header 1 x audio - header |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 3 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x HDMI 2 x aerial 2 x Thunderbolt 4/DisplayPort/USB4 3 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack |
Miscellaneous
| Depth | 24.4 cm |
|---|---|
| Width | 30.5 cm |
| Cables Included | 2 x Serial ATA cable |
| Included Accessories | 2 x M.2 rubber package, ASUS Wi-Fi Q-antenna, M.2 screw package, TUF GAMING sticker |
| Software Included | Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial) |
Audio
| Compliant Standards | High Definition Audio |
|---|---|
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220P |
Features
| BIOS Type | AMI |
|---|---|
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| BIOS Features | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Hardware Features | ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 16+2+1 Phase Power Design, AI Overclocking, AI Cooling II, AI Networking II, chipset heatsink, AMD Precision Boost Overdrive (PBO), 8 Layer PCB |
LAN
| Network Interfaces | 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4 |
|---|
Supported RAM
| Registered or Buffered | Unbuffered |
|---|---|
| Max Size | 192 GB |
| Bus Clock | 4000 MHz (O.C.) |
| Technology | DDR5 |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Supported RAM Integrity Check | On-die ECC, non-ECC, ECC |
