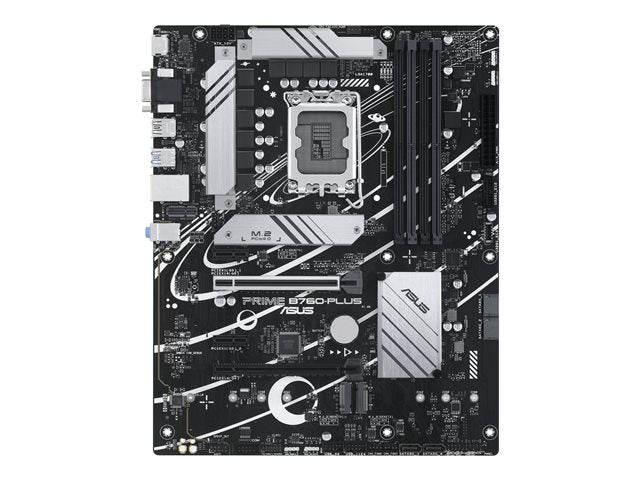

ASUS PRIME B760-PLUS

ASUS PRIME B760-PLUS

£114.13
£114.13
Sale Sold out
taxes included

In Stock - Delivery from tomorrow

FREE Delivery to most of the UK
View full details

Product Description

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processor. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Product Features

Flexibility: Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control: ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

Cooling: PRIME B760-PLUS motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Performance: The PRIME B760-PLUS motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel Core processor. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Main Specifications

General

Max Processors Qty 1
Product Type Motherboard - ATX
Processor Socket LGA1700 Socket
Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Chipset Type Intel B760

Expansion / Connectivity

Power Connectors 24-pin main power connector, 8-pin ATX12V connector
RAID Features Intel Rapid Storage Technology
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2
Expansion Slots 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 3.0 x1
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (Key E)
Interfaces 1 x DisplayPort
1 x VGA
1 x HDMI
1 x USB-C 3.2 Gen2x2
2 x USB 3.2 Gen 2
1 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out - mini-jack
Internal Interfaces 1 x USB-C 3.2 Gen 1 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x serial - header
1 x audio - header
1 x SPDIF out - header
1 x SPI - header
1 x Thunderbolt - header

Miscellaneous

Depth 24.4 cm
Width 30.5 cm
Cables Included 2 x Serial ATA cable
Included Accessories IO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package
Software Included Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR

Audio

Compliant Standards High Definition Audio
Type HD Audio (8-channel)

Features

BIOS Type AMI
Sleep / Wake Up Wake on LAN (WOL), wake on PME
BIOS Features UEFI BIOS, ASUS UEFI BIOS EZ Mode, ASUS EZ Flash 3
Hardware Features ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS OptiMem II, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, LANGuard, M.2 heatsink, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, audio jack detect technology, jack retasking, DIY Friendly Design

LAN

Network Interfaces 2.5 Gigabit Ethernet

Supported RAM

Registered or Buffered Unbuffered
Max Size 128 GB
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Technology DDR5
Supported RAM Integrity Check Non-ECC, on-die ECC
Bus Clock 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)
