SKU:2610811

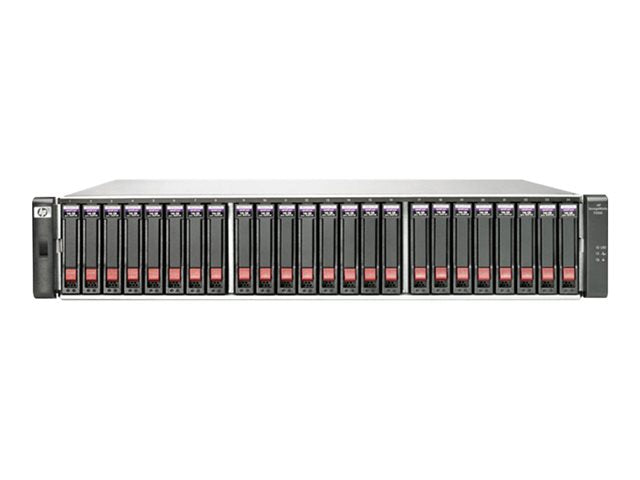

HPE P2000 G3 iSCSI Dual Controller
HPE P2000 G3 iSCSI Dual Controller
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Hewlett Packard's 2000 family of storage arrays are designed for entry-level customers and feature host-connect technology while offering excellent price/performance. They are ideal for companies with small budgets or limited IT expertise, and also larger companies with departmental or remote requirements. Each solution is designed to be easy to deploy, to be secure, along with low management costs, while driving rapid return on investment through efficient storage consolidation.
This P2000 G3 supports hot plug replacement of redundant controllers, fans, power supplies, and I/O modules. Hot add of expansion enclosures is also supported.
Main Specifications
| Device Type |
Hard drive array
|
| Enclosure Type |
Rack-mountable - 2U
|
| Expansion Bays |
24 (total) / 12 (free) - 2.5" SFF
|
| Interfaces |
8 x Ethernet 1000Base-T - RJ-45
2 x management - mini-USB Type B
2 x management - RJ-45
2 x SAS 6Gb/s - 26 pin 4x Shielded Mini MultiLane SAS (SFF-8088)
|
| Maximum LUNs |
512
|
| Total Array Capacity |
7.2 TB
|
| HDD Array External Interface |
iSCSI
|
| Compliant Standards |
CISPR 22 Class A, CISPR 24, EN55022, EN55024, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, RoHS, FCC CFR47
|
| Power Redundancy |
Yes
|
| Power Redundancy Scheme |
1+1
|
| Power Device |
2 x internal power supply - hot-plug
|
| Voltage Required |
AC 120/230 V - 50 - 60 Hz
|
| Max Operating Temperature |
40 °C
|
| Min Operating Temperature |
5 °C
|
| Humidity Range Operating |
10 - 90% (non-condensing)
|
| Installed Qty |
2
|
| Cache / Buffer Size (Max) |
2 GB
|
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10, RAID 50
|
| Data Transfer Rate |
600 MBps
|
| Interface Type |
SATA 3Gb/s / SAS 6Gb/s
|
| Type |
RAID (iSCSI)
|
| OS Required |
HP-UX, Red Hat Linux, SUSE Linux Enterprise Server, Microsoft Windows Server 2003, HP OpenVMS, Microsoft Windows Server 2003 R2 Enterprise Edition SP2, Microsoft Windows Server 2003 R2, Microsoft Windows Server 2008 Datacenter x64 Edition, Microsoft Windows Server 2008 Enterprise x64 Edition, Microsoft Windows Server 2008 Standard x64 Edition
|
| Installed Qty |
2
|
| Spindle Speed |
10000 rpm
|
| Capacity |
12 x 600 GB
|
| Type |
No HDD
|
| Interface Type |
SAS 6Gb/s
|
| Width |
44.7 cm
|
| Height |
8.9 cm
|
| Depth |
51.1 cm
|
| Weight |
14.7 kg
|
| Supported Devices / Modules Qty |
24
|
| Installed Devices / Modules Qty |
12
|
| Supported Drives |
SATA-300 / SAS-2
|
