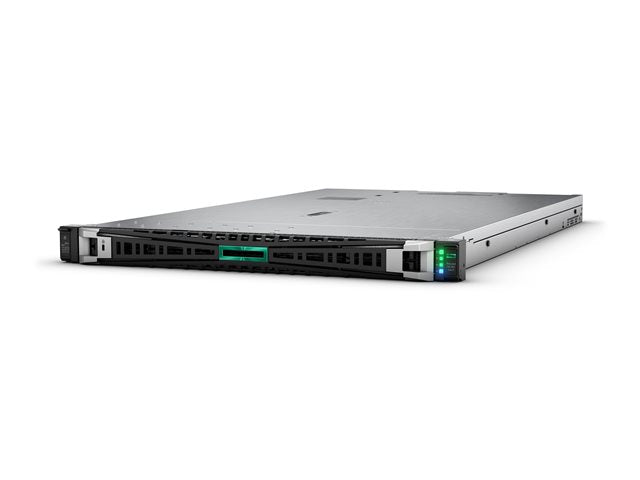

HPE ProLiant DL360 Gen11 Network Choice
HPE ProLiant DL360 Gen11 Network Choice
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen11 delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency, the HPE ProLiant DL360 Gen11 is ideal for IT infrastructure, either physical, virtual, or containerized.
| Product Description | HPE ProLiant DL360 Gen11 Network Choice - rack-mountable Xeon Gold 5416S 2 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Region: European Union |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Gold 5416S / 2 GHz (up to 4 GHz, (16-core) |
| Processor Socket | LGA4677 Socket-E |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Cache Memory | 30 MB L3 Cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 4 TB (max) - DDR5 SDRAM - Advanced ECC |
| Storage Controller | RAID (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE, 10GbE |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | HPE Server UEFI |
| Dimensions (WxDxH) | 43.46 cm x 75.31 cm x 4.29 cm |
| Weight | 14.56 kg |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
Efficient design
The HPE ProLiant DL360 Gen11 Network Choice is engineered in a rack-mountable form factor, offering a compact and efficient design that is ideal for businesses looking to maximize their data center space. With 8 hot-swap bays and a universal media bay, it provides flexible storage options and easy maintenance.
Advanced connectivity
Featuring a diverse range of interfaces including HPE iLO for remote management, USB 3. 2 Gen 1, and VGA ports, this server ensures high-speed connectivity and comprehensive control options for administrators. The inclusion of PCIe 5. 0 x16 slots further enhances its capability to support high-performance computing needs.
Robust performance
Powered by an Intel Xeon Gold processor and equipped with HPE SmartMemory, the DL360 Gen11 delivers exceptional performance and reliability. Its design supports up to 2 processors, allowing for scalable computing power to meet growing business demands.
Energy efficiency
ENERGY STAR certified, the HPE ProLiant DL360 Gen11 Network Choice demonstrates a commitment to environmental sustainability without compromising on performance. It operates within a wide range of humidity and temperature levels, ensuring reliability in various operating conditions.
Secure and compliant
Adhering to multiple compliance standards including ACPI 6. 4, AES, and FIPS 140-2, this server ensures data security and operational integrity. Its support for advanced encryption and secure remote management protocols makes it a trustworthy platform for sensitive data processing.
| Type |
Server
|
| Hot-Swap Bays Qty |
8
|
| Built-in Devices |
Led panel
|
| Server Scalability |
2-way
|
| Product Form Factor |
Rack-mountable - 1U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: European Union
|
| Bays |
1 (total) / 1 (free) x external Universal Media Bay
8 (total) / 8 (free) x hot-swap 2.5" SFF
|
| Slots |
2 (total) / 2 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
|
| Interfaces |
1 x HPE iLO - Type A (1 in front)
1 x HPE iLO - RJ-45
4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
1 x VGA
2 x LAN (10Gigabit Ethernet)
1 x USB 2.0
|
| Service & Support |
Limited warranty - parts and labour - 3 years - on-site - response time: next business day
|
| Configuration Features |
1 x 32 GB
|
| Form Factor |
DIMM 288-pin
|
| Rated Memory Speed |
4800 MHz
|
| Slots |
16 (Total) / 15 (empty)
|
| Effective Memory Speed |
4400 MHz
|
| Technology |
DDR5 SDRAM - Advanced ECC
|
| Installed Size |
32 GB (installed) / 4 TB (max)
|
| Features |
Dual rank, registered, slots 17 - 32 are available in two-processor configuration only, HPE SmartMemory, 8-channel memory architecture
|
| Data Link Protocol |
Gigabit Ethernet, 10 Gigabit Ethernet
|
| Ethernet Ports |
2 x 10 Gigabit Ethernet
|
| Interface (Bus) Type |
PCI Express 3.0 x8
|
| Ethernet Controller |
Broadcom BCM57416
|
| Remote Management Controller |
Integrated Lights-Out 6
|
| Features |
PXE support, Wake on LAN (WoL)
|
| Remote Management Protocol |
SNMP 3, SMASH CLP, IPMI 2.0
|
| Included Accessories |
5 x standard fans, HPE Easy Install Rail 3 Kit withot CMA
|
| Compliant Standards |
ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, ErP Lot 9
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
800 Watt
|
| Voltage Required |
AC 100-240 V
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Titanium
|
| Min Operating Temperature |
10 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
8 - 90% RH (non-condensing)
|
| Channel Qty |
14
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10
|
| Type |
1 x RAID
|
| Controller Interface Type |
SATA 6Gb/s
|
| Storage Controller Name |
Intel VROC SATA Software RAID
|
| Cache Per Processor |
30 MB
|
| Installed Size |
L3 Cache - 30 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| Software |
HPE Server UEFI
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Type |
No HDD
|
| Height |
4.29 cm
|
| Width |
43.46 cm
|
| Weight |
14.56 kg
|
| Depth |
75.31 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
2
|
| CPU Upgradability |
Upgradable
|
| Clock Speed |
2 GHz
|
| Max Turbo Speed |
4 GHz
|
| Number of Cores |
16-core
|
| CPU Socket |
LGA4677 Socket-E
|
| Chipset Type |
Intel C741
|
| CPU |
Intel Xeon Gold 5416S
|
| Processor Main Features |
Intel Turbo Boost Technology 2, Hyper-Threading Technology
|
| ENERGY STAR Version |
3.0
|
| ENERGY STAR Certified |
Yes
|
