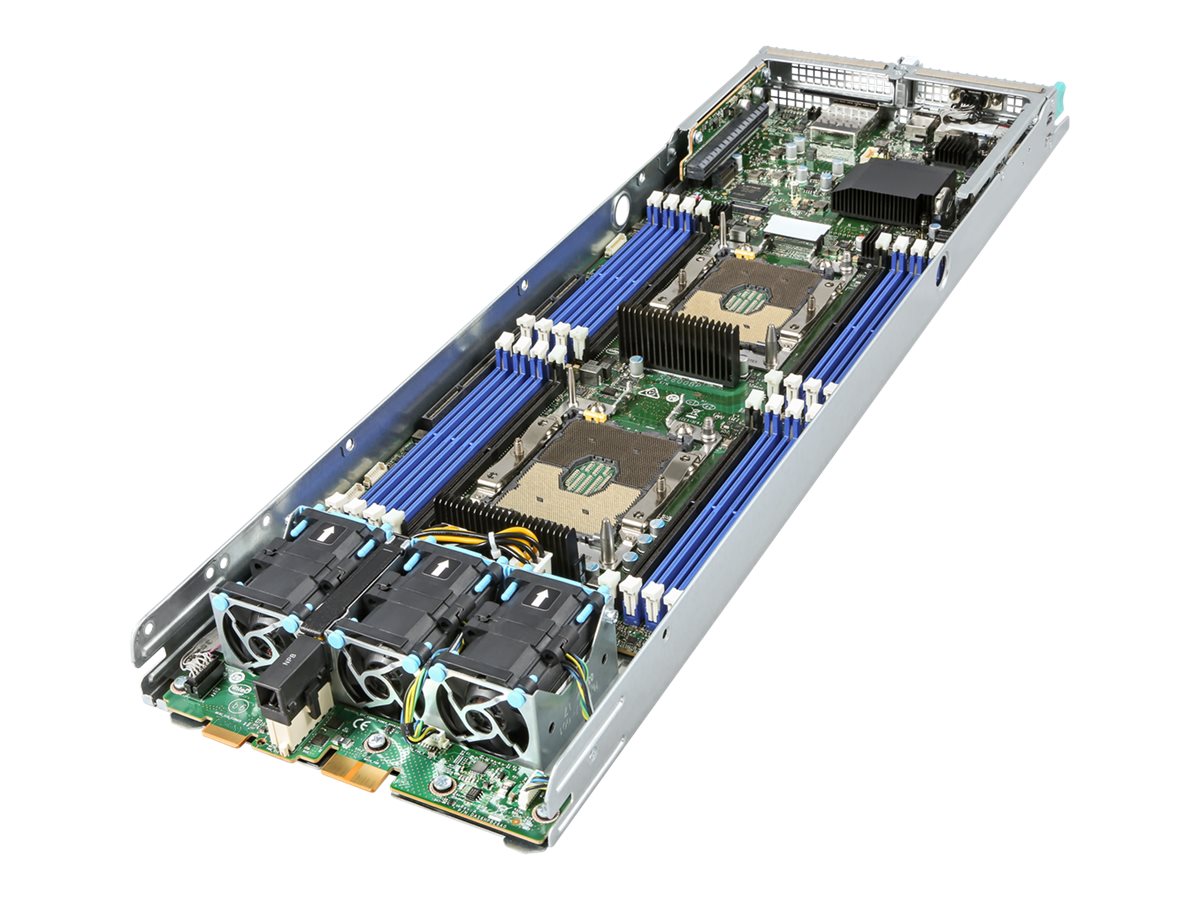

Intel Compute Module HNS2600BPB24R
Intel Compute Module HNS2600BPB24R
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The Intel Compute Module HNS2600BPB24R is a powerful, blade form factor server designed to meet the needs of modern data centers and high-demand computing environments. With no CPU included, it offers the flexibility to customize the processing power to match specific requirements. The module supports 2-way server scalability and is equipped with 16 DIMM slots for DDR4 SDRAM, ensuring ample memory capacity for even the most memory-intensive applications. Networking is made robust with dual 10 Gigabit Ethernet ports and an integrated BMC with IPMI 2.0 for remote management. Storage flexibility is a key feature, with support for up to 8 Serial ATA-600 channels and various RAID configurations, providing reliable data storage options. Additionally, the server's security is bolstered by a Trusted Platform Module (TPM 2.0) security chip, safeguarding data against external threats. This server module is an ideal choice for businesses looking for a scalable, secure, and high-performance computing solution.
| Product Description | Intel Compute Module HNS2600BPB24R - blade - no CPU - 0 GB - no HDD |
| Type | Server - blade |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | Socket P |
| RAM | 0 GB DDR4 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Networking | 1GbE, 10GbE |
| Manufacturer Warranty | Limited warranty - 3 years |
High scalability
Designed for growth and scalability, the Intel Compute Module HNS2600BPB24R supports 2-way server scalability with two processor sockets, allowing for significant performance upgrades. With 16 DIMM slots supporting DDR4 SDRAM, it offers extensive memory capacity and speed for demanding applications.
Advanced networking
Equipped with dual 10 Gigabit Ethernet ports, this server module ensures high-speed networking capabilities, ideal for data-intensive environments. Integrated BMC with IPMI 2. 0 provides efficient remote management, making it easier to monitor and manage network performance.
Flexible storage options
With support for up to 8 Serial ATA-600 channels and various RAID levels (RAID 0, RAID 1, RAID 10, RAID 5, RAID 50), the module offers flexible storage solutions, catering to diverse data storage and security needs.
Robust security features
The inclusion of a Trusted Platform Module (TPM 2. 0) security chip ensures that data stored on the server is protected against external threats, providing a secure foundation for critical applications.
| Type |
Server
|
| Server Scalability |
2-way
|
| Product Form Factor |
Blade
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Slots |
1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile)
1 (total) / 1 (free) x M.2 Card - 2242
|
| Interfaces |
1 x VGA
2 x USB 3.0
2 x LAN (10Gigabit Ethernet) - RJ-45
1 x serial
|
| Service & Support |
Limited warranty - 3 years
|
| Installed Size |
0 GB
|
| Features |
Registered, Load-Reduced DIMM (LRDIMM)
|
| Form Factor |
DIMM 288-pin
|
| Technology |
DDR4 SDRAM - ECC
|
| Slots |
16 (Total) / 16 (empty)
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
|
| Remote Management Protocol |
IPMI 2.0
|
| Remote Management Controller |
Intel Baseboard Management Controller (BMC)
|
| Ethernet Ports |
2 x 10 Gigabit Ethernet
|
| Features |
Integrated BMC with IPMI
|
| Included Accessories |
2 x CPU Heatsink, air duct, 2 x riser cards, node power board, 1U node tray, 3 x system fans, external VGA port bracket, Intel Server Board S2600BPBR
|
| Channel Qty |
8
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
|
| Type |
SATA
|
| Controller Interface Type |
SATA 6Gb/s
|
| Type |
No optical drive
|
| Monitor Type |
None.
|
| Video Interfaces |
VGA
|
| Type |
No HDD
|
| Max CPU Qty |
2
|
| CPU Upgradability |
Upgradable
|
| CPU |
No CPU
|
| CPU Socket |
Socket P
|
| Chipset Type |
Intel C621
|
