SKU:5276016

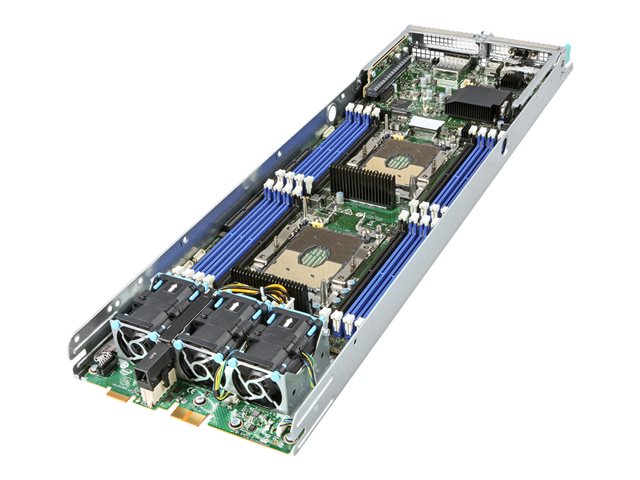

Intel Compute Module HNS2600BPS24R
Intel Compute Module HNS2600BPS24R
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The Intel Compute Module HNS2600BP product family is a purpose-built 1U density optimized compute module designed to operate as a single system node within a multi-node chassis.
Equipped with 2 x SFP+ and 2 x LAN (10 Gigabit Ethernet) ports, this Intel Compute Module ensures high-speed networking capabilities, ideal for data-intensive applications and fast-paced work environments.
Featuring 8 Serial ATA-600 channels and supporting various RAID levels (RAID 0, RAID 1, RAID 10, RAID 5, RAID 50), this module offers flexible and secure storage solutions to meet diverse needs.
With support for up to 2 CPUs and 16 DDR4 SDRAM slots, the Intel Compute Module HNS2600BPS24R allows for significant scalability, making it suitable for growing business demands.
The inclusion of a Trusted Platform Module (TPM 2. 0) security chip provides a foundation for secure hardware-based data protection and ensures a safer computing environment.
Integrated BMC with IPMI 2. 0 support offers comprehensive remote management capabilities, enabling efficient monitoring and control of the server system remotely.
| Product Description | Intel Compute Module HNS2600BPS24R - blade - no CPU - 0 GB - no HDD |
| Type | Server - blade |
| Server Scalability | 2-way |
| Processor | No CPU |
| Processor Socket | Socket P |
| RAM | 0 GB (installed) / 2.8 TB (max) - DDR4 SDRAM - ECC |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2500 |
| Networking | 1GbE, 10GbE |
| Dimensions (WxDxH) | 17.75 cm x 63.103 cm x 4.081 cm |
| Weight | 4.32 kg |
| Manufacturer Warranty | Limited warranty - 3 years |
Advanced connectivity
Equipped with 2 x SFP+ and 2 x LAN (10 Gigabit Ethernet) ports, this Intel Compute Module ensures high-speed networking capabilities, ideal for data-intensive applications and fast-paced work environments.
Robust storage options
Featuring 8 Serial ATA-600 channels and supporting various RAID levels (RAID 0, RAID 1, RAID 10, RAID 5, RAID 50), this module offers flexible and secure storage solutions to meet diverse needs.
High scalability
With support for up to 2 CPUs and 16 DDR4 SDRAM slots, the Intel Compute Module HNS2600BPS24R allows for significant scalability, making it suitable for growing business demands.
Enhanced security
The inclusion of a Trusted Platform Module (TPM 2. 0) security chip provides a foundation for secure hardware-based data protection and ensures a safer computing environment.
Efficient management
Integrated BMC with IPMI 2. 0 support offers comprehensive remote management capabilities, enabling efficient monitoring and control of the server system remotely.
| Type |
Server
|
| Server Scalability |
2-way
|
| Product Form Factor |
Blade
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Slots |
1 (total) / 1 (free) x M.2 Card - 2242
4 (total) / 4 (free) x expansion slot
|
| Interfaces |
1 x VGA
2 x USB 3.0
2 x LAN (10Gigabit Ethernet) - SFP+
1 x management - RJ-45
|
| Service & Support |
Limited warranty - 3 years
|
| Features |
Registered, Load-Reduced DIMM (LRDIMM)
|
| Form Factor |
DIMM 288-pin
|
| Technology |
DDR4 SDRAM - ECC
|
| Slots |
16 (Total) / 16 (empty)
|
| Installed Size |
0 GB / 2.8 TB (max)
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
|
| Remote Management Protocol |
IPMI 2.0
|
| Remote Management Controller |
Intel Baseboard Management Controller (BMC)
|
| Ethernet Ports |
2 x SFP+
|
| Ethernet Controller |
Intel X722
|
| Features |
Integrated BMC with IPMI
|
| Included Accessories |
2 x CPU Heatsink, air duct, 3 x system fans, M.2 (80 mm) riser card
|
| Channel Qty |
8
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
|
| Type |
SATA
|
| Controller Interface Type |
SATA 6Gb/s
|
| Type |
No optical drive
|
| Monitor Type |
None.
|
| Video Interfaces |
VGA
|
| Graphics Processor |
ASPEED AST2500
|
| Type |
No HDD
|
| Weight |
4.32 kg
|
| Width |
17.75 cm
|
| Height |
4.081 cm
|
| Depth |
63.103 cm
|
| Shipping Height |
16 cm
|
| Shipping Weight |
5.6 kg
|
| Shipping Width |
27.2 cm
|
| Shipping Depth |
72 cm
|
| Max CPU Qty |
2
|
| CPU Upgradability |
Upgradable
|
| CPU |
No CPU
|
| CPU Socket |
Socket P
|
| Chipset Type |
Intel C622
|
