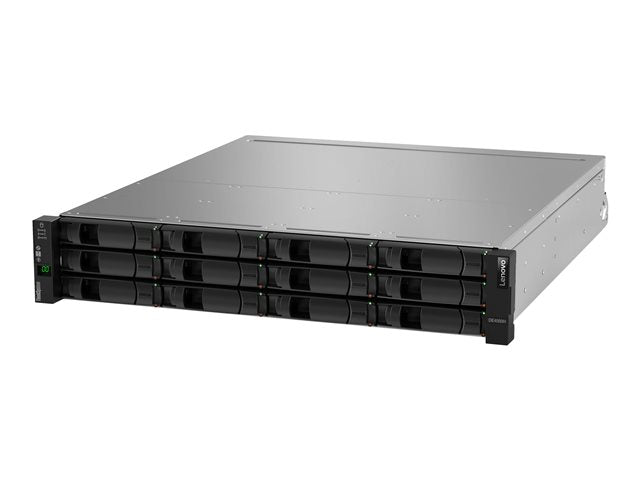

Lenovo ThinkSystem DE4000H Hybrid 2U12 LFF controller enclosure
Lenovo ThinkSystem DE4000H Hybrid 2U12 LFF controller enclosure
Regular price
£8,148.31
Sale price
£8,148.31
Regular price
Unit price
/
per
taxes included
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Lenovo ThinkSystem DE4000H is a scalable, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.
Main Specifications
General
| Device Type |
Hard drive array
|
| Enclosure Type |
Rack-mountable - 2U
|
Expansion / Connectivity
| Expansion Bays |
12 (total) / 12 (free) x hot-swap - 3.5" LFF
|
| Expansion Slots |
2 (total) / 0 (free) x expansion slot
|
| Interfaces |
2 x SAS 12Gb/s (output) - 36 pin 4x Mini SAS HD (SFF-8644)
6 x 16Gb Fibre Channel - SFP+
1 x Ethernet 1000 (management) - RJ-45
1 x serial (management) - 5 pin Micro-USB Type A
1 x serial (management) - RJ-45
|
Manufacturer Warranty
| Service & Support |
Limited warranty - 3 years - on-site
|
Storage
| Host Channels |
2
|
| HDD Array External Interface |
16Gb Fibre Channel
|
Miscellaneous
| Features |
Application snapshots, Dynamic Disk Pool (DDP) Technology
|
| Cables Included |
1 x micro-USB to USB cable - 2 m
2 x power cable (C13-C14) - 1.5 m
|
| Compliant Standards |
BSMI CNS 13438 Class A, NOM, EN55024, ICES-003 Class A, UL 60950-1, FCC Part 15 A, GB 17625.1, GB 9254 Class A, CECP, CEL, Directive 2011/65/EU, VCCI Class A, EAC, GB 4943.1, KN32, KN35, CNS 14336-1, EN 55032 Class A, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, AS/NZS CISPR22 Class A
|
Power
| Max Supported Qty |
2
|
| Power Redundancy |
Yes
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Power Device |
2 x internal power supply - hot-plug
|
| Voltage Required |
AC 120/230 V - 50/60 Hz
|
| Power Provided |
913 Watt
|
Environmental Parameters
| Max Operating Temperature |
40 °C
|
| Min Operating Temperature |
10 °C
|
| Humidity Range Operating |
8 - 90% (non-condensing)
|
Storage Controller
| Cache / Buffer Size (Max) |
16 GB
|
| Type |
RAID
|
| RAID Level |
RAID 0, RAID 1, RAID 3, RAID 5, RAID 6, RAID 10
|
| Data Transfer Rate |
1.2 GBps
|
| Interface Type |
SAS 12Gb/s
|
Hard Drive
| Type |
No HDD
|
Dimensions & Weight
| Height |
8.5 cm
|
| Depth |
48.3 cm
|
| Width |
44.7 cm
|
| Weight |
27.6 kg
|
Chassis
| Supported Devices / Modules Qty |
12
|
| Supported Drives |
SAS-3
|
