SKU:7783723

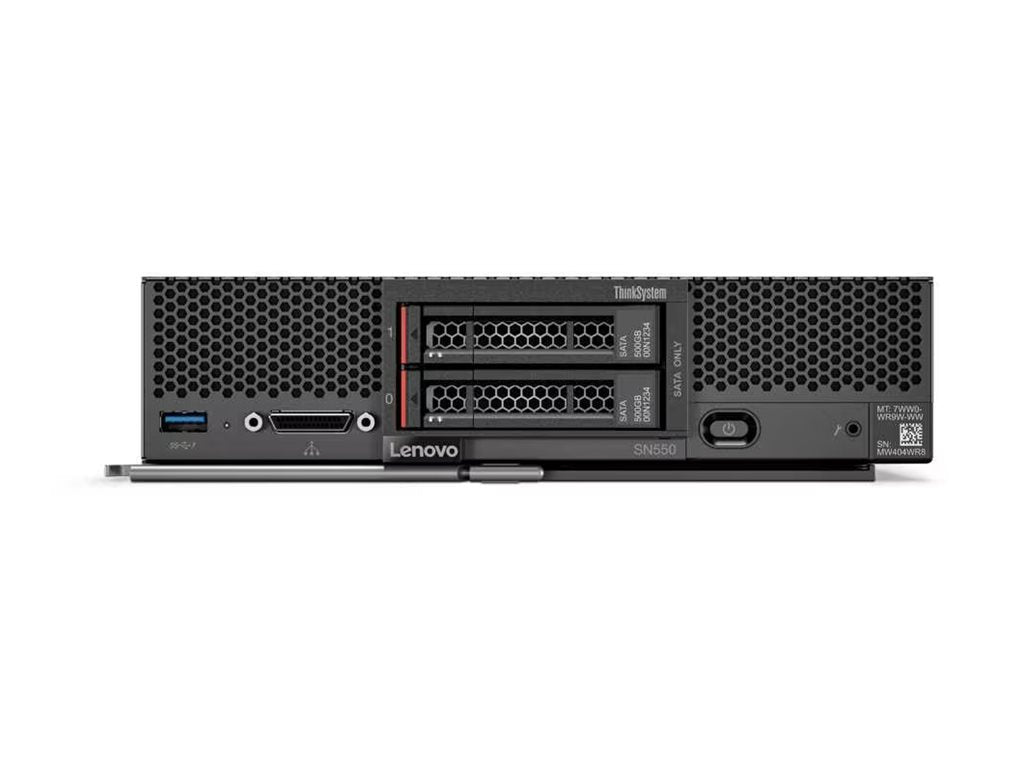

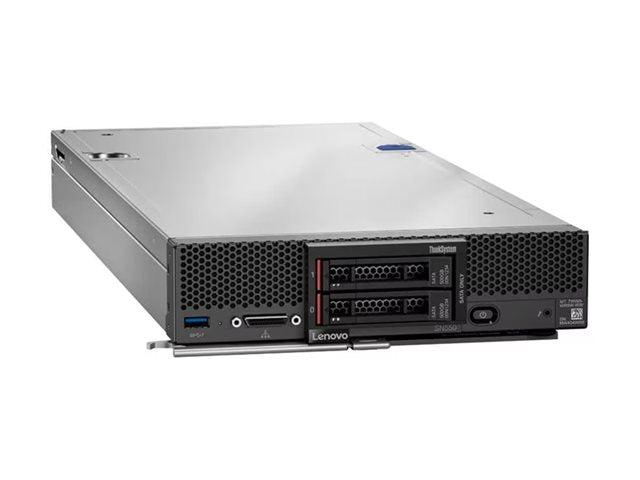

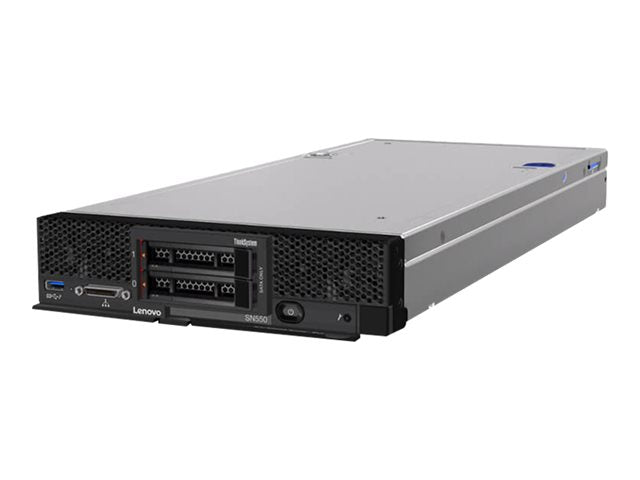

Lenovo ThinkSystem SN550 7X16
Lenovo ThinkSystem SN550 7X16
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share








Product Description
The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates up to two Intel Xeon Processor Scalable Family of processors. The processors feature up to 28 cores each and use Lenovo TruDDR4 memory, which runs at speeds up to 2666 MHz.
Product Features
Enhanced security: Equipped with Trusted Platform Module (TPM 1. 2 and TPM 2. 0), the Lenovo ThinkSystem SN550 offers robust security features to protect against unauthorized access and ensure data integrity.
Scalable performance: With support for up to 2 Intel Xeon Silver processors, the server offers scalability, making it an ideal choice for growing businesses that require increased processing power.
Advanced memory capabilities: Features such as Memory Mirroring, Memory Sparing, and TruDDR4 technology, combined with the capacity to hold up to 24 DIMM 288-pin DDR4 SDRAM modules, ensure high-speed, reliable memory performance.
Comprehensive compliance: Meets a wide range of compliance standards including ASHRAE Class A3, BSMI, CB, and many more, ensuring it meets global regulatory requirements and industry standards.
Versatile connectivity: Offers multiple interface options including USB 3. 0 and management ports located in front for easy access, enhancing connectivity and management capabilities.
Main Specifications
General
Hot-Swap Bays Qty | 2 |
---|---|
Type | Server |
Server Scalability | 2-way |
Product Form Factor | Blade |
Embedded Security | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
Localisation | Region: EMEA |
Expansion / Connectivity
Bays | 2 (total) / 2 (free) x hot-swap 2.5" |
---|---|
Interfaces |
1 x USB 3.0 (1 in front)
1 x management (1 in front)
|
Slots |
2 (total) / 2 (free) x expansion slot
1 (total) / 1 (free) x M.2 Card
|
Manufacturer Warranty
Service & Support | Limited warranty - 3 years - on-site - response time: next business day |
---|
RAM
Effective Memory Speed | 2400 MHz |
---|---|
Configuration Features | 1 x 32 GB |
Rated Memory Speed | 1200 MHz |
Technology | DDR4 SDRAM |
Form Factor | DIMM 288-pin |
RAM Supported |
768 GB registered - ECC
1.5 TB Load-Reduced - ECC
|
Slots | 24 (Total) / 23 (empty) |
Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, TruDDR4, supports Intel Optane DC Persistent Memory (DCPMM) |
Installed Size | 32 GB (installed) / 768 GB (max) |
Networking
Remote Management Controller | XClarity Controller (XCC) |
---|
Miscellaneous
Compliant Standards | TUV GS, BSMI, CISPR 22 Class A, EN55024, EN55022 Class A, CB, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN24, KN22 Class A, CNS 14336, EK1-ITB2000, CNS 13438 Class A, ASHRAE Class A3, EN61000-3-2, EN61000-3-3 |
---|
Environmental Parameters
Max Operating Temperature | 40 °C |
---|---|
Min Operating Temperature | 5 °C |
Storage Controller
Channel Qty | 2 |
---|---|
RAID Level | RAID 0, RAID 1, JBOD |
Type | 1 x SATA |
Controller Interface Type | SATA 6Gb/s |
Cache Memory
Cache Per Processor | 11 MB |
---|---|
Installed Size | L3 Cache - 11 MB |
Optical Storage
Type | No optical drive |
---|
Operating System / Software
OS Provided | No operating system |
---|
Monitor
Monitor Type | None. |
---|
Graphics Controller
Video Memory | 16 MB |
---|---|
Graphics Processor | Matrox G200 |
Hard Drive
Type | No HDD |
---|
Dimensions & Weight
Weight | 7.1 kg |
---|---|
Height | 5.55 cm |
Width | 21.55 cm |
Depth | 49.27 cm |
Processor / Chipset
CPU Qty | 1 |
---|---|
Max CPU Qty | 2 |
Clock Speed | 2.1 GHz |
Max Turbo Speed | 3.2 GHz |
Number of Cores | 8-core |
Chipset Type | Intel C624 |
CPU | Intel Xeon Silver 4208 |
