SKU:7783723

Lenovo ThinkSystem SN550 7X16

Lenovo ThinkSystem SN550 7X16

Regular price £3,046.31
Sale price £3,046.31 Regular price
Sale Sold out
taxes included

In Stock - Delivery from tomorrow

FREE Delivery to most of the UK

View full details

Product Description

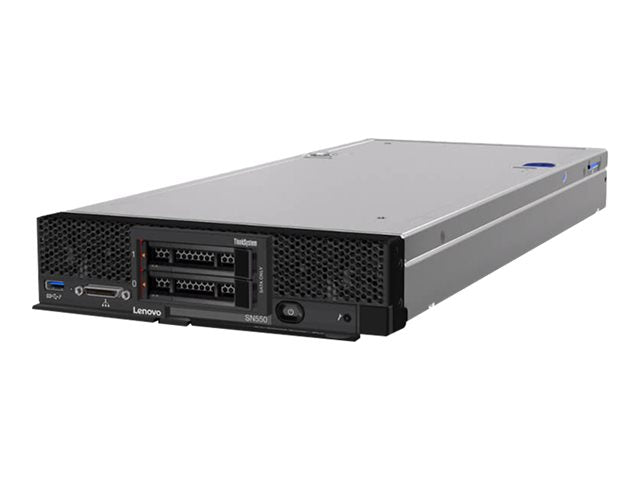

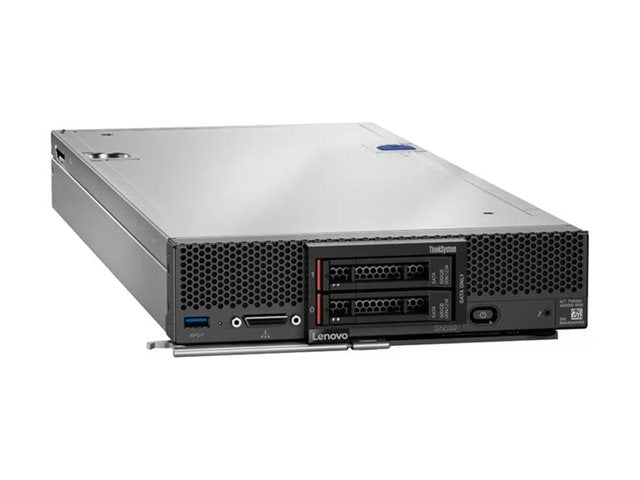

The Lenovo ThinkSystem SN550 is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates up to two Intel Xeon Processor Scalable Family of processors. The processors feature up to 28 cores each and use Lenovo TruDDR4 memory, which runs at speeds up to 2666 MHz.

Product Features

Enhanced security: Equipped with Trusted Platform Module (TPM 1. 2 and TPM 2. 0), the Lenovo ThinkSystem SN550 offers robust security features to protect against unauthorized access and ensure data integrity.

Scalable performance: With support for up to 2 Intel Xeon Silver processors, the server offers scalability, making it an ideal choice for growing businesses that require increased processing power.

Advanced memory capabilities: Features such as Memory Mirroring, Memory Sparing, and TruDDR4 technology, combined with the capacity to hold up to 24 DIMM 288-pin DDR4 SDRAM modules, ensure high-speed, reliable memory performance.

Comprehensive compliance: Meets a wide range of compliance standards including ASHRAE Class A3, BSMI, CB, and many more, ensuring it meets global regulatory requirements and industry standards.

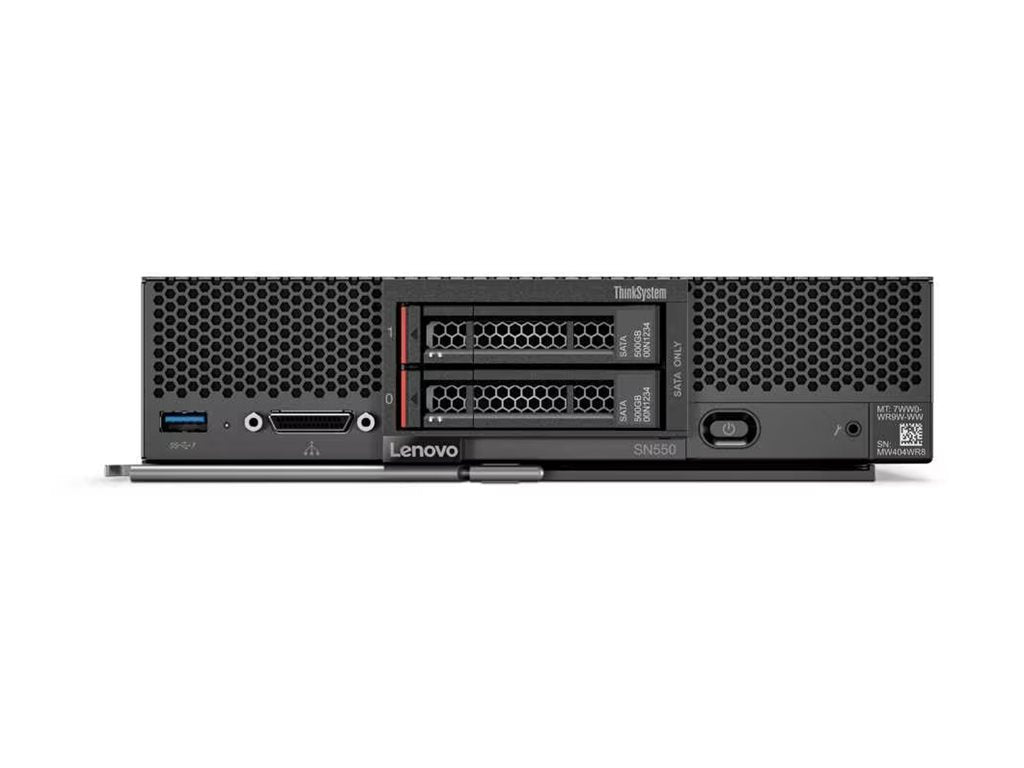

Versatile connectivity: Offers multiple interface options including USB 3. 0 and management ports located in front for easy access, enhancing connectivity and management capabilities.

Main Specifications

General

Hot-Swap Bays Qty 2
Type Server
Server Scalability 2-way
Product Form Factor Blade
Embedded Security Trusted Platform Module (TPM 1.2 and TPM 2.0)
Localisation Region: EMEA

Expansion / Connectivity

Bays 2 (total) / 2 (free) x hot-swap 2.5"
Interfaces
1 x USB 3.0 (1 in front)
1 x management (1 in front)
Slots
2 (total) / 2 (free) x expansion slot
1 (total) / 1 (free) x M.2 Card

Manufacturer Warranty

Service & Support Limited warranty - 3 years - on-site - response time: next business day

RAM

Effective Memory Speed 2400 MHz
Configuration Features 1 x 32 GB
Rated Memory Speed 1200 MHz
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
RAM Supported
768 GB registered - ECC
1.5 TB Load-Reduced - ECC
Slots 24 (Total) / 23 (empty)
Features Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported, slots 13 - 24 are available in two-processor configuration only, TruDDR4, supports Intel Optane DC Persistent Memory (DCPMM)
Installed Size 32 GB (installed) / 768 GB (max)

Networking

Remote Management Controller XClarity Controller (XCC)

Miscellaneous

Compliant Standards TUV GS, BSMI, CISPR 22 Class A, EN55024, EN55022 Class A, CB, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, KN24, KN22 Class A, CNS 14336, EK1-ITB2000, CNS 13438 Class A, ASHRAE Class A3, EN61000-3-2, EN61000-3-3

Environmental Parameters

Max Operating Temperature 40 °C
Min Operating Temperature 5 °C

Storage Controller

Channel Qty 2
RAID Level RAID 0, RAID 1, JBOD
Type 1 x SATA
Controller Interface Type SATA 6Gb/s

Cache Memory

Cache Per Processor 11 MB
Installed Size L3 Cache - 11 MB

Optical Storage

Type No optical drive

Operating System / Software

OS Provided No operating system

Monitor

Monitor Type None.

Graphics Controller

Video Memory 16 MB
Graphics Processor Matrox G200

Hard Drive

Type No HDD

Dimensions & Weight

Weight 7.1 kg
Height 5.55 cm
Width 21.55 cm
Depth 49.27 cm

Processor / Chipset

CPU Qty 1
Max CPU Qty 2
Clock Speed 2.1 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 8-core
Chipset Type Intel C624
CPU Intel Xeon Silver 4208
