SKU:10400709

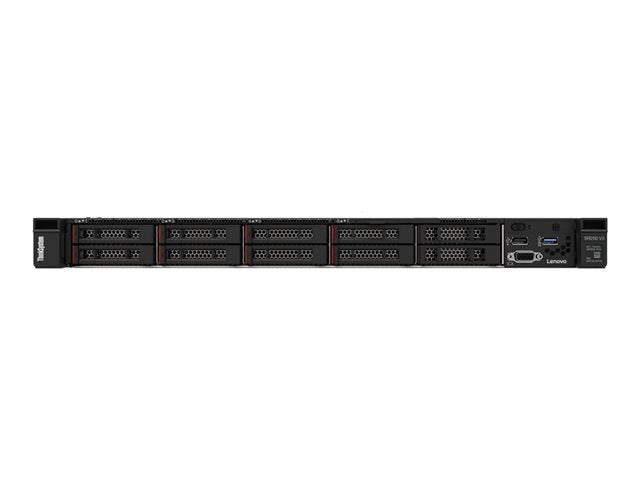

Lenovo ThinkSystem SR250 V3 7DCL
Lenovo ThinkSystem SR250 V3 7DCL
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The Lenovo ThinkSystem SR250 V3 is a rack-mountable server designed to meet the demands of modern business environments. It features a powerful Intel Xeon E-2456 processor with a clock speed of 3.3 GHz and a max turbo speed of 5.1 GHz, ensuring high performance for processing tasks. With 16 GB of DDR5 SDRAM and the capability to support up to 8 hot-swap bays, this server offers flexibility in storage and memory expansion, catering to growing business needs.
Energy efficiency is a key aspect of the SR250 V3, boasting an 80 PLUS Platinum power supply and ENERGY STAR 4.0 certification, which translates to reduced operational costs and a smaller carbon footprint. Security is also paramount, with the inclusion of a Trusted Platform Module (TPM 2.0) security chip that safeguards sensitive data.
Networking capabilities are robust, featuring dual Gigabit Ethernet ports powered by a Broadcom BCM5720 controller, supporting Ethernet, Fast Ethernet, and Gigabit Ethernet. This ensures reliable and fast network connectivity, essential for business operations. The server's design prioritizes both performance and sustainability, making it an ideal choice for businesses looking to invest in a secure, efficient, and high-performing server solution.
| Product Description | Lenovo ThinkSystem SR250 V3 - rack-mountable Xeon E-2468 2.6 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Region: EMEA |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E-2468 / 2.6 GHz (up to 5.2 GHz, (8-core) |
| Cache Memory | 16 MB |
| Cache Per Processor | 16 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (ThinkSystem RAID 5350-8i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 43.44 cm x 56.1 cm x 4.3 cm |
| Weight | 11.44 kg |
| Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - 3 years - on-site - response time: next business day |
Energy-efficient design
With an 80 PLUS Platinum power supply and ENERGY STAR certification, this server ensures high energy efficiency and lower operating costs.
Robust security features
Equipped with a Trusted Platform Module (TPM 2. 0) security chip, this server provides secure hardware-based data protection and ensures data and password security.
High-speed connectivity
Features dual Gigabit Ethernet ports, supporting Ethernet, Fast Ethernet, and Gigabit Ethernet, along with Broadcom BCM5720 Ethernet Controller(s) for reliable and fast network connectivity.
Advanced memory technology
Comes with 16 GB of DDR5 SDRAM at a memory speed of 4800 MHz, offering high-speed data processing and improved performance for demanding applications.
Flexible storage options
Supports hot-swap server storage bays, allowing for easy and quick drive replacements and upgrades without the need for system shutdown.
Lenovo ThinkSystem SR250 V3 7DCL
Friction rail kit
| Type |
Server
|
| Hot-Swap Bays Qty |
8
|
| Built-in Devices |
Led panel
|
| Server Scalability |
1-way
|
| Product Form Factor |
Rack-mountable - 1U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: EMEA
|
| Bays |
8 (total) / 8 (free) x hot-swap 2.5"
|
| Interfaces |
1 x USB 2.0 (1 in front)
1 x USB 3.2 Gen 1 (1 in front)
2 x USB 3.2 Gen 2
1 x serial
1 x VGA
1 x management - RJ-45
2 x LAN (Gigabit Ethernet) - RJ-45
|
| Slots |
1 (total) / 1 (free) x PCIe 4.0 x8 - low-profile
1 (total) / 1 (free) x PCIe 4.0 x8 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x4 (for internal storage controller)
2 (total) / 2 (free) x M.2 Card
|
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day
|
| Features |
Unbuffered
|
| Effective Memory Speed |
2400 MHz
|
| Rated Memory Speed |
2400 MHz
|
| Configuration Features |
1 x 32 GB
|
| Form Factor |
DIMM 288-pin
|
| Slots |
4 (Total) / 3 (empty)
|
| Technology |
DDR5 SDRAM - ECC
|
| Installed Size |
32 GB (installed) / 128 GB (max)
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Ethernet Ports |
2 x Gigabit Ethernet
|
| Features |
PXE support, Teaming support
|
| Ethernet Controller |
Broadcom BCM5720
|
| Remote Management Controller |
XClarity Controller 2 (XCC2) Platinum
|
| Included Accessories |
Friction rail kit
|
| Compliant Standards |
GS, CCC, IEC 60950-1, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, EN 55035, TP TC 004/2011, TP TC 020/2011, EN61000-3-11, EN61000-3-12, CELP, HJ 2507-2011, CNS 15663, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, AS/NZS 62368.1, UKCA, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM, NRCS LOA, TUV-GS, IEC/EN 63000, (EU) 2019/424, UL2819, BIS 13252 (Part 1), UkrCEPRO, CNS 15936 Class A, CNS 15598-1
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
800 Watt
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Channel Qty |
8
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10
|
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s
|
| Type |
1 x RAID - PCIe 3.0 x8
|
| Storage Controller Name |
ThinkSystem RAID 5350-8i
|
| Installed Size |
16 MB
|
| Cache Per Processor |
16 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Graphics Processor |
Matrox G200
|
| Type |
No HDD
|
| Height |
4.3 cm
|
| Depth |
56.1 cm
|
| Weight |
11.44 kg
|
| Width |
43.44 cm
|
| Shipping Height |
19.4 cm
|
| Shipping Depth |
86.3 cm
|
| Shipping Width |
60.1 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Max Turbo Speed |
5.2 GHz
|
| Clock Speed |
2.6 GHz
|
| Number of Cores |
8-core
|
| CPU |
Intel Xeon E-2468
|
| Chipset Type |
Intel C266
|
| ENERGY STAR Version |
4.0
|
| ENERGY STAR Certified |
Yes
|
| EPEAT Compliant |
EPEAT Bronze
|
