SKU:11516403

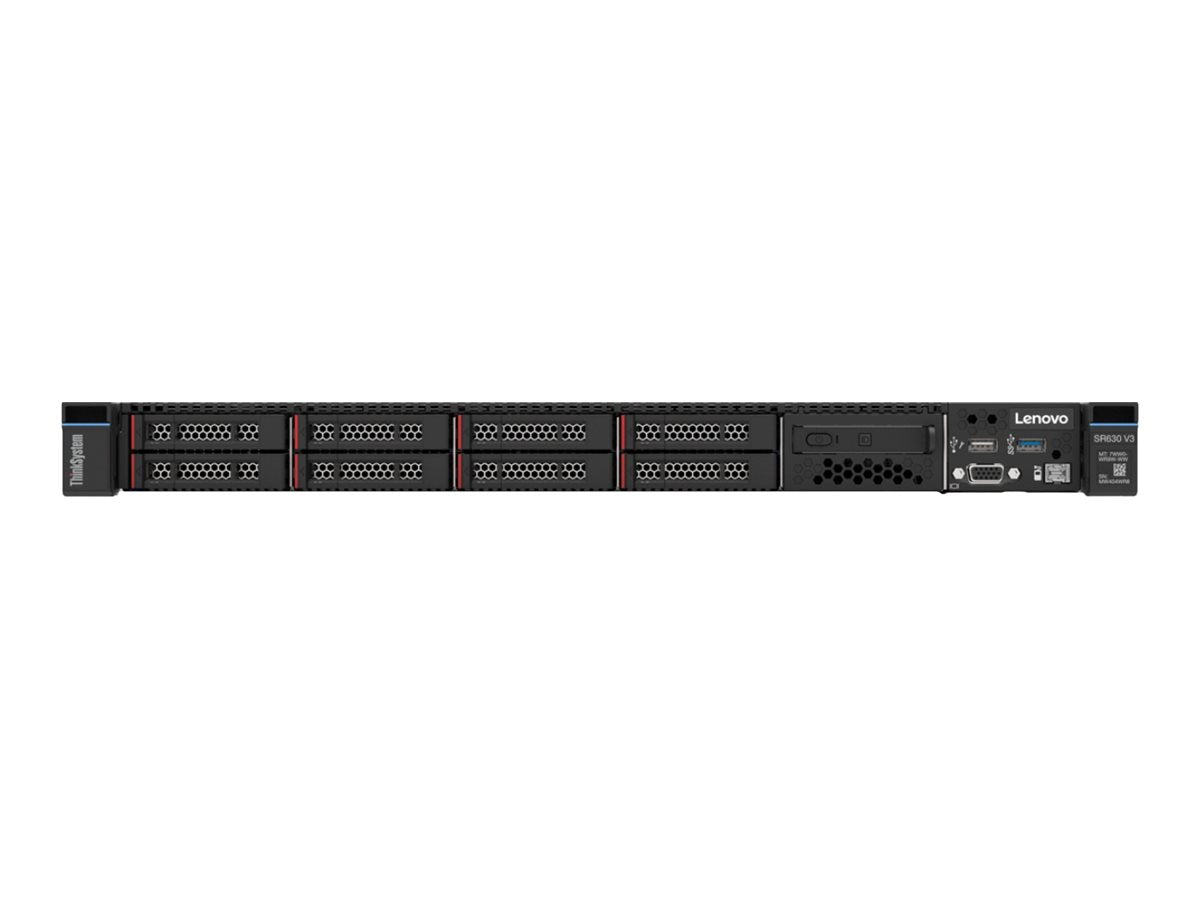

Lenovo ThinkSystem SR630 V3
Lenovo ThinkSystem SR630 V3
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Combining performance and flexibility, the SR630 V3 server is a great choice for enterprises of all sizes. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.
Main Specifications
| Product Description | Lenovo ThinkSystem SR630 V3 - rack-mountable Xeon Silver 4510 2.4 GHz - 32 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Region: EMEA |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4510 / 2.4 GHz (up to 4.1 GHz, (12-core) |
| Cache Memory | 30 MB L3 Cache |
| Cache Per Processor | 30 MB |
| RAM | 32 GB (installed) / 8 TB (max) - DDR5 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (ThinkSystem RAID 9350-8i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 - up to |
| Video Memory | 16 MB |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 44 cm x 77.3 cm x 4.3 cm |
| Weight | 20.8 kg |
| Environmental Standards | EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - 3 years - on-site - response time: next business day |
Product Features
Efficient cooling system
Equipped with 6 performance fans, this server ensures optimal cooling, maintaining performance even under heavy workloads.
Scalable storage options
With 8 hot-swap bays and support for 2. 5" SAS drives, the system offers flexible storage scalability, allowing for easy upgrades and maintenance.
Robust security features
Featuring a Trusted Platform Module (TPM 2. 0) security chip and a chassis intrusion switch, it provides enhanced security measures to protect critical data.
High-speed connectivity
Offers a variety of USB 3. 2 Gen 1 and USB 2. 0 ports along with VGA and management RJ-45 connectors, ensuring high-speed connectivity and easy management.
Advanced memory support
Supports up to 32 DIMM slots with DDR5 SDRAM technology, allowing for significant memory expansion and performance improvements in a two-processor configuration.
| Type |
Server
|
| Hot-Swap Bays Qty |
8
|
| Server Scalability |
2-way
|
| Product Form Factor |
Rack-mountable - 1U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: EMEA
|
| Built-in Devices |
6 x performance fans
|
| Bays |
8 (total) / 8 (free) x hot-swap 2.5"
|
| Interfaces |
5 x USB 3.2 Gen 1 (1 front, 3 rear, 1 internal)
1 x USB 2.0 (1 in front)
1 x VGA (1 rear)
1 x management - RJ-45
|
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day
|
| Configuration Features |
1 x 32 GB
|
| Effective Memory Speed |
2200 MHz
|
| Rated Memory Speed |
2200 MHz
|
| Form Factor |
DIMM 288-pin
|
| Slots |
32 (Total) / 31 (empty)
|
| Features |
Registered, Memory Mirroring, slots 17 - 32 are available in two-processor configuration only
|
| Technology |
DDR5 SDRAM - ECC
|
| Installed Size |
32 GB (installed) / 8 TB (max)
|
| Remote Management Protocol |
SNMP 3, IPMI 2.0
|
| Remote Management Controller |
XClarity Controller 2 (XCC2) Platinum
|
| Theft/Intrusion Protection |
Chassis intrusion switch
|
| Compliant Standards |
FCC Class A certified, EN 61000-3-2, GS, EN55024, GB 17625.1, VCCI Class A, GB 4943.1, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, CISPR 32 Class A, CISPR 35, TP TC 004/2011, TP TC 020/2011, HJ 2507-2011, CNS 15663, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, EN61000-3-3, EN55032 Class A, CNS14336-1, EN55035, EN50581-1 (RoHS), UL2819, BIS 13252 (Part 1)
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
1100 Watt
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Titanium
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Channel Qty |
8
|
| Buffer Size |
2 GB
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
|
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s
|
| Type |
1 x RAID - PCIe 3.0 x8
|
| Storage Controller Name |
ThinkSystem RAID 9350-8i
|
| Cache Per Processor |
30 MB
|
| Installed Size |
L3 Cache - 30 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Graphics Processor |
ASPEED AST2600
|
| Type |
No HDD
|
| Width |
44 cm
|
| Height |
4.3 cm
|
| Weight |
20.8 kg
|
| Depth |
77.3 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
2
|
| Clock Speed |
2.4 GHz
|
| Number of Cores |
12-core
|
| Max Turbo Speed |
4.1 GHz
|
| Chipset Type |
Intel C741
|
| CPU |
Intel Xeon Silver 4510
|
| EPEAT Compliant |
EPEAT Bronze
|
