SKU:8567021

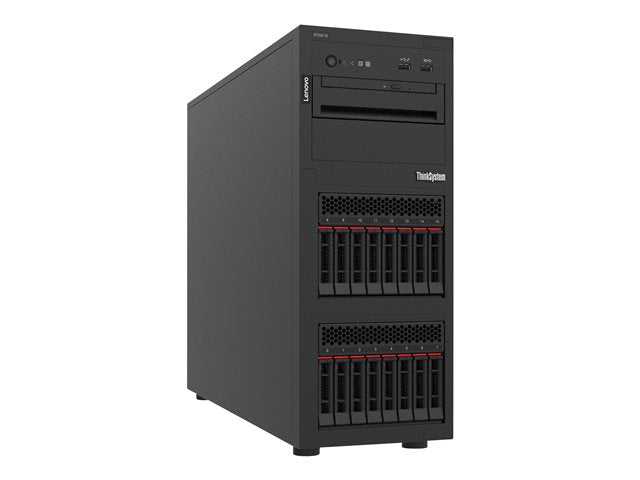

Lenovo ThinkSystem ST250 V2 7D8F
Lenovo ThinkSystem ST250 V2 7D8F
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed “Rocket Lake”.
| Product Description | Lenovo ThinkSystem ST250 V2 - tower Xeon E-2356G 3.2 GHz - 32 GB - no HDD |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localisation | Region: EMEA |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon E-2356G / 3.2 GHz (up to 5 GHz, (6-core) |
| Processor Socket | LGA1200 Socket |
| Cache Memory | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (ThinkSystem RAID 5350-8i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.6 cm x 57.8 cm x 44.4 cm |
| Weight | 23.6 kg |
| Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - 3 years - on-site - response time: next business day |
Energy-efficient design
With an 80 PLUS Platinum power supply and ENERGY STAR certification, this server ensures high energy efficiency and lower operational costs.
Robust security features
Equipped with a Trusted Platform Module (TPM 2. 0) security chip, chassis intrusion switch, and Kensington security slot, it offers multiple layers of security to protect critical data.
High-performance processing
Powered by an Intel Xeon processor and supporting ECC TruDDR4 memory, it delivers reliable performance for demanding server applications.
Flexible expansion options
Features multiple expansion slots including PCIe 3. 0 x4 and PCIe 4. 0 x16, allowing for significant upgrade potential and customization according to business needs.
Comprehensive connectivity
Offers a wide range of connectivity options with USB 3. 2 Gen 1 and Gen 2 ports, dual Gigabit Ethernet ports, and VGA, ensuring versatile connectivity for various peripherals and networks.
| Front Accessible Bays Qty |
2
|
| Type |
Server
|
| Hot-Swap Bays Qty |
8
|
| Built-in Devices |
Led panel
|
| Server Scalability |
1-way
|
| Product Form Factor |
Tower - 4U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: EMEA
|
| Bays |
2 (total) / 2 (free) x external 5.25" x 1/2H
8 (total) / 8 (free) x hot-swap 2.5"
|
| Slots |
2 (total) / 2 (free) x PCIe 3.0 x4 - half-length, full-height
1 PCIe 4.0 x16 - half-length, full-height
PCIe 3.0 x4 - half-length, full-height (x8 mode)
|
| Interfaces |
1 x USB 3.2 Gen 1 (1 in front)
1 x USB 2.0 (1 in front)
4 x USB 3.2 Gen 2
1 x serial
1 x VGA
2 x LAN (Gigabit Ethernet) - RJ-45
1 x management - RJ-45
1 x USB 3.0 (1 internal)
|
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day
|
| Configuration Features |
1 x 32 GB
|
| Rated Memory Speed |
1600 MHz
|
| Effective Memory Speed |
3200 MHz
|
| Form Factor |
DIMM 288-pin
|
| Technology |
DDR4 SDRAM - ECC
|
| Features |
Unbuffered, TruDDR4
|
| Slots |
4 (Total) / 3 (empty)
|
| Installed Size |
32 GB (installed) / 128 GB (max)
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Ethernet Ports |
2 x Gigabit Ethernet
|
| Features |
PXE support, Teaming support
|
| Ethernet Controller |
Broadcom BCM5720
|
| Remote Management Controller |
XClarity Controller (XCC) Enterprise
|
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop, chassis intrusion switch
|
| Security Slot Type |
Kensington security slot
|
| Compliant Standards |
UL, TUV GS, BSMI CNS 13438 Class A, EN 61000-3-2, GS, EN 61000-3-3, EN55024, CB, CCC, IEC 60950-1, FCC Part 15 A, GREENGUARD, GB 17625.1, CECP, VCCI Class A, EAC, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, LoA, NRCS, CISPR 32 Class A, UL 62368-1, Morocco, EN 55035, TP TC 004/2011, TP TC 020/2011, ASHRAE Class A2, CELP, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, ANSI, TP EAC 037/2016, EN 50581-1, AS/NZS 62368.1, UKCA, ICES-003 issue 7 Class A, NSF/ANSI 426, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, NIST SP800-147B
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
550 Watt
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Min Operating Temperature |
10 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
8 - 80%
|
| Channel Qty |
8
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10, JBOD
|
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s
|
| Type |
1 x RAID - PCIe 3.0 x8
|
| Storage Controller Name |
ThinkSystem RAID 5350-8i
|
| Installed Size |
12 MB
|
| Cache Per Processor |
12 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Graphics Processor |
Matrox G200
|
| Type |
No HDD
|
| Depth |
57.8 cm
|
| Width |
17.6 cm
|
| Weight |
23.6 kg
|
| Height |
44.4 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| Max Turbo Speed |
5 GHz
|
| Clock Speed |
3.2 GHz
|
| Number of Cores |
6-core
|
| CPU Socket |
LGA1200 Socket
|
| Chipset Type |
Intel C256
|
| CPU |
Intel Xeon E-2356G
|
| ENERGY STAR Version |
3.0
|
| ENERGY STAR Certified |
Yes
|
| EPEAT Compliant |
EPEAT Bronze
|
