SKU:8623649

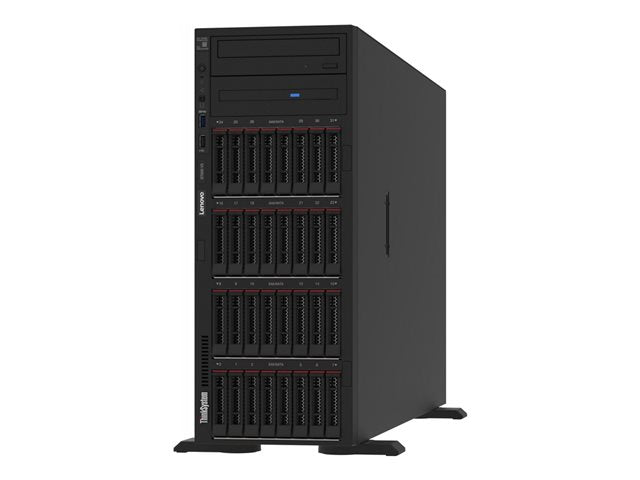

Lenovo ThinkSystem ST650 V3 7D7A
Lenovo ThinkSystem ST650 V3 7D7A
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth.
The ST650 V3 is based on the 4th generation Intel Xeon scalable processor family. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Main Specifications
| Product Description | Lenovo ThinkSystem ST650 V3 - tower Xeon Gold 6438Y+ 2 GHz - 64 GB - no HDD |
| Type | Server - tower |
| Height (Rack Units) | 4U |
| Localisation | Region: EMEA |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Gold (4th Gen) 6438Y+ / 2 GHz (up to 4 GHz, (32-core) |
| Cache Memory | 60 MB L3 Cache |
| Cache Per Processor | 60 MB |
| RAM | 64 GB (installed) / 4 TB (max) - DDR5 SDRAM - ECC |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) - PCIe 3.0 x8 (ThinkSystem RAID 9350-8i) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2600 - up to |
| Video Memory | 16 MB |
| Networking | 1GbE, 10GbE |
| Power | (50/60 Hz) |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 17.5 cm x 73.4 cm x 46.2 cm |
| Weight | 39.1 kg |
| Environmental Standards | ENERGY STAR Qualified EPEAT Bronze |
| Manufacturer Warranty | Limited warranty - 3 years - on-site - response time: next business day |
Product Features
Efficient scalability
Designed for growth and scalability, the Lenovo ThinkSystem ST650 V3 supports dual Intel Xeon Gold processors, allowing for efficient performance and processing power. With server scalability of 2-way, it meets the evolving demands of modern workloads.
Robust storage options
Featuring 8 hot-swap bays and support for SAS drives, this server offers flexible storage solutions. The RAID support, ranging from RAID 0 to RAID 60, ensures data integrity and performance for all types of business environments.
Advanced memory capabilities
Equipped with DDR5 SDRAM technology and an 8-channel memory architecture, the system supports up to 32 DIMM slots. This provides significant bandwidth and memory capacity, essential for data-intensive applications and virtualization.
Comprehensive connectivity
With a variety of interface options including USB 3. 1 Gen 1, VGA, serial, and dual 10 Gigabit Ethernet ports, the Lenovo ThinkSystem ST650 V3 ensures high-speed connectivity and easy integration into existing networks.
Eco-friendly and secure
EPEAT Bronze certified and equipped with a Trusted Platform Module (TPM 2. 0) security chip, this server combines environmental responsibility with advanced security features, safeguarding data and ensuring compliance with various standards.
| Front Accessible Bays Qty |
2
|
| Type |
Server
|
| Hot-Swap Bays Qty |
8
|
| Server Scalability |
2-way
|
| Product Form Factor |
Tower - 4U
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: EMEA
|
| Built-in Devices |
Led panel, 4 x performance fans
|
| Bays |
2 (total) / 2 (free) x external 5.25" x 1/2H
8 (total) / 8 (free) x hot-swap 2.5"
|
| Interfaces |
7 x USB 3.1 Gen 1 (1 front, 4 rear, 2 internal)
1 x USB 2.0 (1 in front)
1 x VGA
1 x serial
1 x management (Gigabit Ethernet) - RJ-45
2 x LAN (10Gigabit Ethernet) - RJ-45
|
| Slots |
2 PCIe 5.0 x16 - full-length, full-height
1 PCIe 5.0 x8 - full-length, full-height (x8 mode)
1 PCIe 4.0 x8 - full-length, full-height
1 (total) / 1 (free) x PCIe 5.0 x8 - full-length, full-height (2 processors must be installed)
2 (total) / 2 (free) x PCIe 5.0 x16 - full-length, full-height (2 processors must be installed)
1 (total) / 1 (free) x PCIe 4.0 x8 - full-length, full-height (2 processors must be installed)
|
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day
|
| Rated Memory Speed |
2400 MHz
|
| Configuration Features |
1 x 64 GB
|
| Form Factor |
DIMM 288-pin
|
| Effective Memory Speed |
4800 MHz
|
| Slots |
32 (Total) / 31 (empty)
|
| Features |
Registered, Memory Mirroring, 8-channel memory architecture, slots 17 - 32 are available in two-processor configuration only
|
| Technology |
DDR5 SDRAM - ECC
|
| Installed Size |
64 GB (installed) / 4 TB (max)
|
| Data Link Protocol |
Gigabit Ethernet, 10 Gigabit Ethernet
|
| Features |
PXE support
|
| Ethernet Ports |
2 x 10 Gigabit Ethernet
|
| Ethernet Controller |
Broadcom BCM57416
|
| Remote Management Controller |
XClarity Controller 2 (XCC2) Platinum
|
| Theft/Intrusion Protection |
Chassis intrusion switch
|
| Compliant Standards |
FCC Class A certified, EN 61000-3-2, GS, EN55024, CCC, GB 17625.1, VCCI Class A, INMETRO, GB4943.1-2001, NOM-019, EK1-ITB2000, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CISPR 35, TP TC 004/2011, TP TC 020/2011, HJ 2507-2011, CNS 15663, TP EAC 037/2016, AS/NZS 62368.1, UKCA, ANSI/UL 62368-1, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM, NRCS LOA, ErP Lot 9, EN61000-3-3, BSMI CNS13438, Class A, CNS14336-1, EN55035, (EU) 2019/424, EN50581-1 (RoHS), BIS 13252 (Part 1), UkrCEPRO
|
| Installed Qty |
1
|
| Max Supported Qty |
2
|
| Power Redundancy |
Optional
|
| Device Type |
Power supply - hot-plug
|
| Power Provided |
1100 Watt
|
| Power Redundancy Scheme |
1+1 (with optional power supply)
|
| 80 PLUS Certification |
80 PLUS Titanium
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Channel Qty |
8
|
| Buffer Size |
2 GB
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
|
| Controller Interface Type |
SATA 6Gb/s / SAS 12Gb/s
|
| Type |
1 x RAID - PCIe 3.0 x8
|
| Storage Controller Name |
ThinkSystem RAID 9350-8i
|
| Cache Per Processor |
60 MB
|
| Installed Size |
L3 Cache - 60 MB
|
| Type |
No optical drive
|
| OS Provided |
No operating system
|
| Monitor Type |
None.
|
| Video Memory |
16 MB
|
| Video Interfaces |
VGA
|
| Graphics Processor |
ASPEED AST2600
|
| Type |
No HDD
|
| Width |
17.5 cm
|
| Height |
46.2 cm
|
| Depth |
73.4 cm
|
| Weight |
39.1 kg
|
| Shipping Height |
37.4 cm
|
| Shipping Width |
59.7 cm
|
| Shipping Depth |
99.6 cm
|
| CPU Qty |
1
|
| Max CPU Qty |
2
|
| Clock Speed |
2 GHz
|
| Max Turbo Speed |
4 GHz
|
| Number of Cores |
32-core
|
| Chipset Type |
Intel C741
|
| CPU |
Intel Xeon Gold (4th Gen) 6438Y+
|
| ENERGY STAR Version |
3.0
|
| ENERGY STAR Certified |
Yes
|
| EPEAT Compliant |
EPEAT Bronze
|
