SKU:11456693

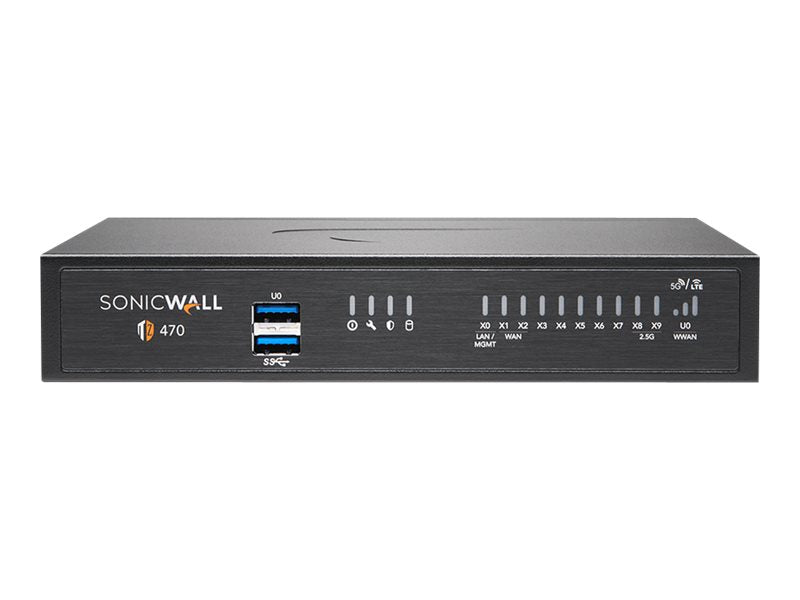

SonicWall TZ Series (Gen 7) TZ470
SonicWall TZ Series (Gen 7) TZ470
In Stock - Delivery from tomorrow
FREE Delivery to most of the UK
Couldn't load pickup availability
Share
Product Description
Designed for small, mid-sized organizations and distributed enterprise with SD-Branch locations, the 7th generation (Gen 7) TZ series delivers industry-validated security effectiveness with incredible price-performance. These NGFWs address the growing trends in web encryption, connected devices and high-speed mobility by delivering a solution that meets the need for automated, real-time breach detection and prevention.
Product Features
"Single-pane-of-glass" management and reporting: Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.
SD-WAN and Zero-Touch Deployment capabilities: SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.
Deep Memory Inspection: Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI) and Capture Advanced Threat Protection (ATP).
SSL/TLS decryption and inspection: Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1. 3 support.
Superior performance and features: Get advanced threat protection at lightning speeds without compromising on performance. TZ firewalls offer expandable storage, redundant power, SonicExpress App onboarding, and more.
- SonicWall TZ Series (Gen 7) TZ470
- External power adapter
Main Specifications
General
| Width | 19 cm |
|---|---|
| Height | 3.5 cm |
| Depth | 13.5 cm |
| Weight | 830 g |
| Device Type | Security appliance |
| Bundled Services | 3 years Essential Protection Service Suite and Cloud Secure Edge for 1 year SIA-Basic (10 users) and 1 year SPA-Advanced (3 users) |
Expansion / Connectivity
| Interfaces |
6 x 1000Base-T - RJ-45
2 x 1000Base-T - RJ-45 (WAN)
2 x 2.5Gb Ethernet - SFP+
2 x USB 3.0 - Type A
1 x console - RJ-45
|
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
|---|
Networking
| Form Factor | Desktop |
|---|---|
| Connectivity Technology | Wired |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Data Link Protocol | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Authentication Method | RADIUS, LDAP, XAUTH authentication |
| Performance |
Firewall throughput: 3.5 Gbps
Threat prevention throughput: 1.5 Gbps
Application throughput: 2 Gbps
IPS throughput: 2 Gbps
Anti-malware throughput: 1.5 Gbps
TLS/SSL inspection and decryption throughput: 600 Mbps
VPN throughput (IPSec): 1.5 Gbps
Connection rate: 12000 connections per second
|
| Capacity |
Virtual interfaces (VLANs): 128
SSL VPN licences: 2 (maximum 150)
VPN tunnels (site-to-site): 150
IPSec VPN clients: 5 (maximum 200)
SPI connections: 1000000
DPI connections: 250000
DPI SSL connections: 35000
Single Sign-On (SSO) users: 2500
Manageable access points: 32
|
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI, SSH |
| Status Indicators | Link/activity, power, secure, SSD activity, test mode |
| Features | SD-WAN support, VLAN support, firewall protection, VPN support, NAT support, Quality of Service (QoS), DHCP server, DHCP relay, Deep Packet Inspection (DPI), content filtering, antivirus analysis, anti-spam protection, Stateful Packet Inspection (SPI), DoS attack prevention, IPv4 support, IPv6 support, Jumbo Frames support, VLAN trunking, port mirroring, bandwidth control, Common Access Card (CAC) reader support, NetFlow, PAT support, 3G/4G USB Dongle Support, Single Sign-On (SSO) support, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DDos attack prevention |
Miscellaneous
| Pricing Type | SonicWall Promotional Tradeup |
|---|---|
| MTBF | 46 years |
| Compliant Standards | FIPS 140-2 Level 2, ICSA Firewall certified, ICSA Antivirus, Common Criteria, FCC Class B certified, ICES Class B, EMC, LVD, RoHS, C-Tick, VCCI Class B, UL, cUL, TUV GS, CB, Mexico CoC, WEEE, REACH, BSMI, KCC, MSIP, ANATEL |
Power
| Power Provided | 36 Watt |
|---|---|
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
Software / System Requirements
| OS Provided | SonicOS 7.0 |
|---|
Environmental Parameters
| Min Operating Temperature | 0 °C |
|---|---|
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Dimensions & Weight (Shipping)
| Shipping Weight | 1.43 kg |
|---|
IP Telephony
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
|---|
