SKU:4428463

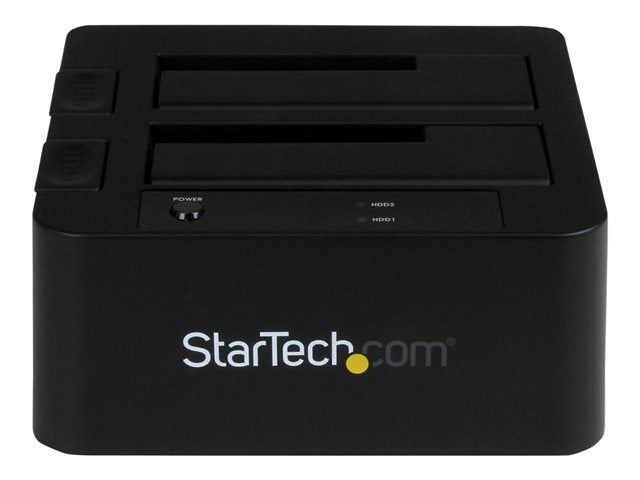

StarTech.com Dual-Bay USB 3.0 eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA IIIIII, SSDHDD Docking Station, Hot-Swap Hard Drive Bays

StarTech.com Dual-Bay USB 3.0 eSATA to SATA Hard Drive Docking Station, USB Hard Drive Dock, External 2.53.5 SATA IIIIII, SSDHDD Docking Station, Hot-Swap Hard Drive Bays

Regular price £66.66
Sale price £66.66 Regular price
Sale Sold out
taxes included

In Stock - Delivery from tomorrow

FREE Delivery to most of the UK

View full details

Product Description

Easily connect and swap two 2.5 or 3.5in SATA III drives through eSATA or USB 3.0. The SDOCK2U33EB Dual 2.5/3.5" SATA hard drive docking station lets you dock and swap hard drives from your desktop or laptop computer simultaneously using a single eSATA or USB port.

For fast performance and efficient data transfers when connected through eSATA, the docking station supports full SATA III transfer speeds - up to 6 Gbps. For universal compatibility, the dock can be connected through USB 3.0 with transfer speeds up 5 Gbps plus support for UASP, which supports performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

The hard drive docking station supports the fastest drive technologies including SATA III (6 Gbps), hybrid drives and solid state drives (SSD), ensuring you can save time by getting the most out of your drive performance.

Extend the value of this hard drive docking station further with the addition of the SATA to IDE Hard Drive Adapter (SAT2IDEADP), allowing easy insertion of any 2.5 or 3.5in. IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCK2U33EB supports all of the leading operating systems, including: Microsoft Windows (8/7/Vista/XP/Server 2008/Server 2003), Apple OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS.

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

Main Specifications

General
Colour
Black
Device Type
Storage controller - external
Hard Drive Form Factor Compatibility
2.5", 3.5"
Host Bus
eSATA 6Gb/s, USB 3.0
Expansion / Connectivity
Bays
2 x hot-swap - 2.5" / 3.5" shared
Connections
1 x USB 3.0 - 9 pin USB Type B
1 x eSATA 6Gb/s - 7 pin external Serial ATA
Interfaces
2 x SATA 6Gb/s - SATA combo
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Miscellaneous
Compliant Standards
FCC, RoHS
Features
Tested with up to 4TB 7200 RPM 3.5" hard drives, tested with up to 2TB 5400 RPM 2.5" hard drives
Cables Included
1 x USB 3.0 cable - external
1 x eSATA cable - external
Power
Type
Power adapter
Voltage Required
AC 120/230 V
Software / System Requirements
OS Required
Linux, Microsoft Windows 2000, Microsoft Windows Server 2008 R2, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits), Google Chrome OS, Windows 8 (32/64 bits), Windows 8.1 (32/64 bits), Apple MacOS X 10.6 - 10.9
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80%
Storage Controller
Max Storage Devices Qty
2
Supported Devices
Hard drive, solid state drive
Interface
SATA 6Gb/s
Processor
JMS562
Data Transfer Rate
6 Gbit/s
Dimensions & Weight
Width
14.8 cm
Depth
13.2 cm
Height
7 cm
Weight
532 g

Compatibility Information
Designed For
P/N: SVA12M5NA

Product Features

Efficient data transfer: The docking station provides data transfer rates of 6 Gbit/s through both USB 3. 0 and eSATA interfaces, ensuring quick access to files.

Hot-swap compatibility: Features hot-swap capability that enables users to connect and disconnect drives without needing to power down the device, promoting convenience during data management.

Advanced drive support: Supports a total of 2 storage devices simultaneously with compatibility for 2. 5-inch and 3. 5-inch hard drives, suitable for various storage needs.

Robust environmental performance: Designed to operate effectively within a temperature range of 5°C to 35°C and humidity levels from 20% to 80%, ensuring consistent performance in different conditions.
